Kaksoislukkoventtiili R3/4"
1bar, 70l/min, 350bar, 2,9:1
Partnumber:
VRDE3401
Package size:
1 kpl
Min. order quantity is:
1 kpl

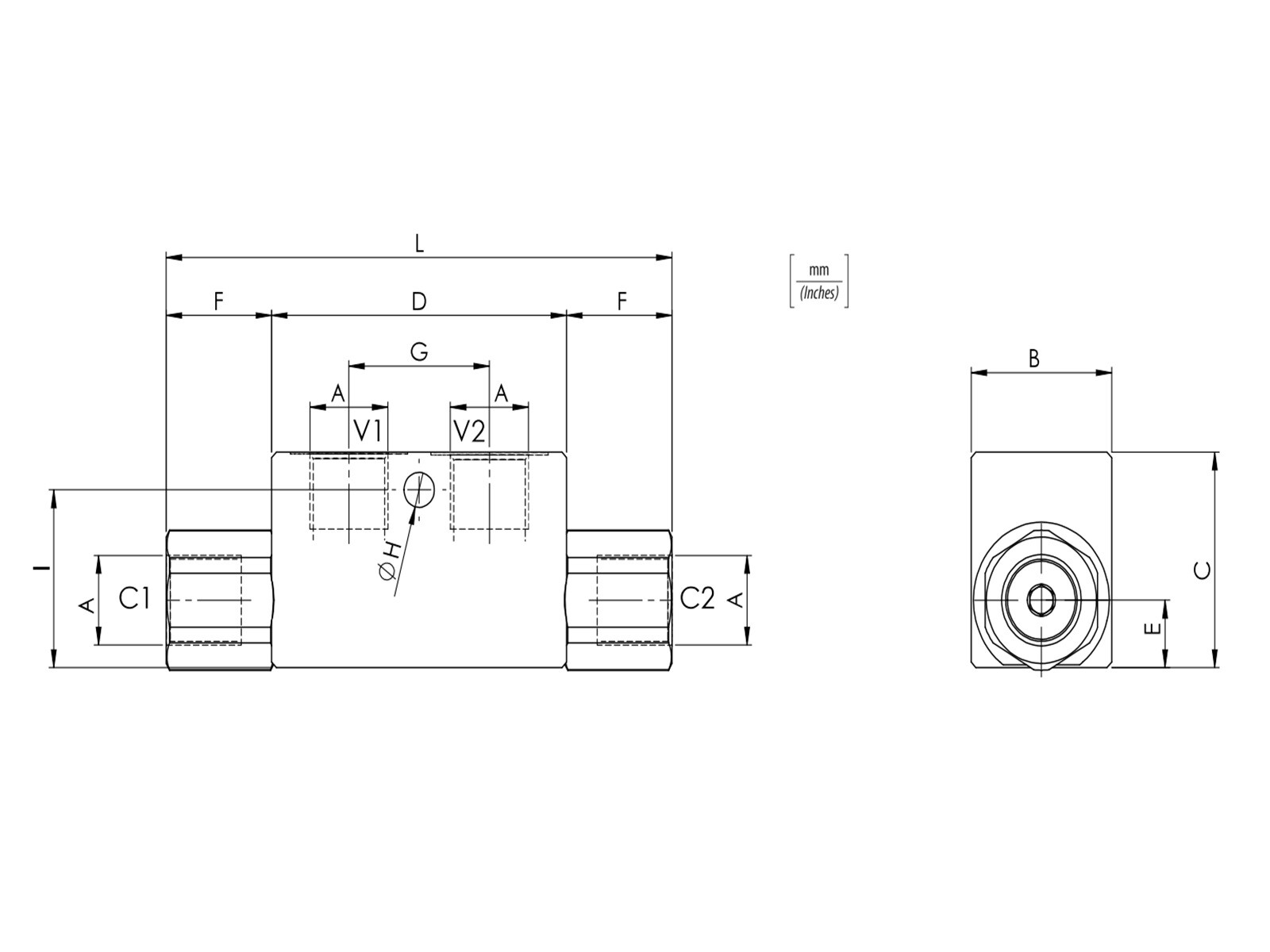

A
G 3/4 BSP
B
40 mm
Brand Name
Hydraspecma
C
60 mm
Contamination level max.
19/17/14 - ISO 4406
D
100 mm
Dimension F
46 mm
E
22,5 mm
Flow rate nominal LMin
70 lpm
G
50 mm
H
8,5 mm
I
50 mm
L
192 mm
Material
Steel
Max. Leakage
0.25 cm³/min
Model code
VRDE340
Oil viscocity recommended
15 - 250 cSt
Pilot ratio
1:2,9
Pressure max.
320 bar
Pressure opening
1 bar
Temperature ambient max.
+50 °C
Temperature ambient min.
-20 °C
Temperature max.
+80 °C
Temperature min.
-20 °C
Temperature working fluid max.
+80 °C
Thread
G 3/4 BSP
Type
Double
Package size
1 kpl
Barcode
411159
Gross weight
1,25 Kg
Net weight
1,25 Kg
Country of origin
IT
1bar, 70l/min, 350bar, 2,9:1
