T-jatkoliitin Push-on
Ø6mm
Partnumber:
RL2206
Package size:
50 pcs
Min. order quantity is:
1 pcs
Area of use
Compressed air, Vacuum
Brand Name
Metal Work

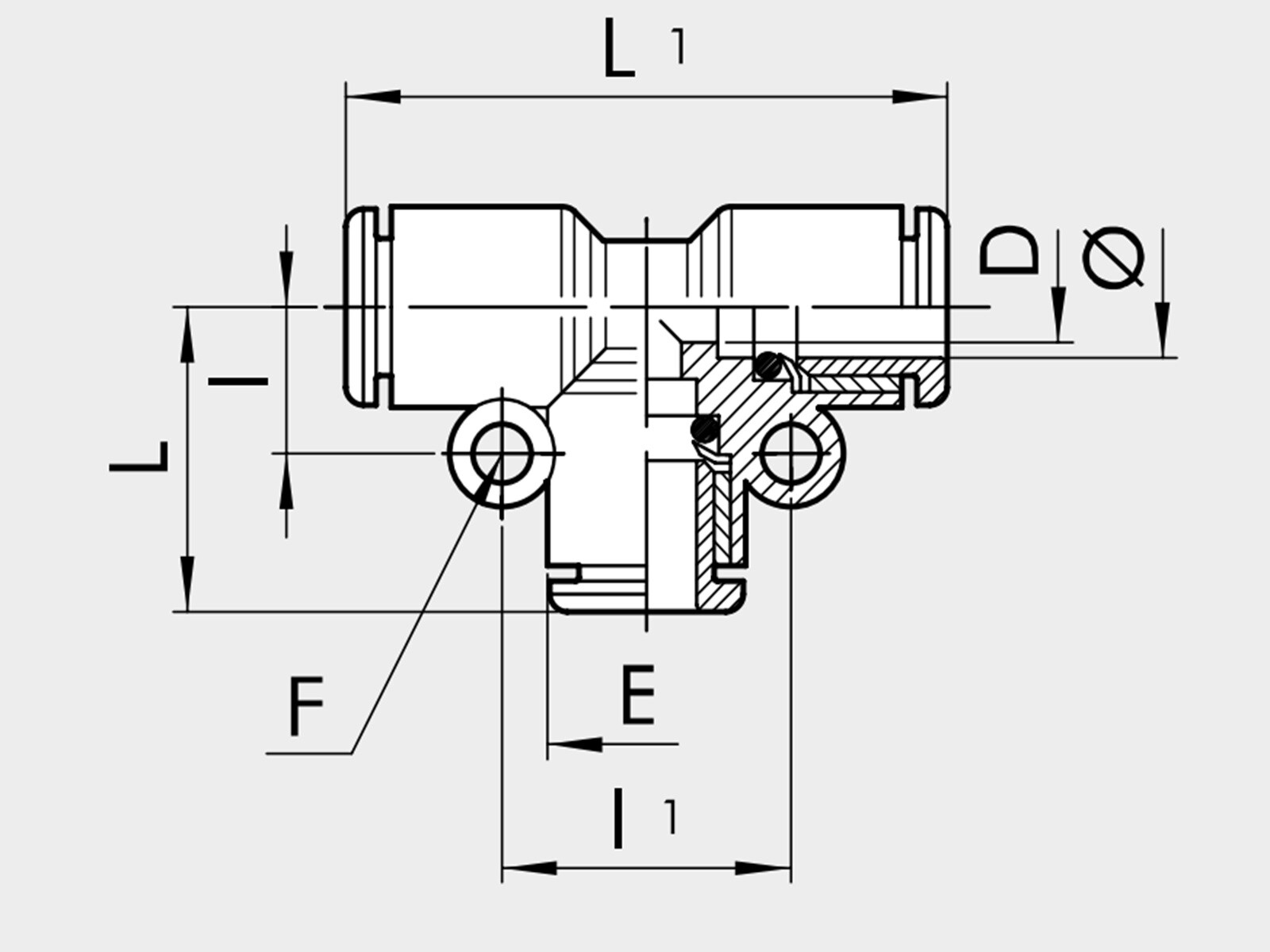

D
4,2 mm
Diameter pipe
6 mm
Diameter pipe 1
6 mm
E
11,3 mm
F
3,3 mm
I
8,2 mm
L
19 mm
L1
38 mm
Material
Technopolymer
Model code
2L22003
Pressure max.
12 bar
REACH compliant
Yes
RoHs compliant
Yes
Sealing material
NBR
Temperature max.
+60 °C
Temperature min.
-20 °C
Vacuum max.
0.99 bar
l1
16,4 mm
Ø
6 mm
Package size
50 pcs
Barcode
406611
Gross weight
0,011 Kg
Net weight
0,011 Kg
Country of origin
IT
Ø6mm
