Check valve (<-) - ø22L x 3/4" BSP - 1 bar - WD seal
Are supplied without cutting ring and nut - These parts must be ordered separately.
Standards: DIN 2353 / ISO 8434-1 and -4.
Material: Steel.
Surface: Galvanized and white passivated.
Mounting standard: DIN 3895-2
Allowable working temperature: -40°C to +120°C.
O-ring: NBR (Perbunan) Temperature range O-ring: -35°C to +100°C.
Partnumber:
RHV-22LEDX
Package size:
10 kpl
Min. order quantity is:
1 kpl
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227

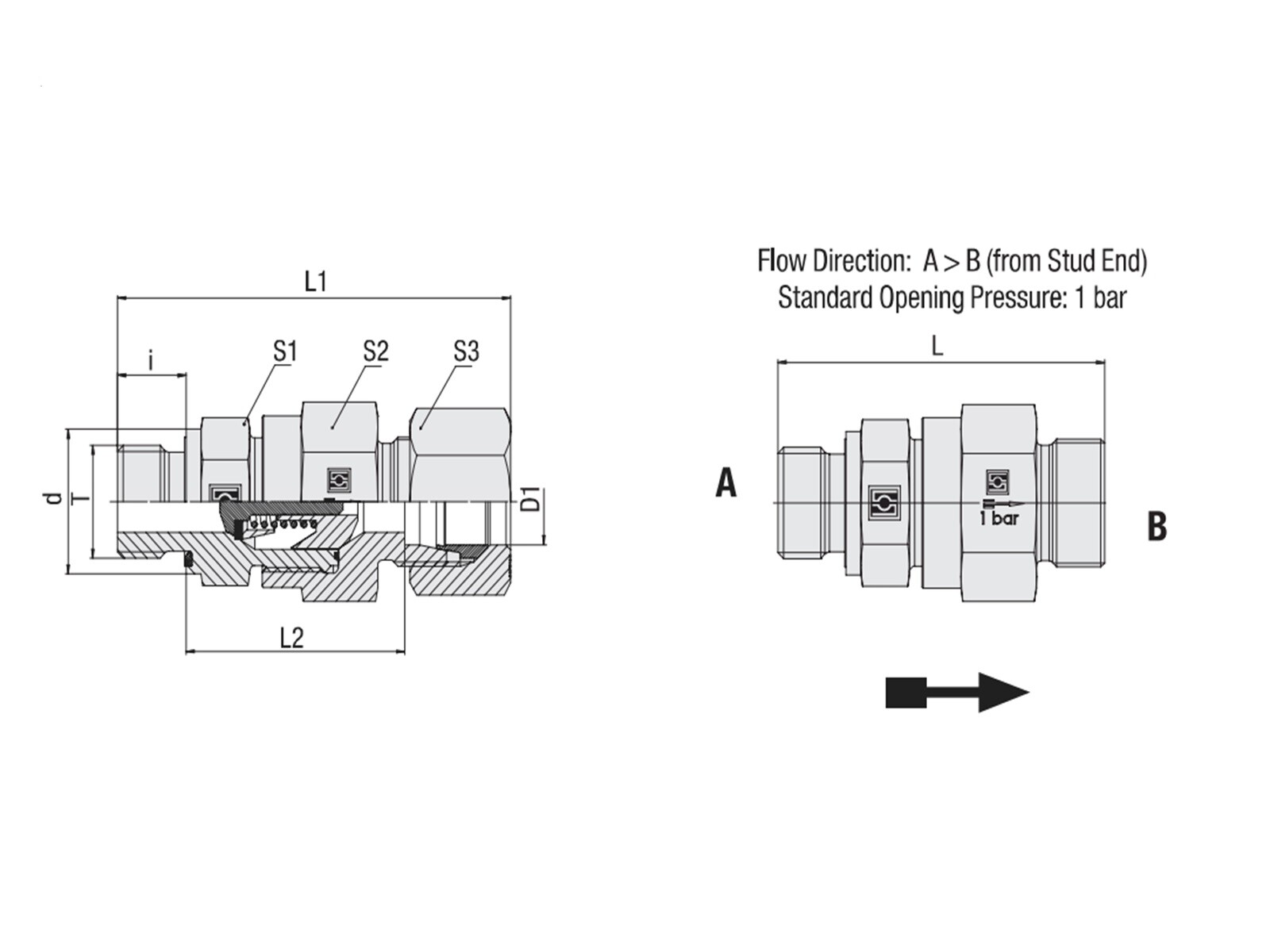

D1
22 mm
Diameter pipe
22 mm
Dimension i
16 mm
L
77 mm
L2
53,5 mm
Material
Steel
Model code
FI-RVV-22LR-WD-B-W3-1
Pressure max.
250 bar
Pressure opening
1 bar
S1
41 mm
S2
46 mm
Safety factor
4
Sealing material
NBR
Series
L
Surface treatment
Zinc-Nickel plated
T
G 3/4 BSP
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread
G 3/4 BSP
Torque tightening
180 Nm
d
31,9 mm
i
16 mm
Package size
10 kpl
Barcode
406566
Gross weight
0,45 Kg
Net weight
0,45 Kg
Country of origin
DEU
Intrastat code
73071110
Are supplied without cutting ring and nut - These parts must be ordered separately.
Standards: DIN 2353 / ISO 8434-1 and -4.
Material: Steel.
Surface: Galvanized and white passivated.
Mounting standard: DIN 3895-2
Allowable working temperature: -40°C to +120°C.
O-ring: NBR (Perbunan) Temperature range O-ring: -35°C to +100°C.
