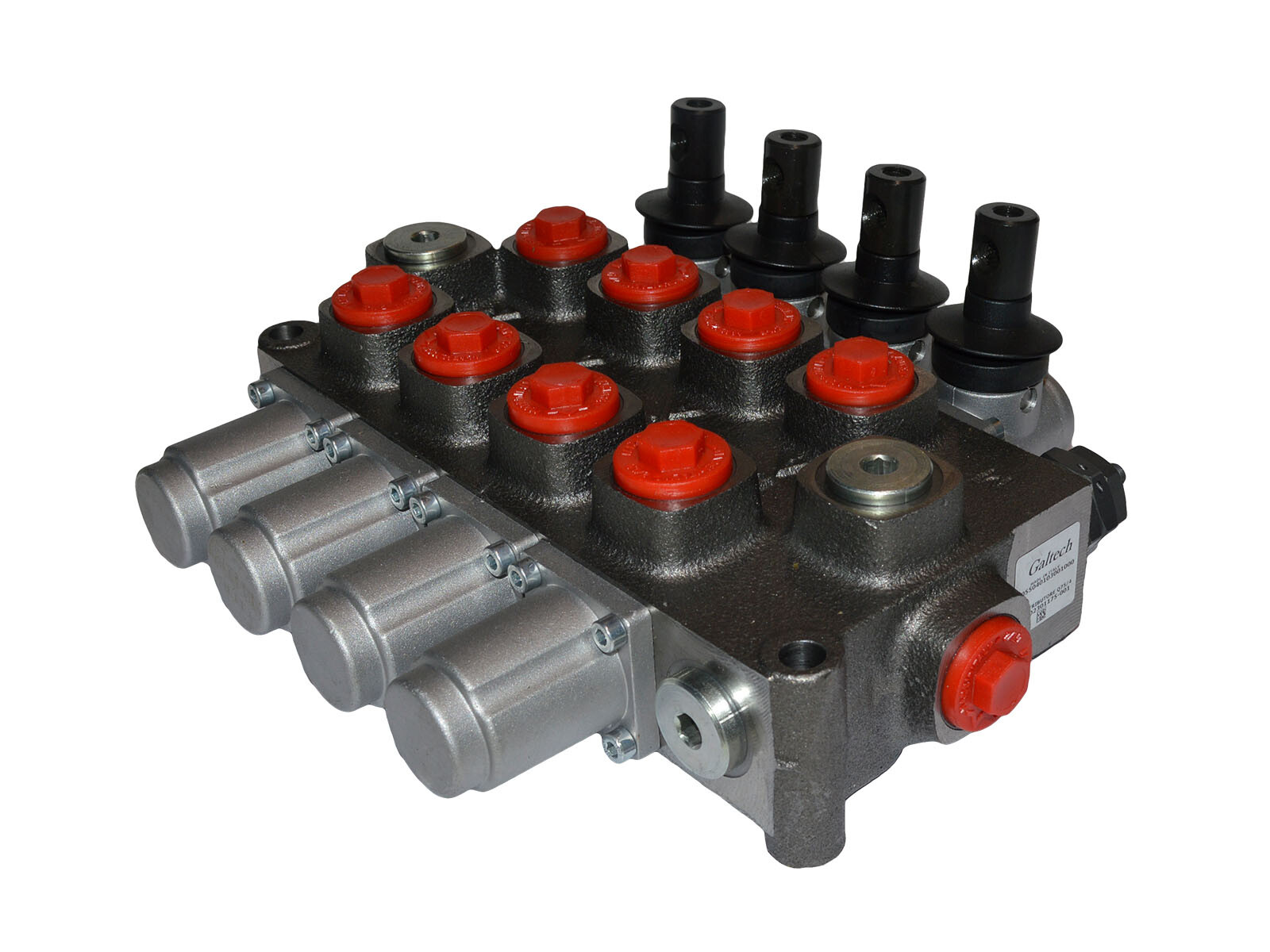

Q75M/4-F1S-4x103/A1/M1-F3D
4-section Q75 monoblock directional valve with built-in pressure relief valve. Manually activated
Spool function: 4 x double acting with port A and B closed in neutral position. Spring centered.
Open center port P to T in neutral position.
Partnumber:
Q754-1N-03030303
Package size:
1 kpl
Min. order quantity is:
1 kpl
Brand Name
Walvoil
Contamination level max.
16/14/12 - ISO 4406
Flow rate nominal LMin
75 lpm
Lever
Exclusive
Material
Cast iron
Model code
Q75M/4-F1S-4x103/A1/M1-F3D
Number of sections
4
Oil viscocity recommended
10 - 400 cSt
Port P1
G 1/2 BSP
Port P2
G 1/2 BSP
Port T1
G 3/4 BSP
Port T2
G 1/2 BSP
Pressure T max.
25 bar
Pressure carry-over
No
Pressure max.
270 bar
Pressure relief valve
Yes
Pressure setting max.
280 bar
Pressure setting min.
30 bar
Temperature max.
+80 °C
Temperature min.
-30 °C
Working ports
G 1/2 BSP
Package size
1 kpl
Barcode
406081
Gross weight
12,93 Kg
Net weight
12,93 Kg
Country of origin
ITA
Intrastat code
84812010
4-section Q75 monoblock directional valve with built-in pressure relief valve. Manually activated
Spool function: 4 x double acting with port A and B closed in neutral position. Spring centered.
Open center port P to T in neutral position.
