Oil - air cooler hydraulic drive ASA 0927 11cm³ Hydr.motor

Oil - air cooler hydraulic drive ASA 0927 11cm³ Hydr.motor

Oil - air cooler hydraulic drive ASA 0927 11cm³ Hydr.motor

Partnumber:
ASA0927AH11
Package size:
1 pcs
Min. order quantity is:
1 pcs
Connector ASA AUC BSP1" 1/4"
Partnumber: ILLZASA32G32
ASA Series Connector intermediate plate NG 40
Partnumber: ILLZASA40-40G12
Connector ASA AUC BSP1" 1/2"
Partnumber: ILLZASA40G40
Temperature switch BSP1/2" DIN-3P Set point 50C
Partnumber: ILLZTH4765K
Temperature switch BSP1/2" AMP Superseal 1.5 Set point 50C
Partnumber: ILLZTH5069K
Temperature switch BSP1/2" DIN-3P Set point 60C
Partnumber: ILLZTH6065K
Brand Name
ASA
By-pass valve
No

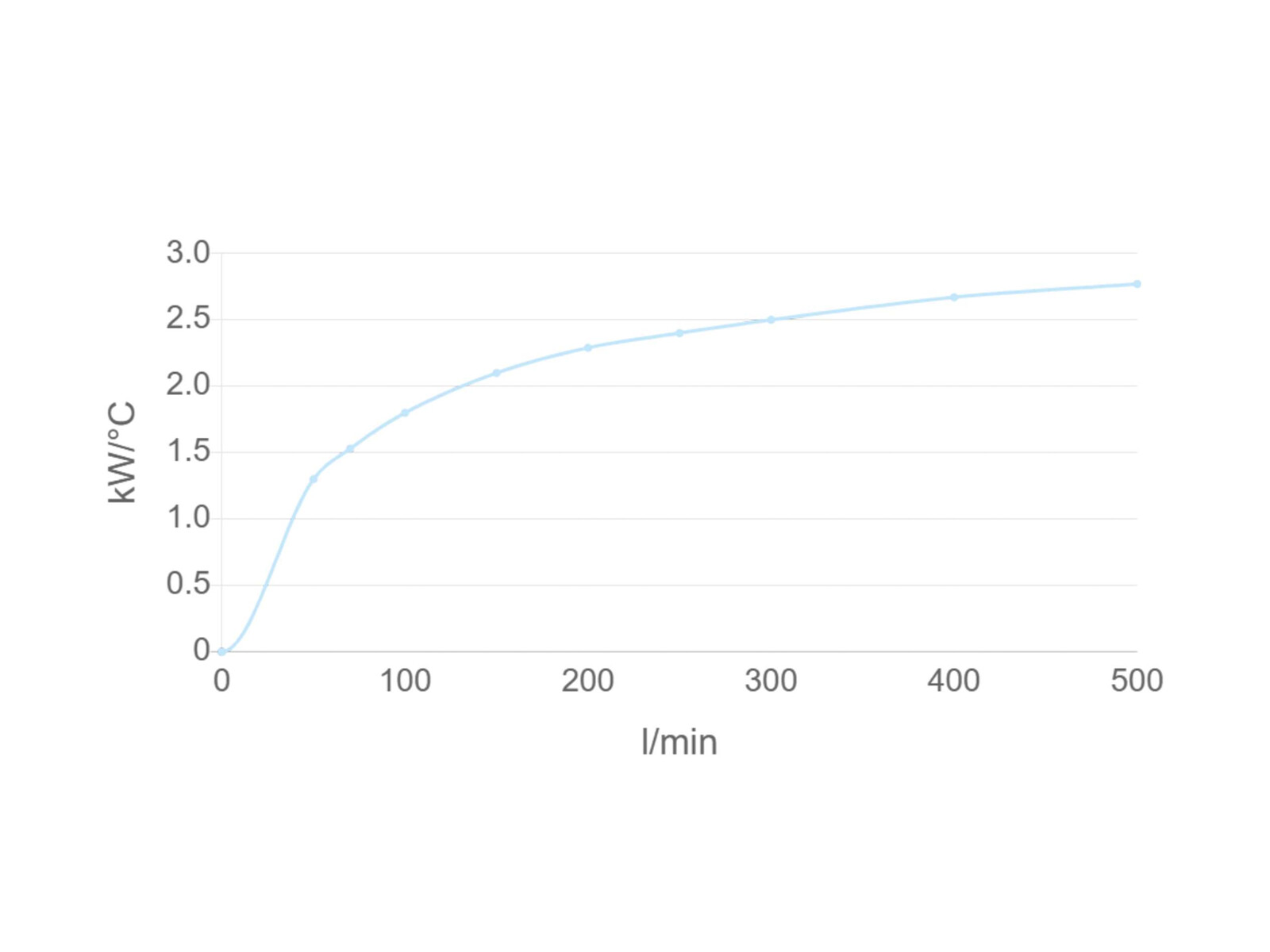

Cooling efficiency
2.75 kW/°C
Depth
475 mm
Flow rate nominal LMin
300 lpm
Height
1100 mm
Material
Aluminium
Model code
ASA0927AH11
Noise level
80 dB-A
Pressure max.
26 bar
Pressure static max.
26 bar
Temperature ambient max.
+80 °C
Temperature ambient min.
-20 °C
Temperature working fluid max.
+80 °C
Width
1162 mm
Package size
1 pcs
Barcode
497979
Gross weight
Kg
Net weight
125,00 Kg
Country of origin
aut
Intrastat code
84186900

Oil - air cooler hydraulic drive ASA 0927 11cm³ Hydr.motor

Product datasheet
