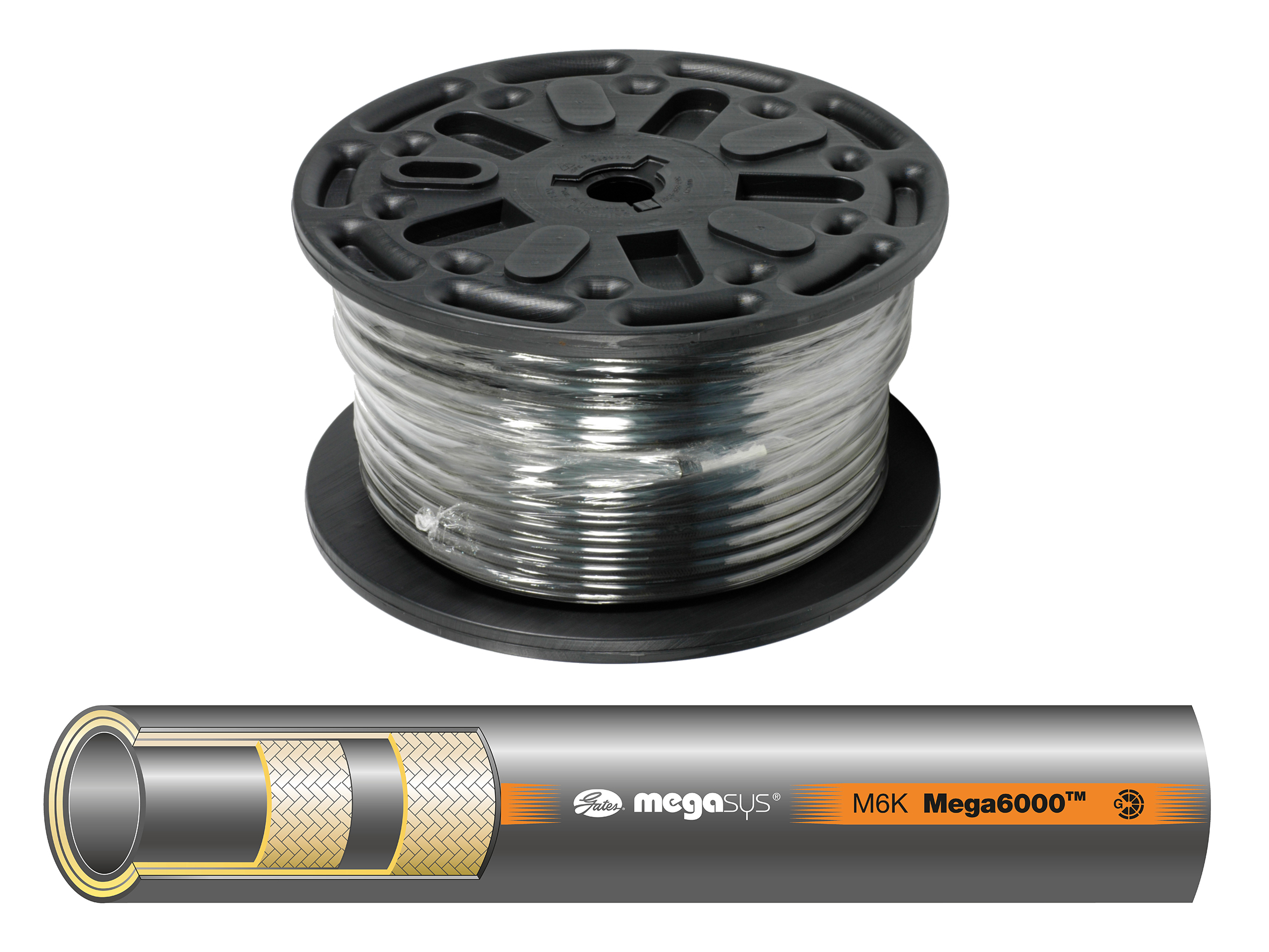

M6K hydraulic hoses

M6K hydraulic hoses

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Hose size Pressure max. Hose type Bend radius
04M6K 1/4" Hydraulic hose M6K - 420 bar - 2SC 1/4 " 420 bar M6K 50 mm
04M6K-RL175 1/4" Hydraulic hose M6K - 420 bar - 2SC - 175M reel 1/4 " 420 bar M6K 50 mm
Bend radius
50
Brand Name
Gates
Cover
NBR/PVC
Diameter inner
6.4
Diameter outer
14.9
Flameresistant
Yes
Hose size
1/4
Hose type
M6K
Hoseapprovals
ABS, BV, DNV, LR, MSHA
Pressure burst min.
1680
Pressure max.
420
REACH compliant
Yes
Reinforcement
2 layer high tensile steel wire braid
RoHs compliant
Yes
Standard EN
EN 857 2SC
Standard ISO
ISO 18752 TYPE B
Temperature intermittent max.
+121
Temperature max.
+100
Temperature min.
-40
Tube
NBR (Nitrile)
