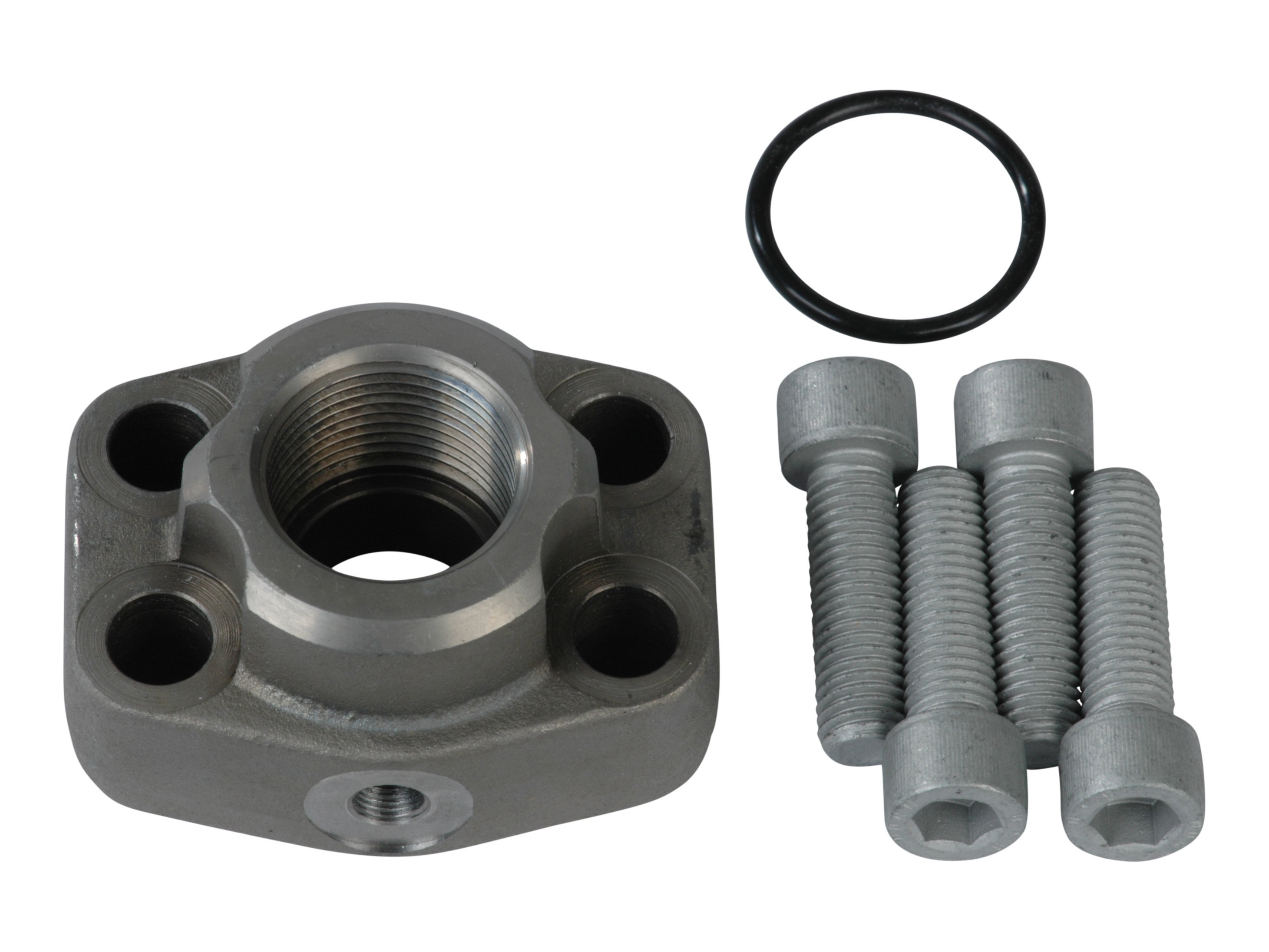

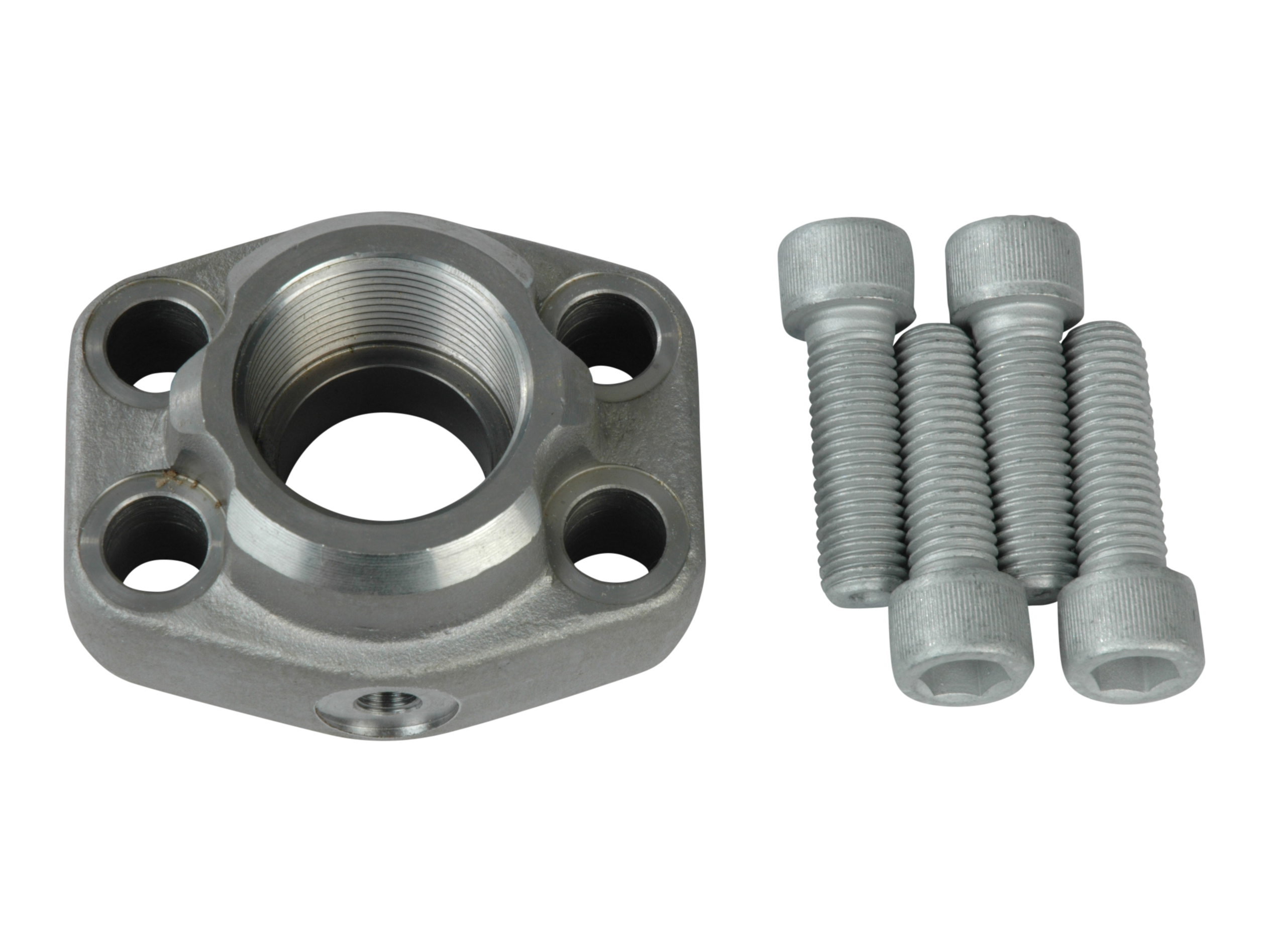

Threaded flange 0° SAE 6000 PSI x BSP female with side port, O-ring and MM bolts - AFS4-GM

Threaded flange 1" SAE6000 x 1" BSP - 1/8" test - complete

Threaded flange 1.1/4" SAE6000 x 1.1/4" BSP - 1/8" test - co

Threaded flange 1.1/2" SAE6000 x 1.1/2" BSP - 1/4" test

Threaded flange 2" SAE6000 x 2" BSP - 1/4" test - complete

SELECT VARIANT

Partnumber	Description	Flange SAE/DIN	Flange	Gevind indvendig
AFS403G-G18M	Threaded flange 1" SAE6000 x 1" BSP - 1/8" test - complete	6000 PSI	1 "	G 1, G 1/8 BSP
AFS404G-G18M	Threaded flange 1.1/4" SAE6000 x 1.1/4" BSP - 1/8" test - co	6000 PSI	1.1/4 "	G 1.1/4, G 1/8 BSP
AFS405G-G14M	Threaded flange 1.1/2" SAE6000 x 1.1/2" BSP - 1/4" test	6000 PSI	1.1/2 "	G 1.1/2, G 1/4 BSP
AFS406G-G14M	Threaded flange 2" SAE6000 x 2" BSP - 1/4" test - complete	6000 PSI	2 "	G 1/4, G 2 BSP

Antal bolte

Flange SAE/DIN

6000 PSI

Korrosions resistens

480 hours salt spray DIN EN 9227

Materiale

Steel

Mærke navn

Havit

Overfladebehandling

Zinc-Nickel plated

Pakningsmateriale

NBR

Shore

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Temperatur maks.

+90

Temperatur min.

-40

Tryk maks.

420

Vinkel
