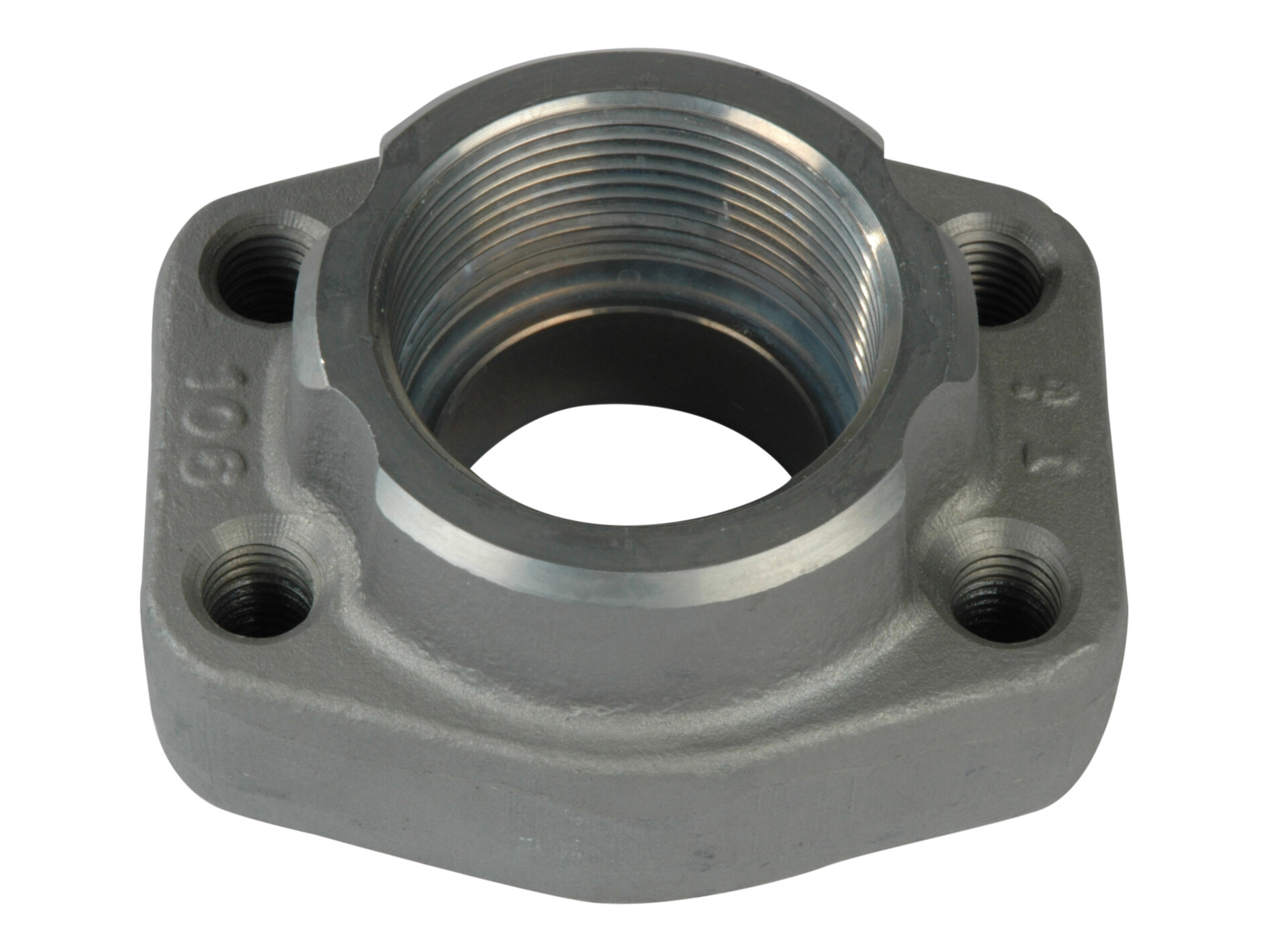

Threaded flange 0° SAE 3000 PSI x BSP female - GFS-G / 8315

SELECT VARIANT

Partnumber	Description	Flange	Thread inner	Pressure max.	O-ring
GFS080G	Threaded flange 1/2" SAE3000 x 1/2" BSP	1/2 "	G 1/2 BSP	350 bar	18.64X3.53 mm
GFS100G	Threaded flange 3/4" SAE3000 x 3/4" BSP	3/4 "	G 3/4 BSP	350 bar	24.99X3.53 mm
GFS102G	Threaded flange 1" SAE3000 x 1" BSP	1 "	G 1 BSP	320 bar	32.93X3.53 mm
GFS104G	Threaded flange 1.1/4" SAE3000 x 1.1/4" BSP	1.1/4 "	G 1.1/4 BSP	280 bar	37.69X3.53 mm
GFS106G	Threaded flange 1.1/2" SAE3000 x 1.1/2" BSP	1.1/2 "	G 1.1/2 BSP	210 bar	47.22X3.53 mm
GFS108G	Threaded flange 2" SAE3000 x 2" BSP	2 "	G 2 BSP	210 bar	56.75X3.53 mm
GFS110G	Threaded flange 2.1/2" SAE3000 x 2.1/2" BSP	2.1/2 "	G 2.1/2 BSP	175 bar	69.44X3.53 mm
GFS112G	Threaded flange 3" SAE3000 x 3" BSP	3 "	G 3 BSP	160 bar	85.32X3.53 mm

Angle

Brand Name

Havit

Corrosion resistance

480 hours salt spray DIN EN 9227

Flange SAE/DIN

3000 PSI

Material

Steel

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Surface treatment

Zinc-Nickel plated

Temperature max.

+90

Temperature min.

-40
