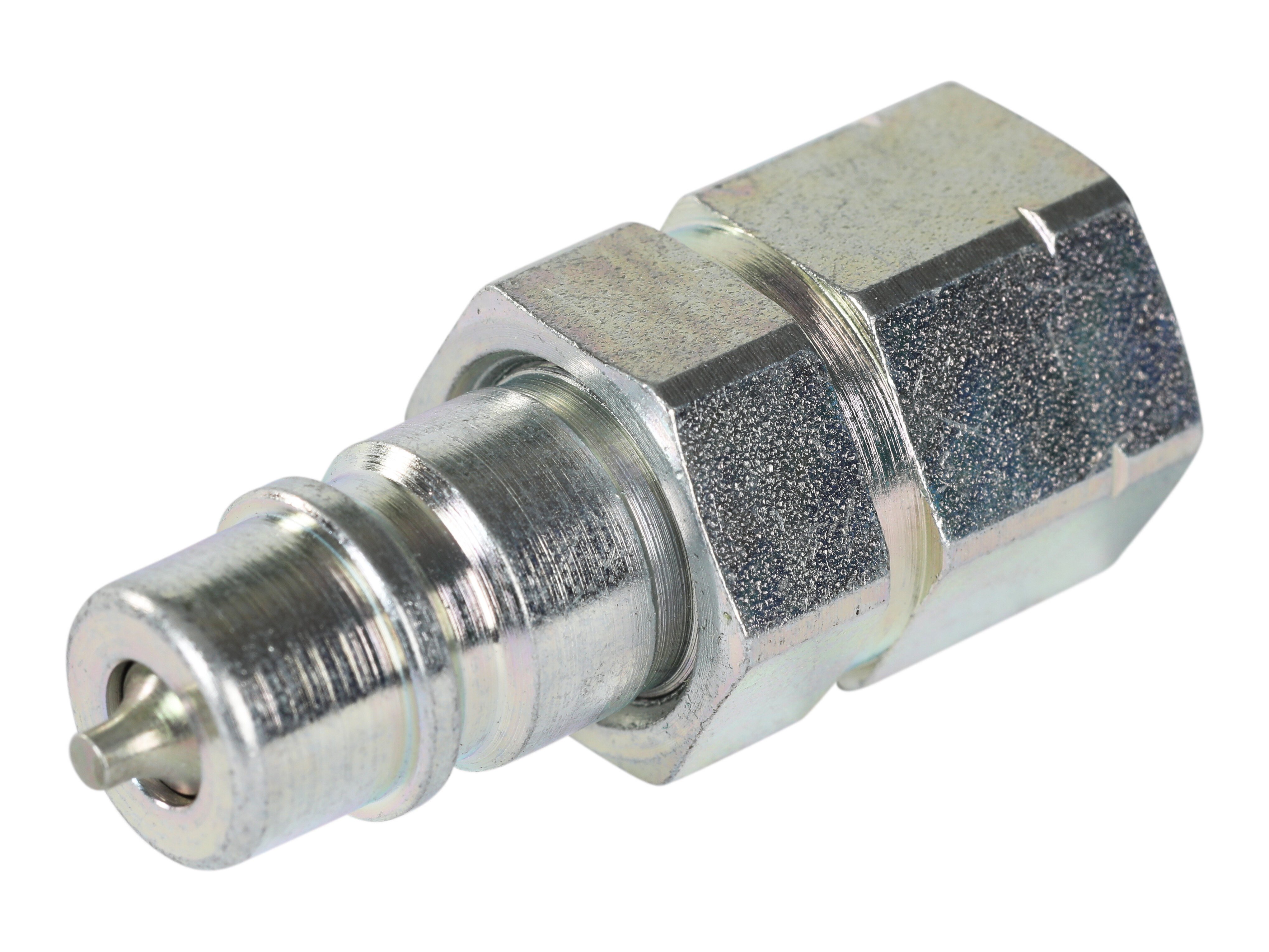

Coupling male HP (ISO-A) - DN06 - 1/4"BSP female
Push-pull: Double acting ball-lock on female part.
Emergency break-away when panel mounted and connected to a hose..
Varenummer:
HP04-2-IGF04
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Stauff
Dimension C
44 mm
Dimension E
G 1/4 BSP
Dimension H
12 mm
Dimension Y
19 mm
Flow rate nominal LMin
20 lpm
ISO size
6.3
Model code
HP04-2-IGF04
Pressure max.
250 bar
Sealing material
NBR
Size
1/4 "
Standard ISO
ISO 7241-1-A
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread inner
G 1/4 BSP
Pakke str.
0 pcs
Stregkode
5704295235196
Brutto vægt
0,06 Kg
Netto vægt
0,06 Kg
Oprindelsesland
DEU
Intrastat varekode
84812010
Push-pull: Double acting ball-lock on female part.
Emergency break-away when panel mounted and connected to a hose..
