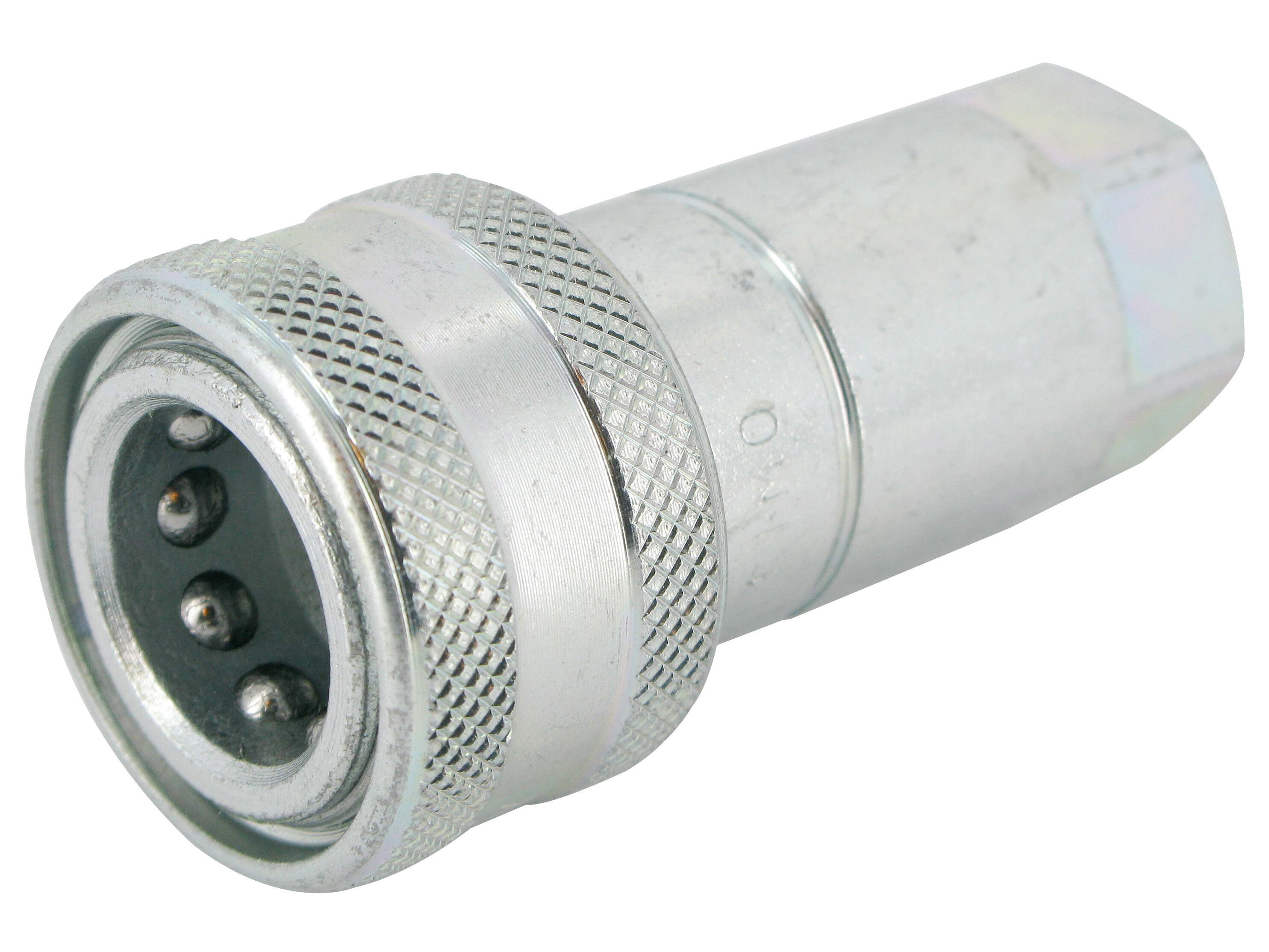

Coupling female HNV (ISO-B) - DN06 - 1/4"BSP
Faster quick coupler part
Connection system: pulling back the sleeve.
Disconnection system: pulling back the sleeve.
Shut-off system: poppet valve.
Connectability: without pressure.
Disconnection under pressure: not allowed.
Partnumber:
HNV14GASF
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Faster
Corrosion resistance
500 hours salt spray ISO 9227
DN
6.3 mm
Dimension A
G 1/4 BSP
Dimension B
56 mm
Dimension D
28 mm
Dimension X
19 mm
Flow rate nominal LMin
17 lpm
ISO size
6.3
Material
Steel
Model code
HNV 14 GAS F
Pressure max.
450 bar
Sealing material
NBR
Size
1/4 "
Standard ISO
ISO 7241-1-B
Surface treatment
Zinc coating (CR III)
Temperature max.
+125 °C
Temperature min.
-25 °C
Thread inner
G 1/4 BSP
Pakke str.
0 pcs
Stregkode
5704334230489
Brutto vægt
0,12 Kg
Netto vægt
0,12 Kg
Oprindelsesland
ITA
Intrastat varekode
84812010
Faster quick coupler part
Connection system: pulling back the sleeve.
Disconnection system: pulling back the sleeve.
Shut-off system: poppet valve.
Connectability: without pressure.
Disconnection under pressure: not allowed.
