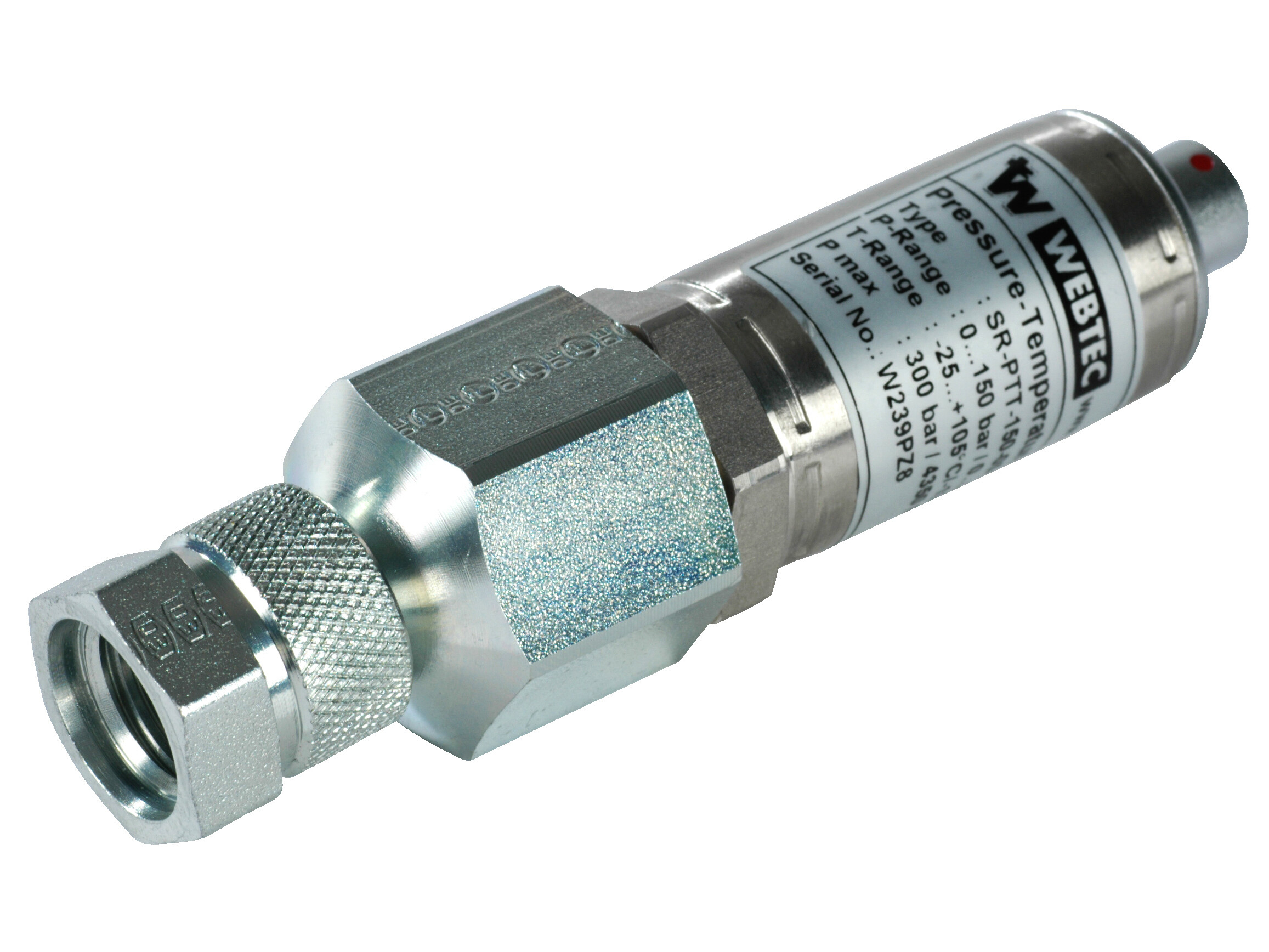

Pressure/temp.sensor 0-150 bar SR-PTT-150-05-0C
The PT /2 pressure transmitters can be used with all hydraulic testers of the HPM series, due to their 5-pin connection. The pressure transmitters are a reliable and flexible solution for the HPM series because of their sturdy stainless-steel design, the quick response times (< 1 ms) and the high accuracy (± 0,25% FS* typ.) with automatic sensor recognition. *FS: Full scale.
Artikelnummer:
FT9783-150
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Gänga metrisk
M16x2
Matarspänning max.
15 V
Matarspänning min.
7 V
Märke namn
Webtec
Sensor typ
Analog
Skyddsklass
IP 54
Temperatur max.
+105 °C
Temperatur min.
-25 °C
Temperatur omgivning max.
+85 °C
Temperatur omgivning min.
-25 °C
Tillverkningsmaterial
Stainless steel
Tryck max.
320 bar
Tryck spräng min.
450 bar
Tryckmätning
0-150 Bar
Utgående signal max.
3 V
Utgående signal min.
0 V
Pakkauskoko
0 pcs
Viivakoodi
5704334270119
Bruttopaino
0,32 Kg
Nettopaino
0,32 Kg
Alkuperämaa
Intrastat-koodi
90261021
The PT /2 pressure transmitters can be used with all hydraulic testers of the HPM series, due to their 5-pin connection. The pressure transmitters are a reliable and flexible solution for the HPM series because of their sturdy stainless-steel design, the quick response times (< 1 ms) and the high accuracy (± 0,25% FS* typ.) with automatic sensor recognition. *FS: Full scale.
