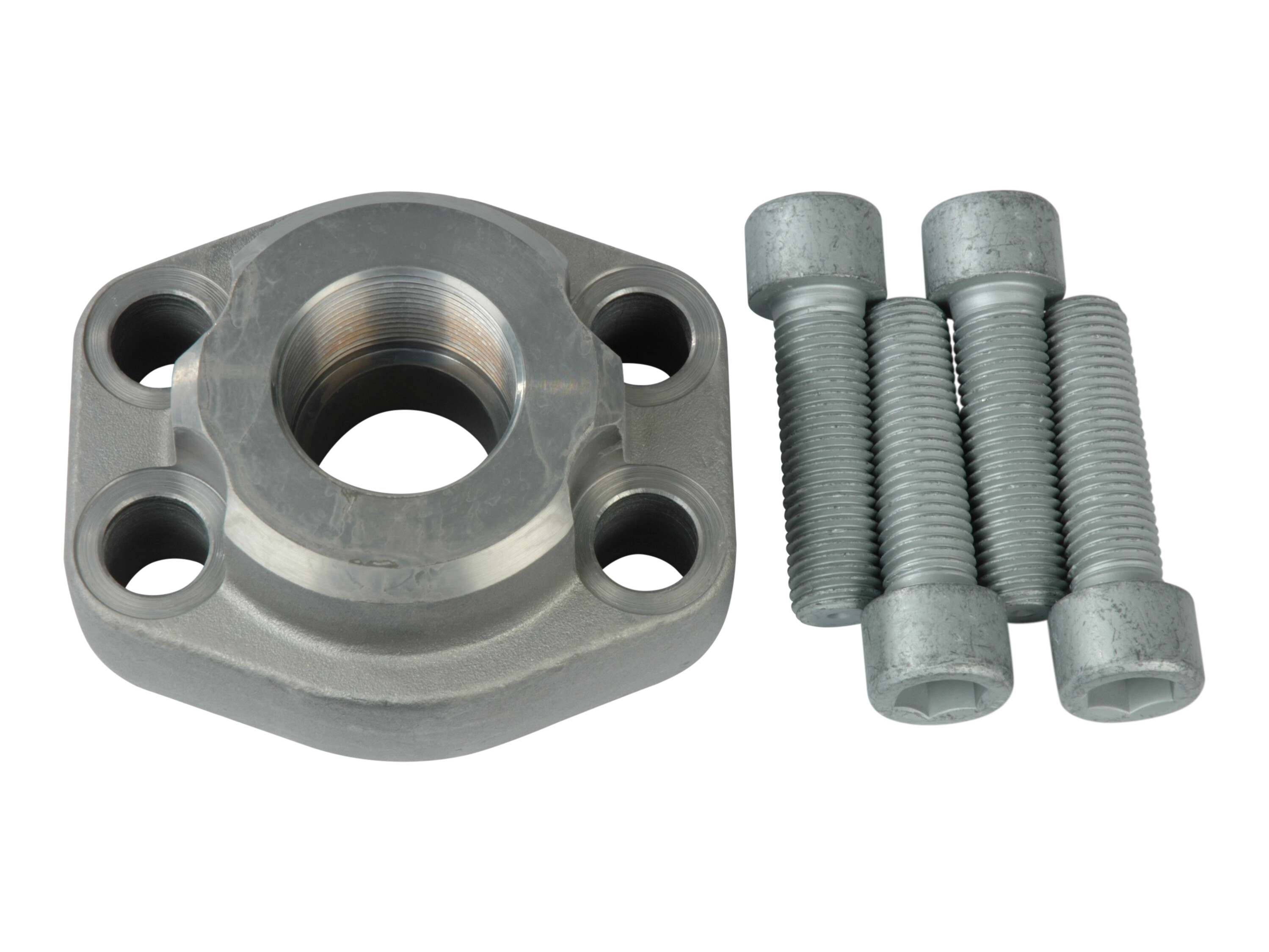

Threaded flange 2" SAE6000 x 1.1/2" BSP - complete

Threaded flange 2" SAE6000 x 1.1/2" BSP - complete

Partnumber:

AFS406G-112M

Package size:

0 pcs

Min. order quantity is:

1 pcs

Reservdelar (1)

O-ring 90S

Partnumber: 56.75X3.53S

Specifications
Dimensions and shipping

Angle

0 °

Bolt dimension

M20x70 mm

Brand Name

Havit

Corrosion resistance

480 hours salt spray DIN EN 9227

Diameter flange

79.5 mm

Dimension C

96.8 mm

Dimension E

44.5 mm

Flange

2 "

Flange SAE/DIN

6000 PSI

Material

Steel

Number of bolts

O-ring

56.75X3.53 mm

Pressure max.

420 bar

Sealing material

NBR

Shore

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Surface treatment

Zinc-Nickel plated

Temperature max.

+90 °C

Temperature min.

-40 °C

Thread inner

G 1.1/2 BSP

Package size

0 pcs

Barcode

5704295921600

Gross weight

3,80 Kg

Net weight

3,80 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Threaded flange 2" SAE6000 x 1.1/2" BSP - complete
