SD18/6-P(KG3-120)/18L/18L/18L/ 18L/18L/18L/AET directional v

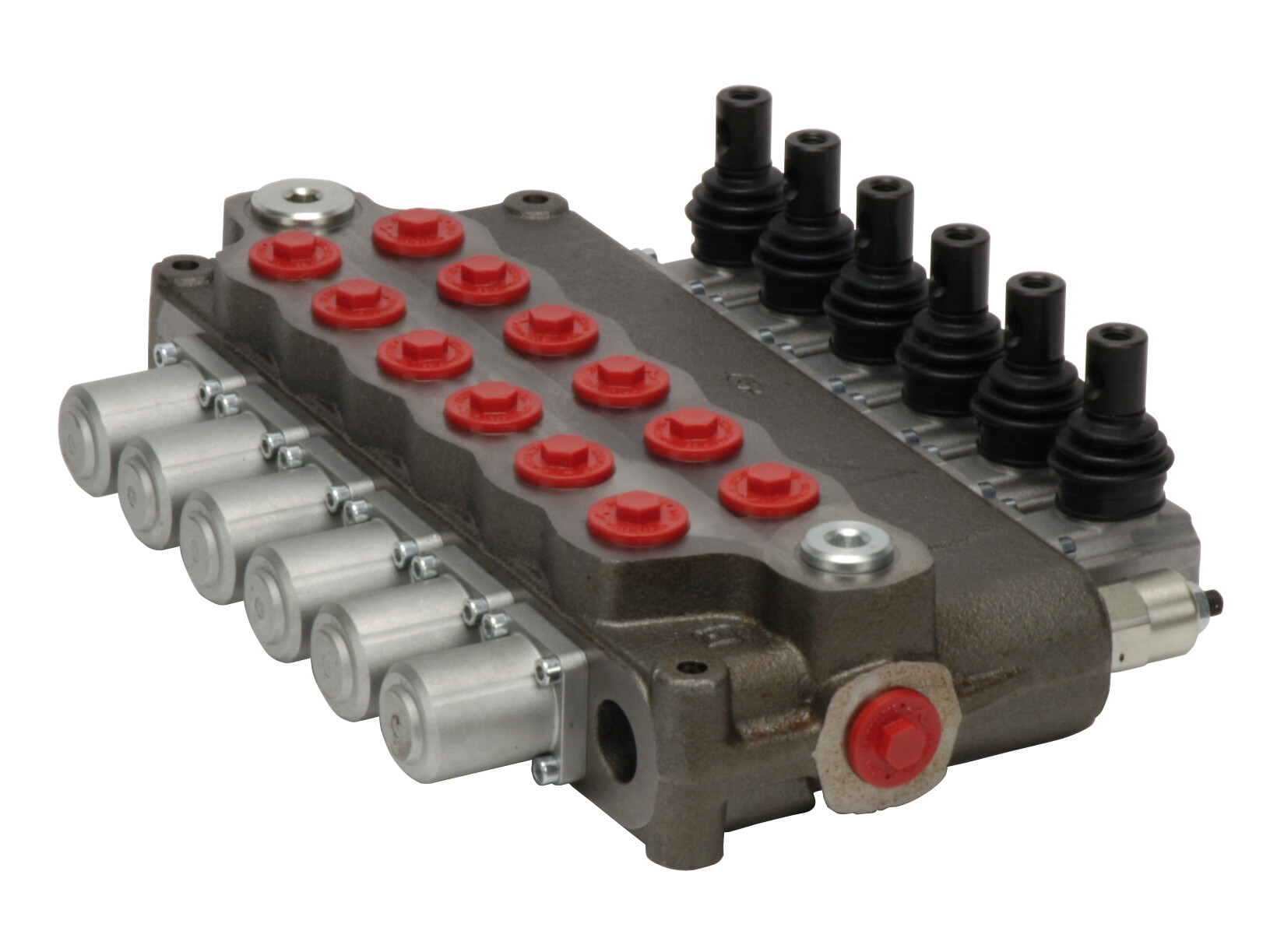

6-section SD18 monoblock directional valve with built-in pressure relief valve and 6 spools in parallel. Manually activated with handlevers.
Spool function: 6 x double acting with port A and B closed in neutral position. Spring centered.
Open center P to T in neutral position.
AET = Prepared for pressure carry-over (port plugged).
Artikelnummer:
106611001
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Antal sektioner
6
Arbejdsporte
G 3/4 BSP
Flow Nominel
160 lpm
Forureningsgrad maks.
-/19/16 - ISO 4406
Håndtag
Exclusive
Materiale
Cast iron
Model kode
SD18/6-P(KG3-120)/18L/18L/18L/18L/18L/18L/AET
Mærke navn
Walvoil
Olieviskositet anbefalet
12 - 400 cSt
Port P1
G 3/4 BSP
Port P2
G 3/4 BSP
Port T1
G 1 BSP
Port T2
G 1 BSP
Tryk T maks.
25 bar
Tryk maks.
250 bar
Trykbegrænsningsventil
Yes
Trykindstilling maks.
200 bar
Trykindstilling min.
63 bar
Trykvidereføring
No
Package size
0 pcs
Barcode
5704334153054
Gross weight
41,15 Kg
Net weight
41,15 Kg
Country of origin
ITA
Intrastat code
84812010
6-section SD18 monoblock directional valve with built-in pressure relief valve and 6 spools in parallel. Manually activated with handlevers.
Spool function: 6 x double acting with port A and B closed in neutral position. Spring centered.
Open center P to T in neutral position.
AET = Prepared for pressure carry-over (port plugged).
