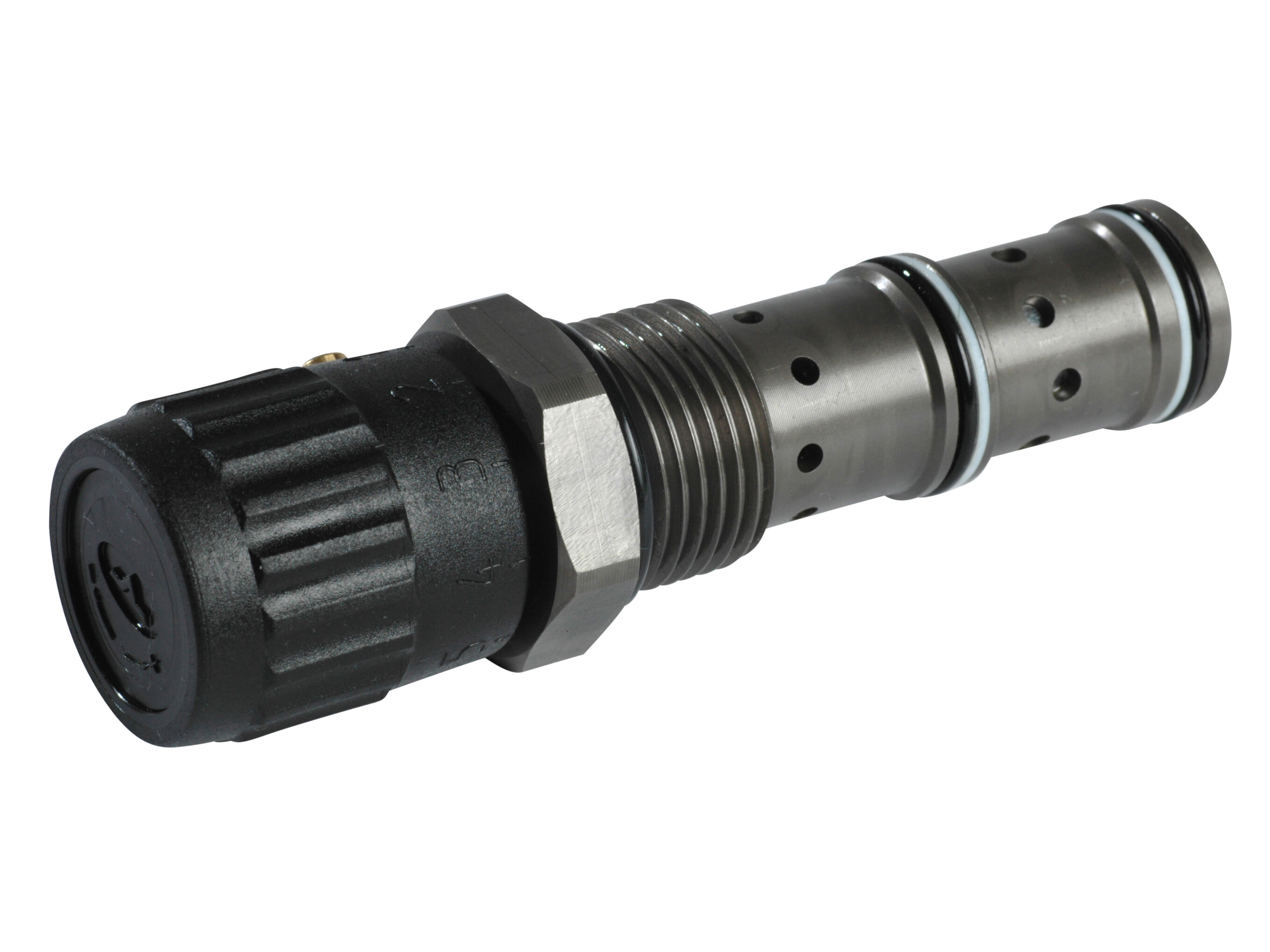

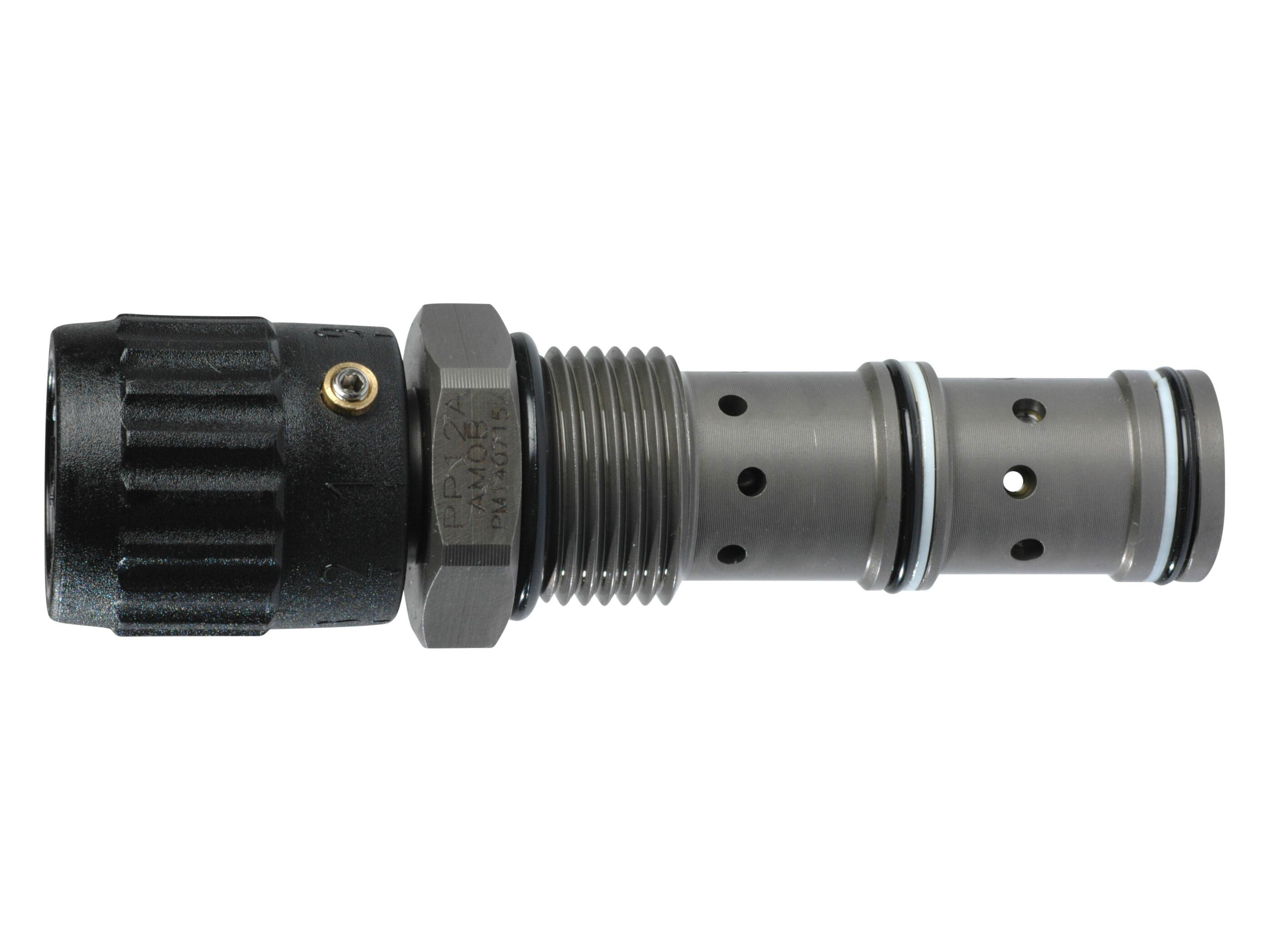

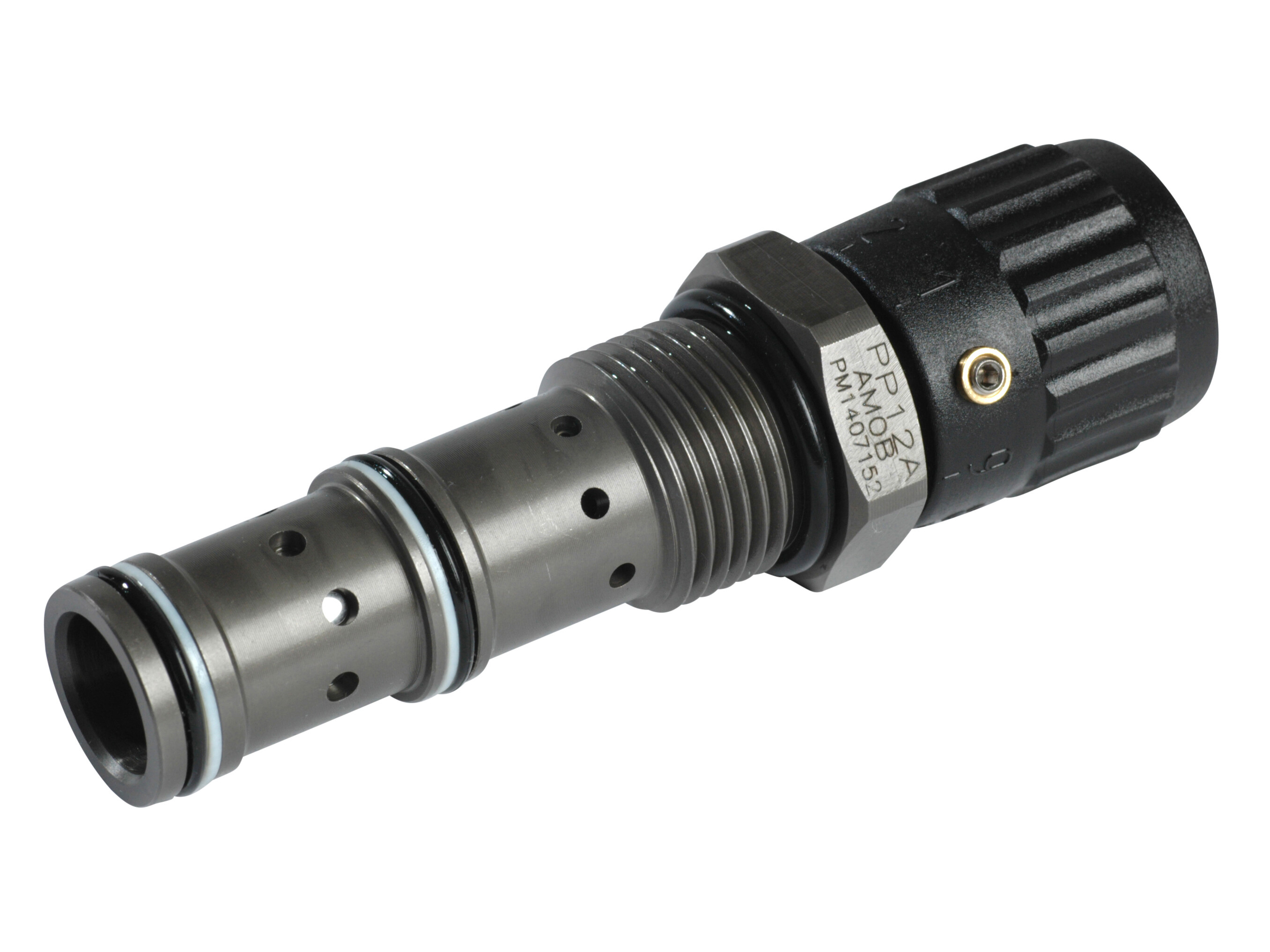

SDE060/PPAL1 press.comp flowcontrol valve, hand wheel

SDE060/PPAL1 press.comp flowcontrol valve, hand wheel

SDE060/PPAL1 press.comp flowcontrol valve, hand wheel setting type

Partnumber:

0PP12002000

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Brand Name

Walvoil

Flow max. regulated

55 lpm

Flow min. regulated

0 lpm

Flow rate nominal LMin

60 lpm

Manual operated

Hand-wheel

Model code

SDE060/PPAL1-[PP12A/AM0B]

Pressure compensated

Yes

Pressure max.

315 bar

Temperature ambient max.

+50 °C

Temperature ambient min.

-20 °C

Temperature working fluid max.

+80 °C

Type

Hand-wheel

Package size

0 pcs

Barcode

5704334263869

Gross weight

0,27 Kg

Net weight

0,27 Kg

Country of origin

ITA

Intrastat code

84812010

Product information

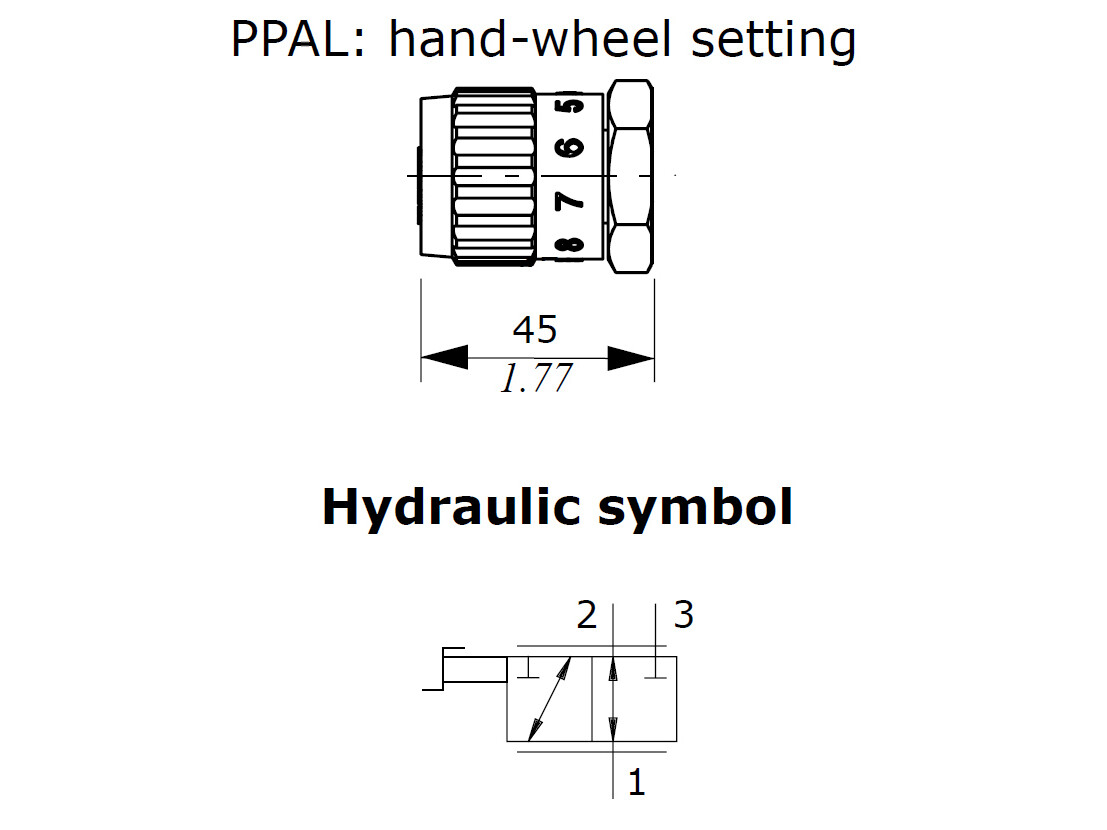

Measure sketch

SDE060/PPAL1 press.comp flowcontrol valve, hand wheel setting type
