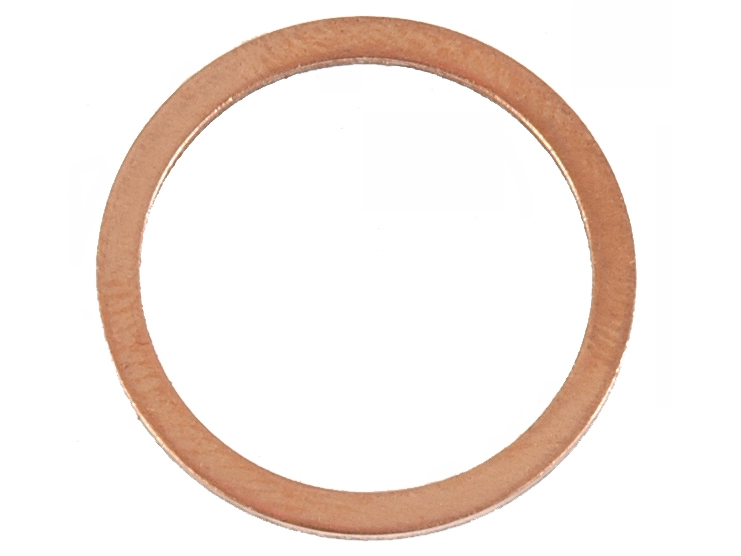

Copper rings

Copper rings

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter inner Diameter outer Fits to BSP thread FitsTo UNF thread
KR-05X09X1.0 Copper washer M5 5 mm 9 mm
KR-06X10X1.0 Copper washer M6 6 mm 10 mm
KR-06X12X1.0 Copper washer M6 6 mm 12 mm
KR-08X13X1.0 Copper washer M8 8 mm 13 mm
KR-10X14X1.5 Copper washer M10 10 mm 14 mm
KR-12X16X1.0 Copper washer M12 12 mm 16 mm
KR-12X16X1.5 Copper washer M12 12 mm 16 mm
KR-13X17X1.5 Copper washer M12 13 mm 17 mm G 1/4 1/2-20
KR-13X18X1.5 Copper washer M12 13 mm 18 mm G 1/4 1/2-20
KR-13X18X2.0 Copper ring M12 13 mm 18 mm G 1/4 1/2-20
KR-13X25X2.0 Copper washer 13X25X2.0 13 mm 25 mm 1/2-20
KR-14X17X1.5 Copper washer 1/4 14 mm 17 mm G 1/4
KR-14X18X1.5 Copper washer 1/4 14 mm 18 mm G 1/4
KR-14X19X1.0 Copper washer 1/4 14 mm 19 mm G 1/4
KR-14X20X1.5 Copper washer 1/4 14 mm 20 mm G 1/4
KR-15X19X1.5 Copper washer 9/16 15 mm 19 mm 9/16-18
KR-16X22X1.5 Copper washer M16 16 mm 22 mm 5/8-18
KR-17X21X1.5 Copper washer 3/8 17 mm 21 mm G 3/8
KR-17X22X1.5 Copper washer 3/8 17 mm 22 mm G 3/8
KR-17X23X1.5 Copper washer 3/8 17 mm 23 mm G 3/8
KR-18X23X1.5 Copper washer M18 18 mm 23 mm
KR-18X24X1.5 Copper ringe M18 KR18x24x1.5 18 mm 24 mm
KR-20X24X1.5 Copper washer M20 20 mm 24 mm 3/4-16
KR-20X24X2.0 Copper washer M20 20 mm 24 mm 3/4-16
KR-20X25X1.5 Copper washer M20 20 mm 25 mm 3/4-16
KR-21X26X1.0 Copper washer 1/2 21 mm 26 mm G 1/2 13/16-16
KR-21X26X1.5 KR-21X26X1.5 21 mm 26 mm G 1/2 13/16-16
KR-21X27X2.0 Copper washer 1/2 21 mm 27 mm G 1/2 13/16-16
KR-21X28.5X3 Copper washer 1/2 21 mm 28 mm G 1/2 13/16-16
KR-22X27X1.0 Copper washer M22 22 mm 27 mm
KR-22X27X1.5 Copper washer M22 22 mm 27 mm
KR-22X29X1.5 Copper washer M22 22 mm 29 mm
KR-24X30X1.5 Copper washer M24 24 mm 30 mm
KR-26X32X1.5 Copper washer M26 26 mm 32 mm 1-12
KR-26X32X2.0 Copper washer M26 26 mm 32 mm 1-12
KR-27X32X2.0 Copper washer 3/4 27 mm 32 mm G 3/4
KR-30X36X2.0 Copper washer M30 30 mm 36 mm
KR-32X38X2.0 Copper washer rg1 32 mm 38 mm G 1 1.1/4-12
KR-33X39X2.0 Copper washer rg1 33 mm 39 mm G 1
KR-36X42X1.5 Copper washer M36 36 mm 42 mm
KR-42X49X2.0 Copper washer M42 - 1.1/4 42 mm 49 mm G 1.1/4
KR-45X52X2.0 Copper washer M45 45 mm 52 mm
KR-48X55X3.0 Copper washer 1.1/2 48 mm 55 mm G 1.1/2
KR-50X57X2.0 Copper washer M50 50 mm 57 mm
KR-60X68X2.5 Copper washer 2 60 mm 68 mm G 2
KR-69X82X3.0 Copper washer 69 mm 82 mm
Brand Name
Hydraspecma
Material
Copper
Standard DIN
DIN 7603A
Temperature max.
+300
Temperature min.
-100
