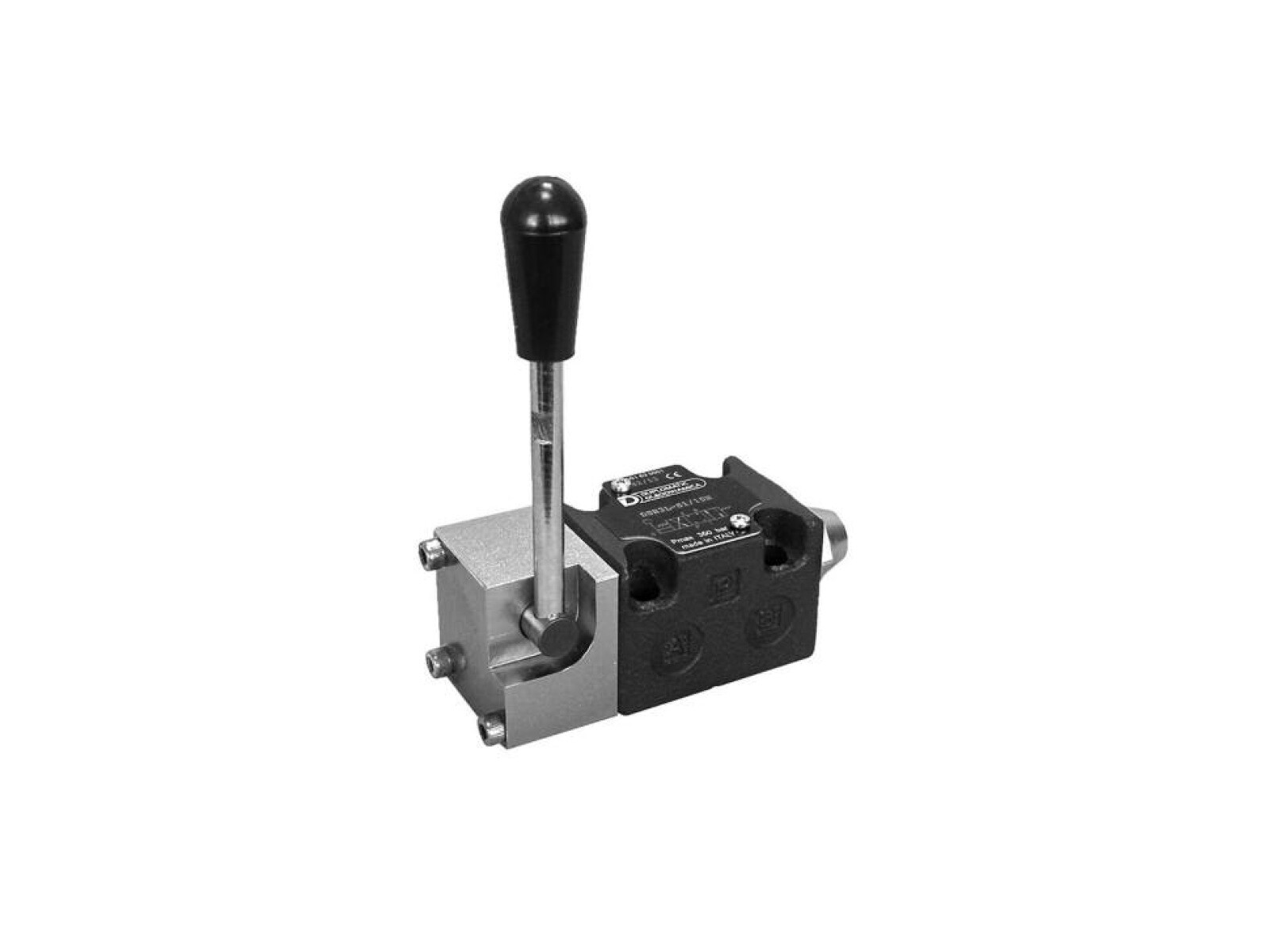

NG06 directional valves manual - Duplomatic DSH3L

SELECT VARIANT

Partnumber	Description	Pressure T max.	Number of ways/positions

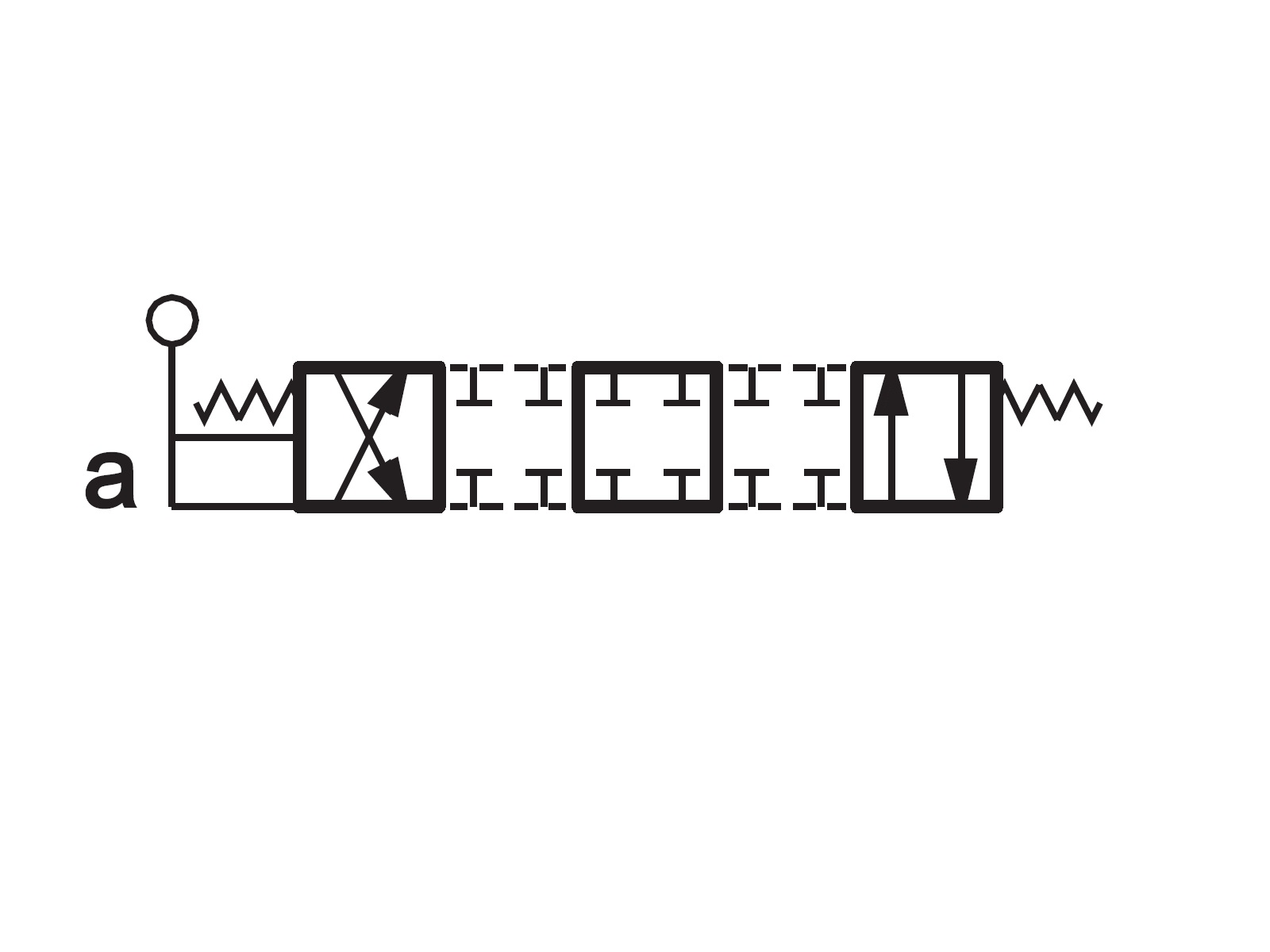

DSH3L-S1/10N	Riktn.ventil Duplomatic NG6 4/3 PcAcBcTc	210 bar	4/3

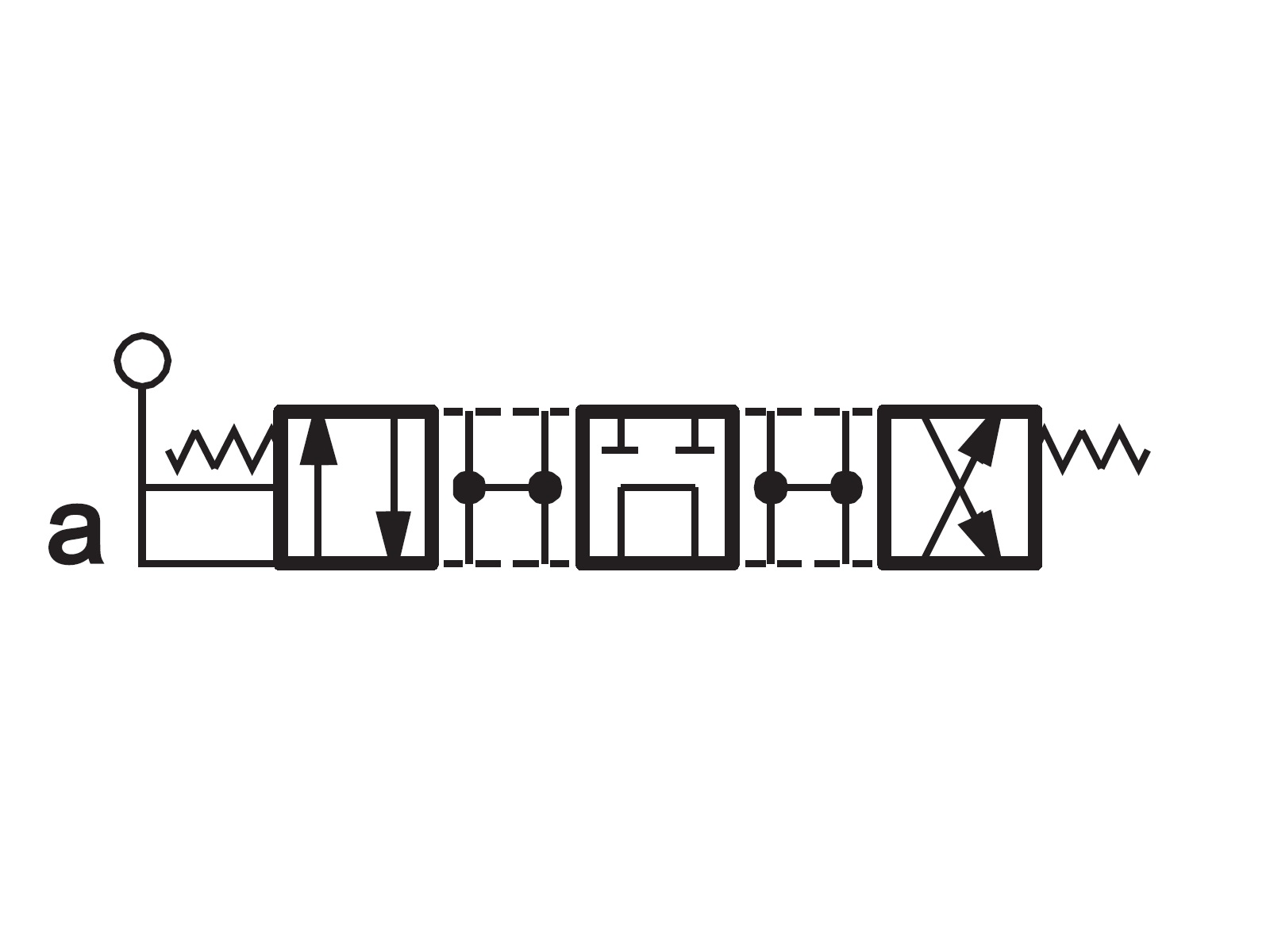

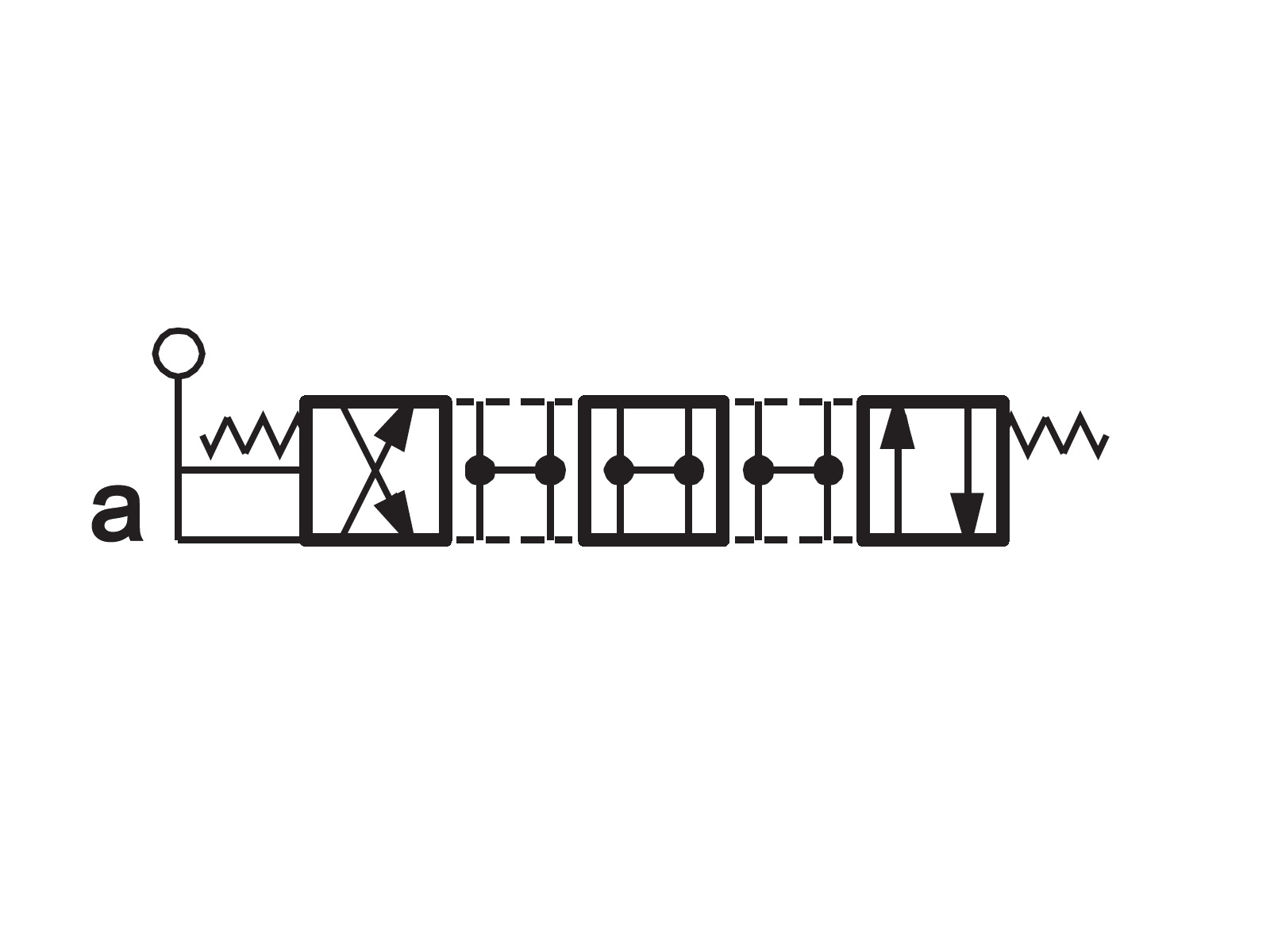

DSH3L-S2/10N	Riktn.ventil Duplomatic NG6 4/3 PoAoBoTo	210 bar	4/3

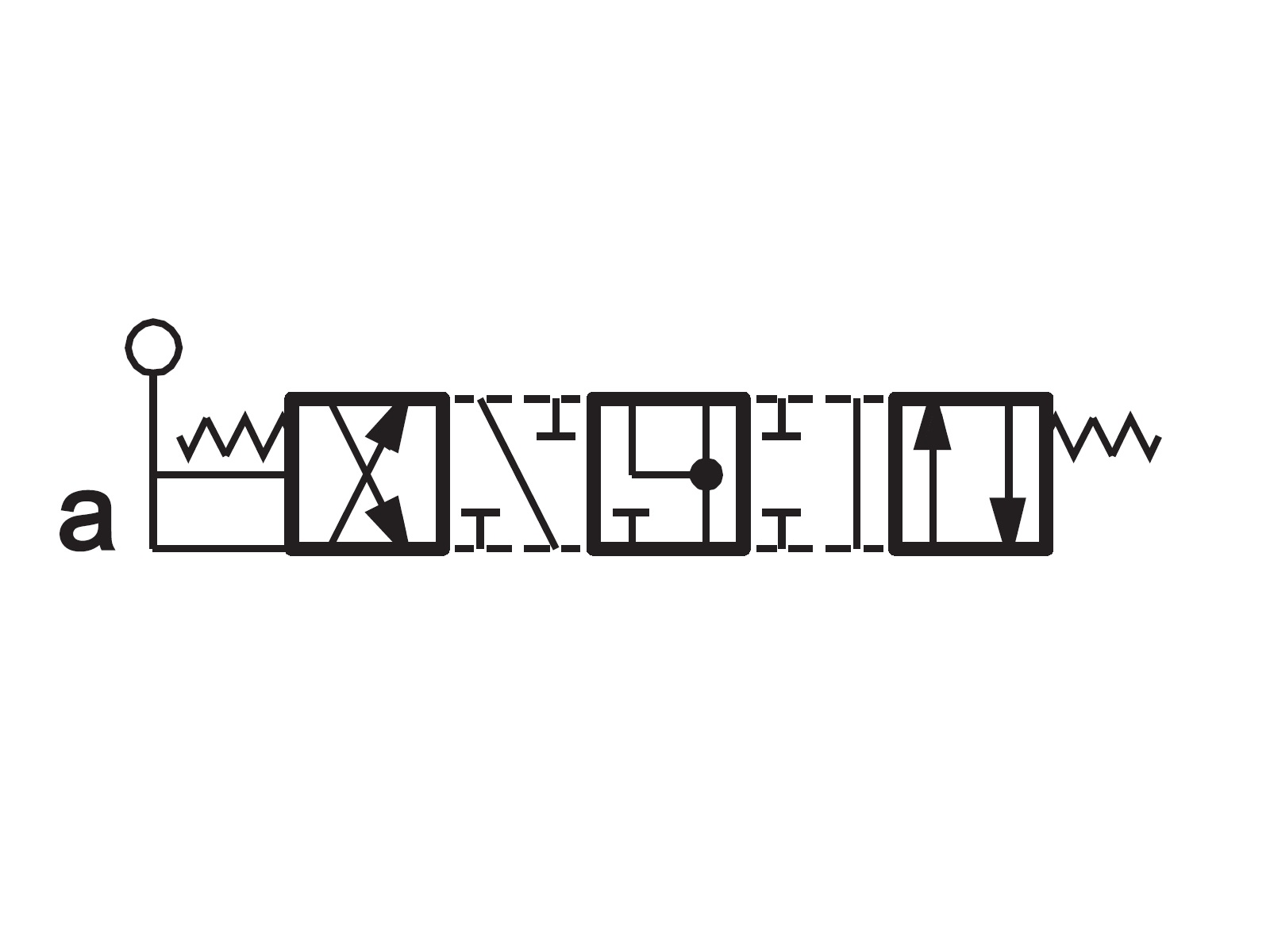

DSH3L-S3/10N	Riktn.ventil Duplomatic NG6 4/3 PcAoBoTo	210 bar	4/3
DSH3L-S4/10N	Riktn.ventil Duplomatic NG6 4/3 PoAcBcTo	210 bar	4/3

Activation

Handtag

Brand Name

Duplomatic

Contamination level max.

20/18/15 - ISO 4406

NG ISO-size

NG06

Number of ways/positions

4/3

Oil viscocity recommended

Pressure T max.

210

Pressure max.

350

Sealing material

NBR

Surface treatment

Fosfaterad (svart)

Temperature max.

+80

Temperature min.

-20

Torque tightening
