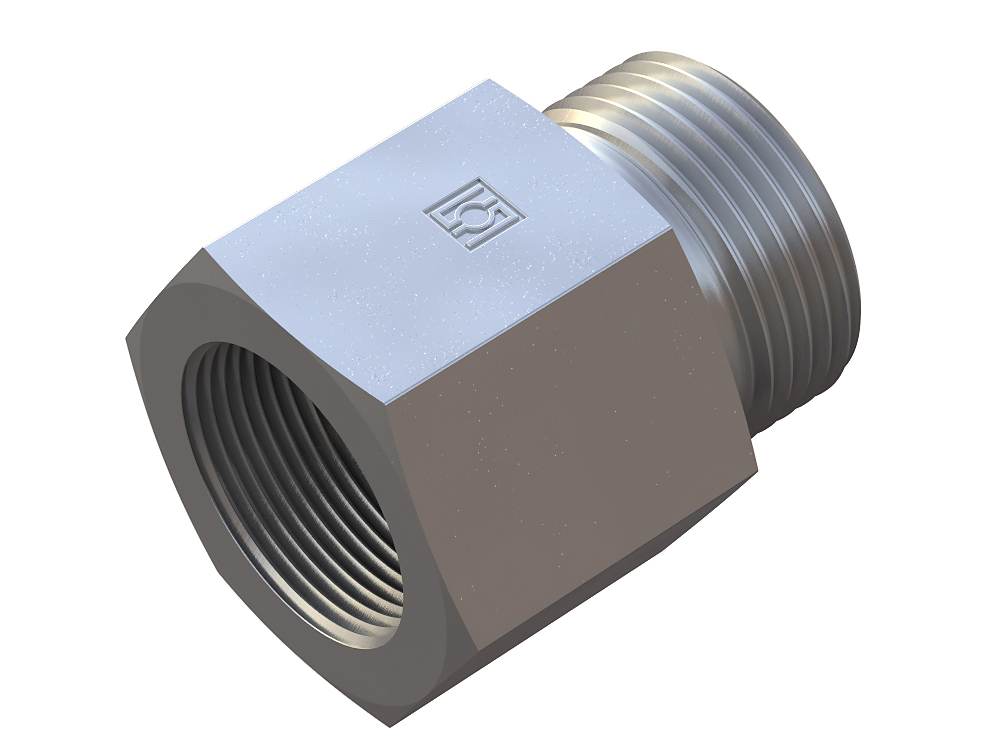

Straight fitting 0° - S-series - DIN male x BSP female

VÄLJ VARIANT
Artikelnummer Beskrivning Diameter rör Gänga inv. Tryck max.
XGAI06SR Stud fitting female - ø6S x 1/4" BSP female 6 mm G 1/4 BSP 630 bar
XGAI08SR Stud fitting female - ø8S x 1/4" BSP female 8 mm G 1/4 BSP 630 bar
XGAI10SR Stud fitting female - ø10S x 3/8" BSP female 10 mm G 3/8 BSP 630 bar
XGAI12SR Stud fitting female - ø12S x 3/8" BSP female 12 mm G 3/8 BSP 630 bar
XGAI12SR14 Stud fitting female - ø12S x 1/4" BSP female 12 mm G 1/4 BSP 630 bar
XGAI14SR Stud fitting female - ø14S x 1/2" BSP female 14 mm G 1/2 BSP 630 bar
XGAI16SR Stud fitting female - ø16S x 1/2" BSP female 16 mm G 1/2 BSP 630 bar
XGAI20SR Stud fitting female - ø20S x 3/4" BSP female 20 mm G 3/4 BSP 400 bar
XGAI25SR Stud fitting female - ø25S x 1" BSP female 25 mm G 1 BSP 400 bar
XGAI30SR Stud fitting female - ø30S x 1.1/4" BSP female 30 mm G 1.1/4 BSP 400 bar
XGAI38SR Stud fitting female - ø38S x 1.1/2" BSP female 38 mm G 1.1/2 BSP 400 bar
Märke namn
Stauff

REACH compliant
Yes

RoHs compliant
Yes

Rostbeständighet
1200 hours salt spray DIN EN ISO 9227

Serie
S

Säkerhetsfaktor
4

Temperatur max.
+120

Temperatur min.
-40

Tillverkningsmaterial
Steel

Vinkel
0

Ytskiktbehandling
Zinc-Nickel plated
