L fitting adjustable - ø38S - o-ring seal - AISI316
Temperature/Pressure reduction:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
NOTE! for gas application temperature range is -20°C - +60°C
Varenummer:
XEL38S-SY
Pakke str.:
1 pcs
Min. bestillingsenhed er:
1 pcs

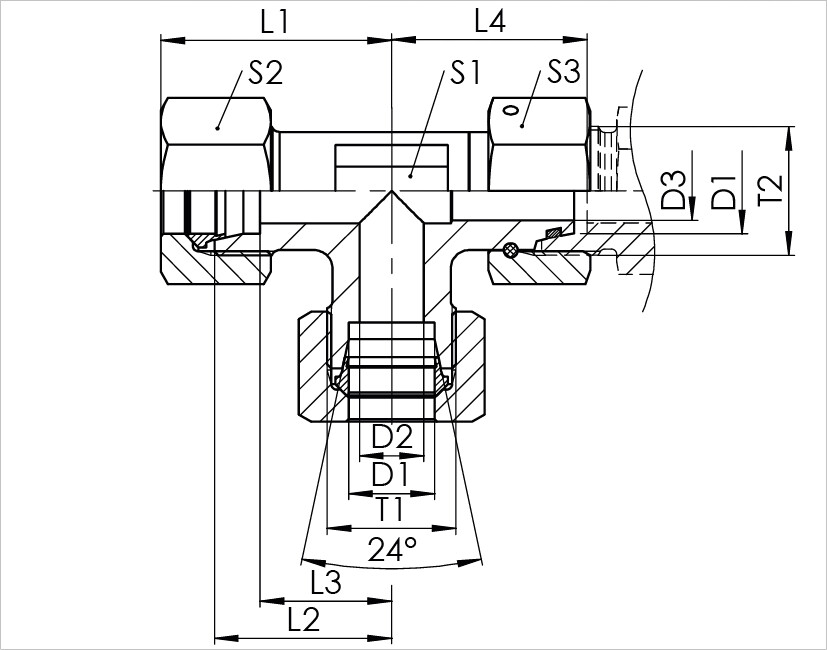

D2
30 mm
D3
32 mm
Diameter rör
38 mm
Gänga inv. metrisk
M52x2
Gänga utv. metrisk
M52x2
L1
72,5 mm
L2
57 mm
L3
41 mm
L4
63,5 mm
Materialkvalitet
1.4571 / AISI316Ti
Modell kod
XELVD 38 S
Märke namn
Volz
Packningsmaterial
FKM/FPM (Viton®)
REACH compliant
Yes
RoHs compliant
Yes
S1
50 mm
S2
60 mm
S3
60 mm
Serie
S
Säkerhetsfaktor
4
T1
M52x2
T2
M52x2
Temperatur max.
+200 °C
Temperatur min.
-25 °C
Tillverkningsmaterial
Acid-resistant steel
Tryck max.
420 bar
Typ
S
d1
38 mm
d2
32 mm
Package size
1 pcs
Barcode
343605
Gross weight
1,35 Kg
Net weight
1,35 Kg
Country of origin
DEU
Intrastat code
73072910
Temperature/Pressure reduction:
-60°C° - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
NOTE! for gas application temperature range is -20°C - +60°C
