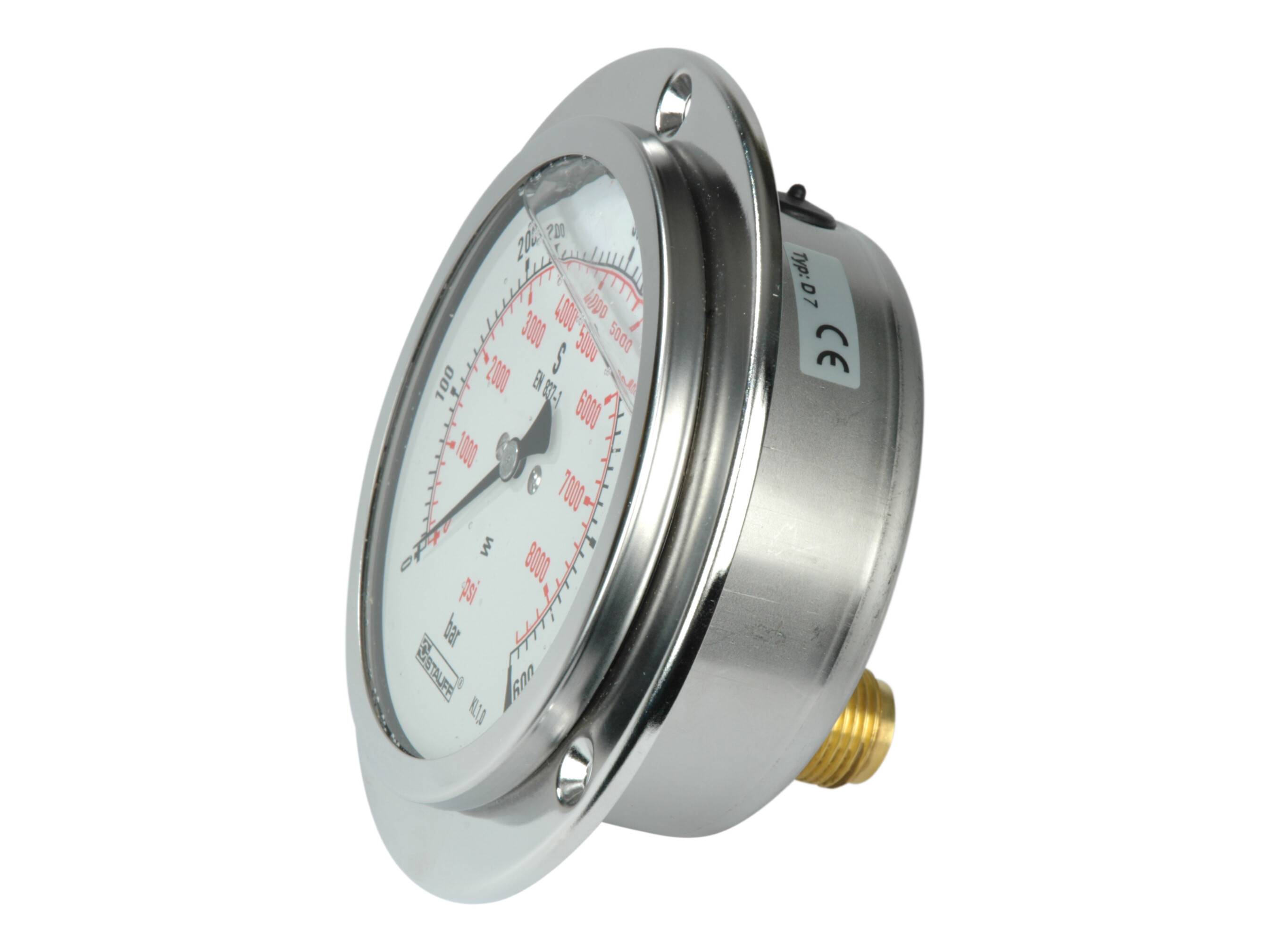

1/2" pressure gauge. Rear mount w. frontring. Scale 0-600 ba

Application: Measuring pressure in hydraulic oil and gaseous fluids which are non-aggresive to copper alloys.

Glycerine dampened.
Comes standard with dual scale showing both bar and PSI.
U-bolt or flange mounting kit optional.

!!NOTE: Mounting hole diameter: ø67 mm +/-0,3 mm.

Varenummer:
SPG100-600RF

Pakke str.:
1 st

Min. bestillingsenhed er:
1 st
Sealing ring for Manometer connector 1/2
Varenummer: DKIR12
Brand Name
Stauff

Diameter
100 mm

Glass type
Acrylic glass

Material
Stainless steel

Material quality
1.4301 / AISI304

Model code
SPG-100-00600-01-P-B08-F

Port position
Rear

Pressure measurement accuracy
±1,0% FS

Pressure setting max.
600 bar

Pressure setting min.
0 bar

Temperature max.
+60 °C

Temperature min.
-20 °C

Thread
G 1/2 BSP
Pakke str.
1 st

Stregkode
367883

Brutto vægt
0,95 Kg

Netto vægt
0,95 Kg

Oprindelsesland
DEU

Intrastat varekode
90262040

Application: Measuring pressure in hydraulic oil and gaseous fluids which are non-aggresive to copper alloys.

Glycerine dampened.
Comes standard with dual scale showing both bar and PSI.
U-bolt or flange mounting kit optional.

!!NOTE: Mounting hole diameter: ø67 mm +/-0,3 mm.
