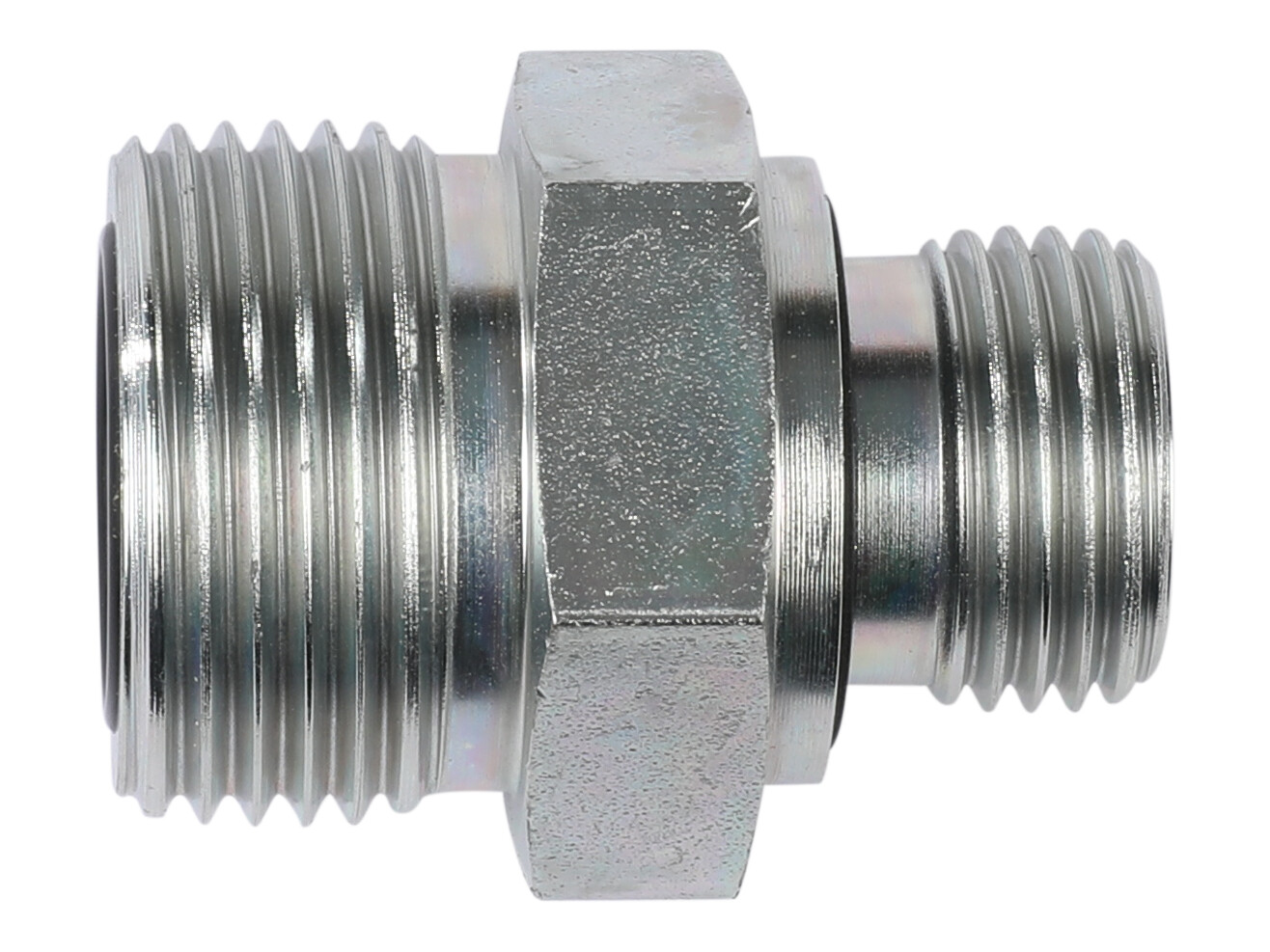

Adaptor 1/2 BSP x 1.3/16" ORFS
-
ORFS straight external threaded basic connector
- External thread (BSPP)
- With ED seal NBR Shore-A 85 \u200b\u200b+5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Artikelnummer:
OFGE-12-08ED
Förpackningsstorlek:
35 pcs
Minsta beställningskvantitet:
1 pcs
A
44 mm
Angle
0 °
B
17 mm
Brand Name
FOR
CH
32 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
14 mm
F
1.3/16-12 ORFS
F1
G 1/2 BSP
Material
Steel
Model code
A502146/2021
Pressure max.
420 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
T
18-20 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
1.3/16-12 ORFS
Thread outer
G 1/2 BSP
Förpackningsstorlek
35 pcs
Streckkod
196928
Bruttovikt
0,15 Kg
Nettovikt
0,15 Kg
Ursprungsland
ITA
Intrastat artikelkod
73079910
-
ORFS straight external threaded basic connector
- External thread (BSPP)
- With ED seal NBR Shore-A 85 \u200b\u200b+5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
