Liitinpistoke NVHF ISO A 7241-1
BSP 1/2" sk 250l/min 250bar high flow
Artikelnummer:
NVHF08GASM
Förpackningsstorlek:
1 fl
Minsta beställningskvantitet:
1 fl
Brand Name
Faster

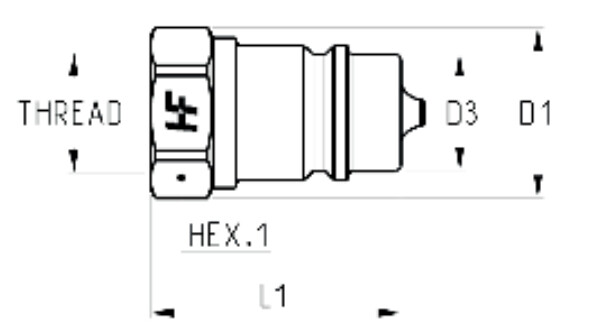

D1
30 mm
D3
20,5 mm
DN
12.5 mm
Field of application
Agriculture
Flowrate nominal LMin
250 lpm
Force To Connect
250 N
HEX 1
27 mm
Hexagon
27 mm
ISO size
12.5
L1
44 mm
Material
Steel
Model code
NVHF08 GAS M
Pressure max.
250 bar
Sealing material
PUR
Size
12.5 mm
Size
1/2 "
Size nominal
08
Spillage
2 ml
Standard ISO
ISO 1179-1
Surface treatment
MATE 500 (CrIII)
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread inner
G 1/2 BSP
Valve type
Poppet
Working Pressure
250 bar
Working Pressure
25 MPa
Package size
1 fl
Barcode
422099
Gross weight
0,08 Kg
Net weight
0,08 Kg
Country of origin
IT
BSP 1/2" sk 250l/min 250bar high flow
