Adapter 45K, Utv-JIC, Utv-M, Ställbar
\ufeff
-

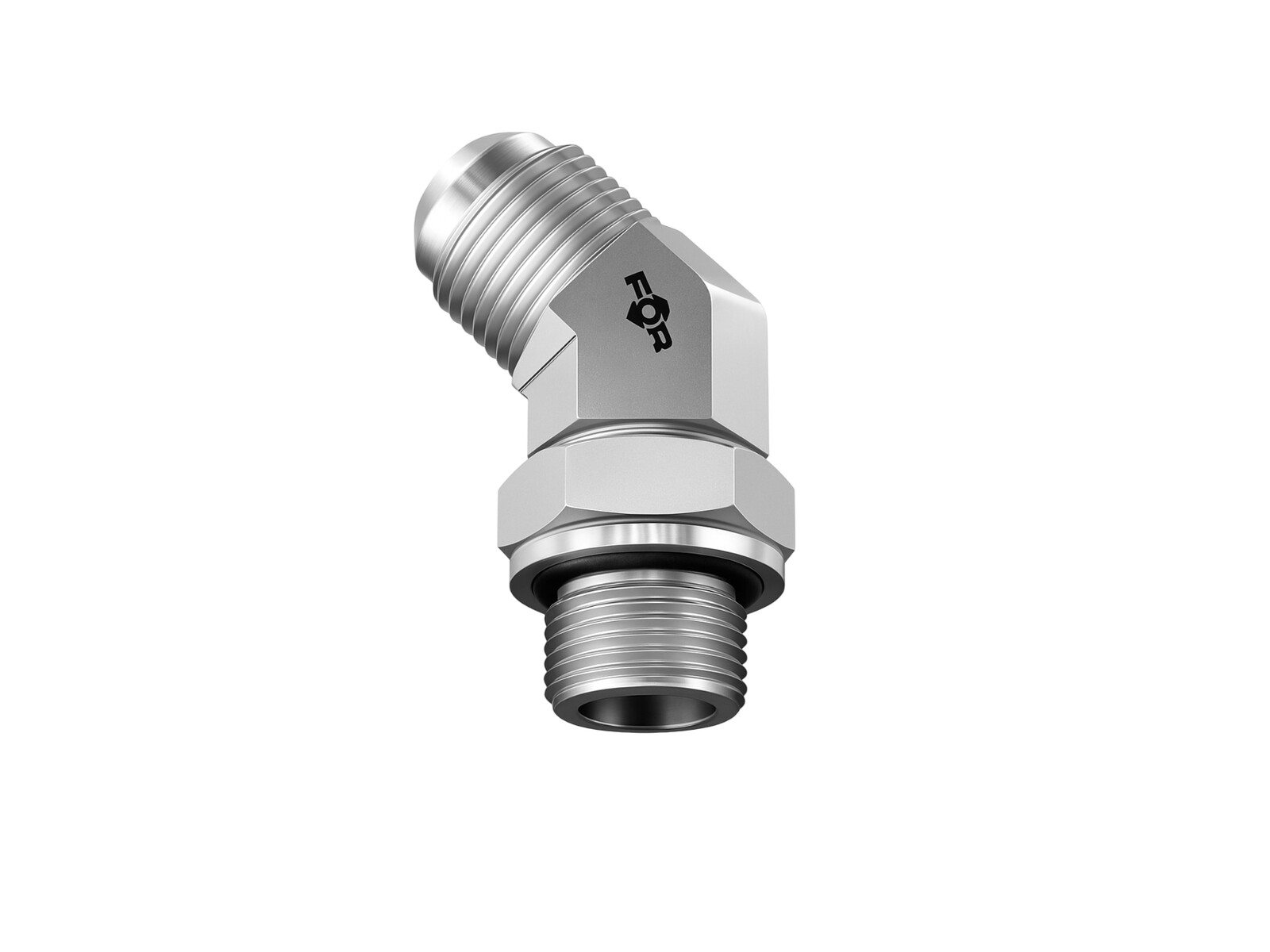

JIC 37°, 45° directional angle connector
- Metric external thread
- O-ring NBR Shore 85 +5/0 and support ring
- ISO 9974 - for threaded ports
- Operating temperature -20° to +120°
Partnumber:
JVEEM-10-18
Package size:
10 pcs
Min. order quantity is:
1 pcs
Angle
45 °
B
24 mm
Brand Name
FOR
C
35 mm
CH
24 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
F
M18x1,5
J
7/8-14 JIC
Material
Steel
Model code
A105037/1618
Pressure max.
250 bar
Sealing material
NBR
Standard ISO
ISO 9974
Surface treatment
Electro zinc plated
T
14-15-16 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
7/8-14 JIC
Thread outer metric
M18x1,5
Pakke str.
10 pcs
Stregkode
144229
Brutto vægt
0,117 Kg
Netto vægt
0,117 Kg
Oprindelsesland
ita
\ufeff
-
JIC 37°, 45° directional angle connector
- Metric external thread
- O-ring NBR Shore 85 +5/0 and support ring
- ISO 9974 - for threaded ports
- Operating temperature -20° to +120°
