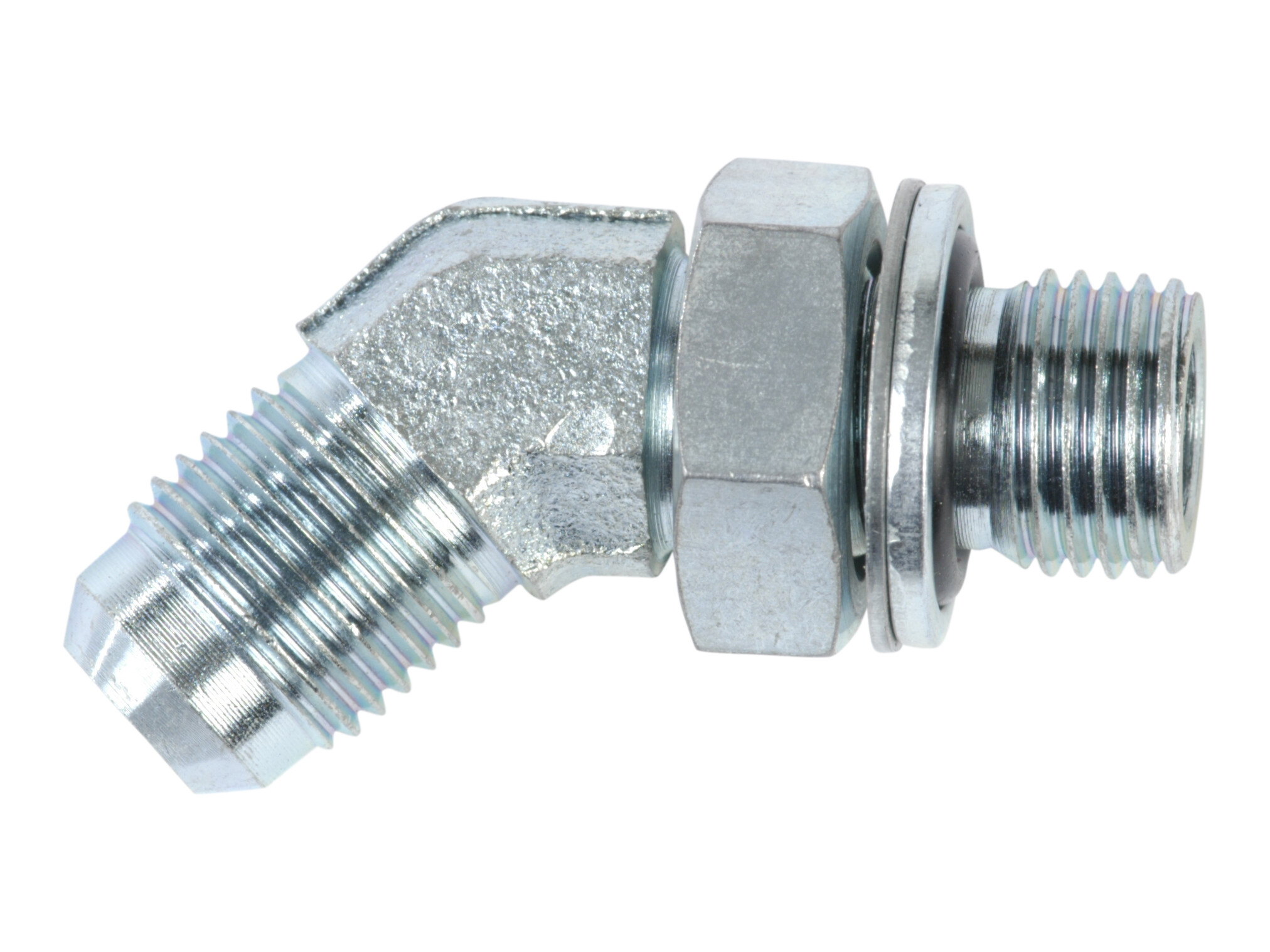

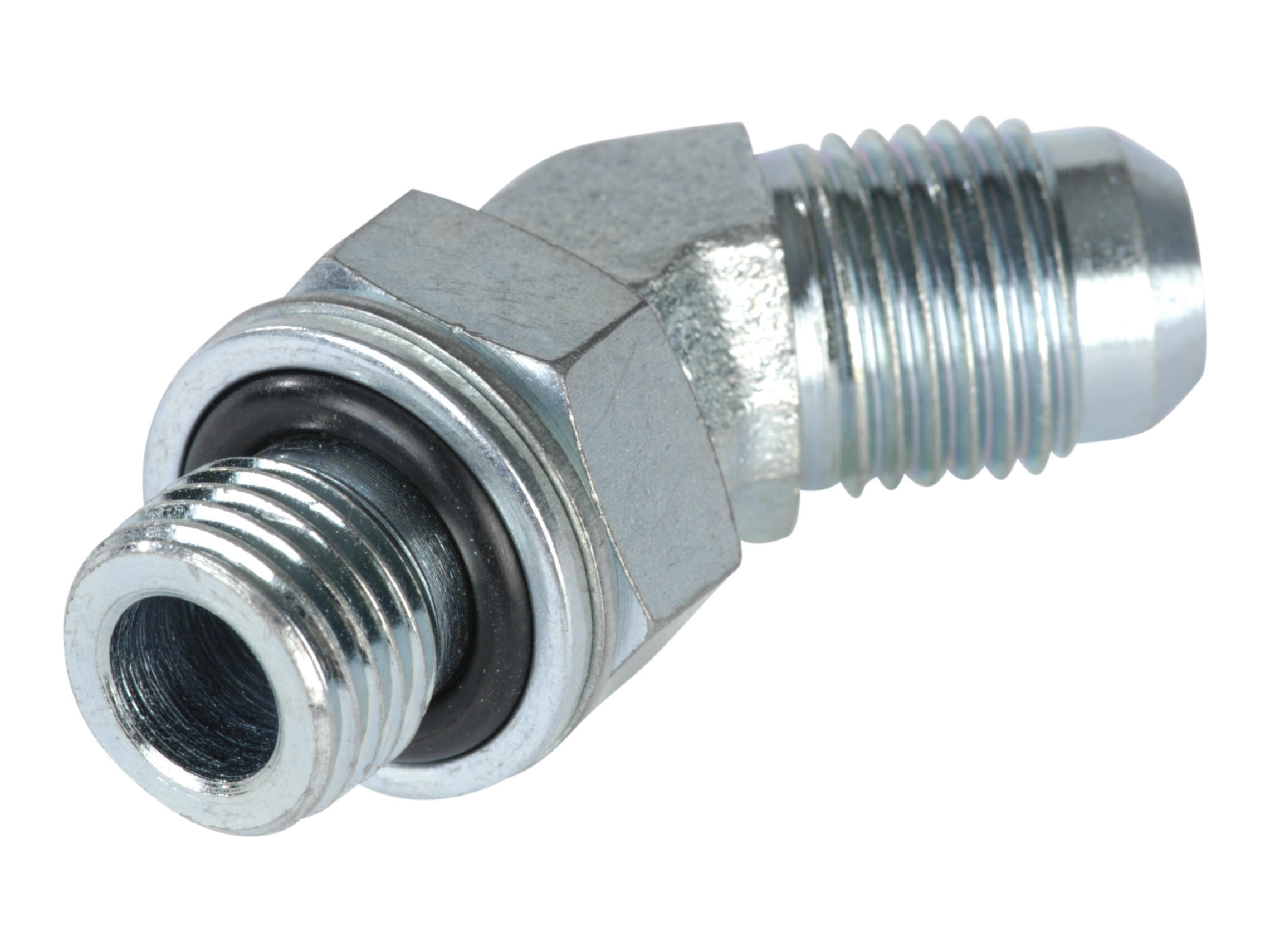

S615-10-13G elbow BSP
S615-10-13G elbow BSP
Partnumber:
JVEE-06-04
Package size:
10 st
Min. order quantity is:
1 st
Angle
45 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
10 mm
Dimension B
21 mm
Dimension C
29 mm
Dimension CH
19 mm
Dimension F
G 1/4 BSP
Dimension J
9/16-18 JIC
Dimension T
10 mm
Material
Steel
Pressure max.
350 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
9/16-18 JIC
Thread outer
G 1/4 BSP
Package size
10 st
Barcode
144200
Gross weight
0,05 Kg
Net weight
0,05 Kg
Country of origin
ITA
Intrastat code
73071110
S615-10-13G elbow BSP
Note: Opening 3D files requires a program that supports the file format
