Adaptor straight Ø10 mm Female-G1/8
Adaptor straight Ø10 mm Female-G1/8
Varenummer:
C02261018
Pakke str.:
10 st
Min. bestillingsenhed er:
10 st
Angle
0 °
Area of use
Compressed air, Vacuum
Brand Name
Tierre

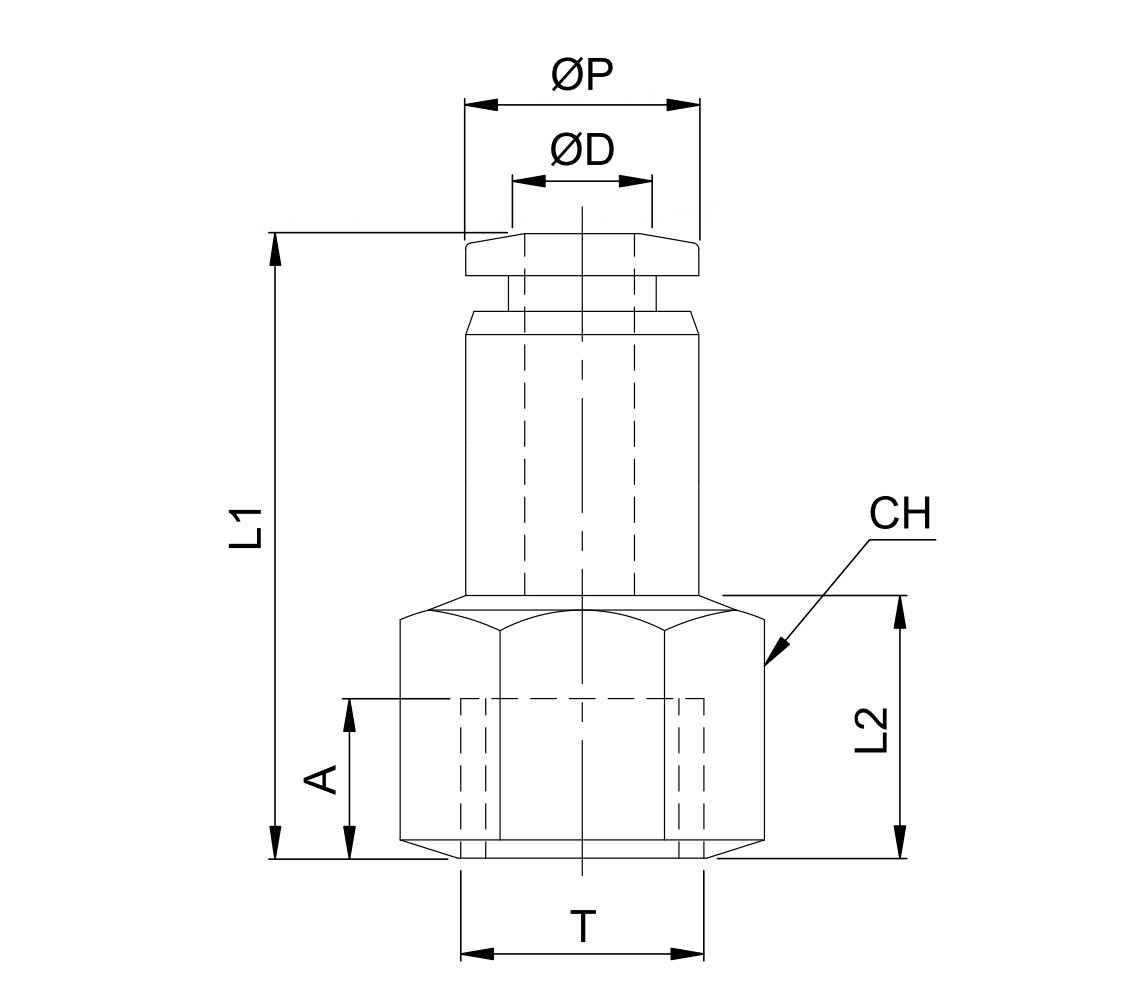

Dimension A
7 mm
Dimension CH
17 mm
Dimension L1
27.7 mm
Dimension L2
10 mm
Dimension T
G 1/8 BSP
Dimension ØD
10 mm
Dimension ØP
17.2 mm
Material
Brass, NBR, PBT-plast, POM(Acetal), Stainless steel, Zinc
Model code
WTRCF10G01
Pressure max.
16 bar
REACH compliant
Yes
RoHs compliant
Yes
Sealing material
NBR
Series
WTR
Standard
Silicone Free
Standard ISO
ISO 14743
Temperature max.
+80 °C
Temperature min.
-20 °C
Thread
G 1/8 BSP
Thread ISO standard
ISO 228
Torque tightening
10 Nm
Tube Insertion Depth
20.1 mm
Tube Tollerance
ØD1 ± 0,15 mm
Vacuum max.
-0.9 bar
Package size
10 st
Barcode
457678
Gross weight
Kg
Net weight
Kg
Country of origin
ita
Intrastat code
11111111
Adaptor straight Ø10 mm Female-G1/8
