Pump S45 KR-R-038C-LS-23-20-NN-N-3-C2NK-A6N-KNB-NNN-NNN
Danfoss S45 variabel piston pump for open circuit.

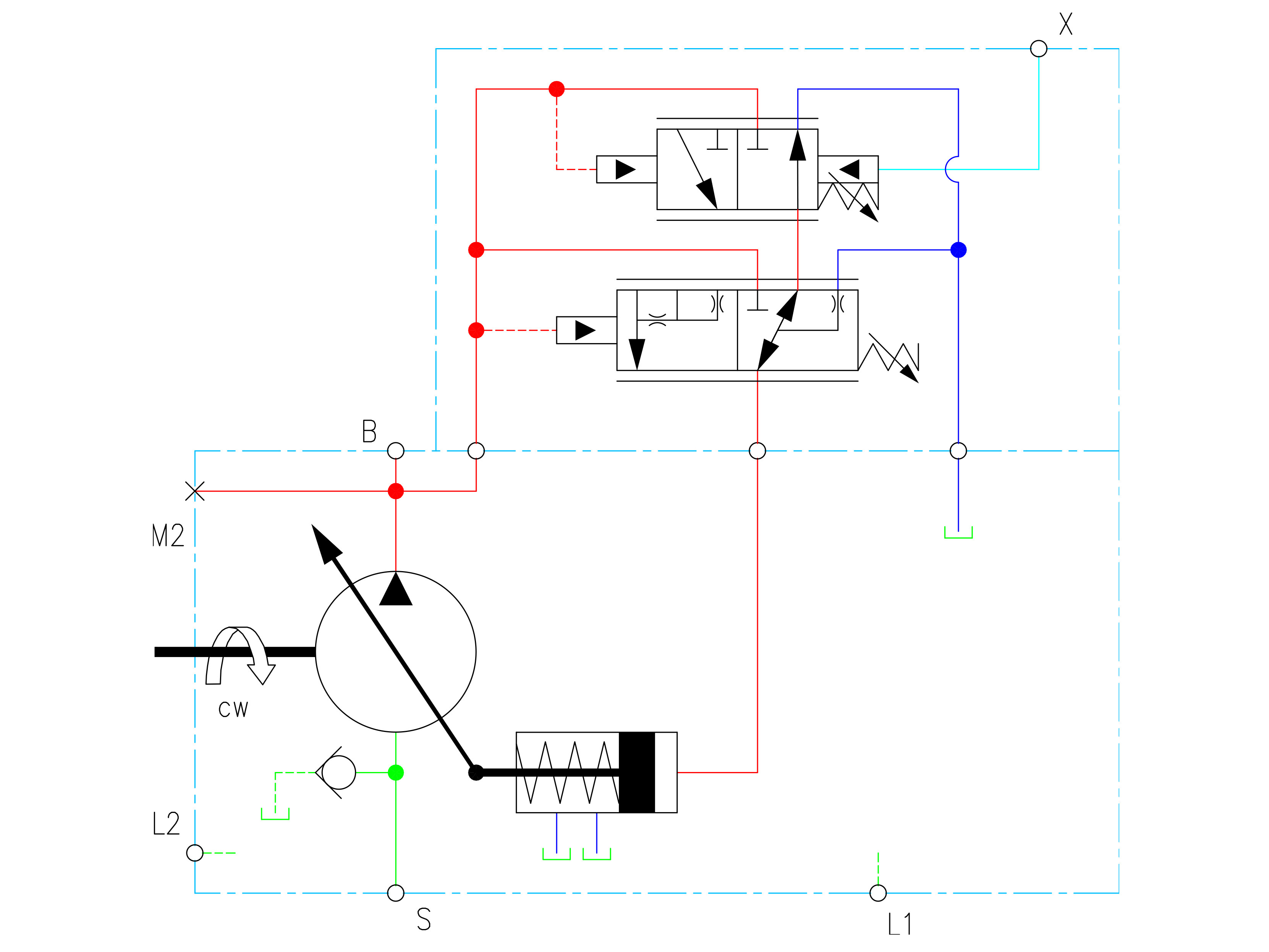

Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
Partnumber:
83010975
Package size:
1 st
Min. order quantity is:
1 st
Aksel diameter
21,8 mm
Aksel kode
C2
Aksel spline
13T 16/32 SAE-B
Akseltype
Spline
Akseltætning materiale
FKM/FPM (Viton®)
Antal montage huller
2
Bagflange
None
Boltcirkel
146 mm
Ekstra montering/endedæksel type
NK
Flange SAE/DIN
3000 PSI
Flange indgang
1.1/2 "
Flange udgang
1 "
Fortrængning
38 cm3
Fortrængningsbegrænser
None
Forureningsgrad maks.
22/18/13 - ISO 4406
Kontrol
Load sensing
Kontrol type
LS
Model
Frame K
Model kode
KR-R-038C-LS-23-20-NN-N-3-C2NK-A6N-KNB-NNN-NNN
Monteringsflange
SAE-B2
Mærke navn
Danfoss
Olieviskositet anbefalet
9 - 110 cSt
Portplacering
Side
Reces
101,6 mm
Rotationshastighed kontinuerligt maks.
2650 rpm
Rotationshastighed maks.
2800 rpm
Rotationshastighed maks. ved maks. tryk
2650 rpm
Rotationshastighed min.
500 rpm
Rotationssretning
Right (CW)
Sensor type
None
Temperatur intermitterende maks.
+104 °C
Temperatur maks.
+82 °C
Temperatur min.
-40 °C
Tryk kontinuerligt maks.
260 bar
Tryk maks.
350 bar
Udvendigt splineantal
13
Package size
1 st
Barcode
334078
Gross weight
24,40 Kg
Net weight
24,40 Kg
Country of origin
Intrastat code
84135061
Danfoss S45 variabel piston pump for open circuit.
Regulations: Pressure Compensator, Load sensing, PC controlled pressure.
Connections: SAE flange side connection in endcap.
Shaft- and o-ringsseals in Viton®.
