C.B. Valve 60l/m 55-80bar 10:1 CB10-HV-1-C-1-F-140-V-00(TN)

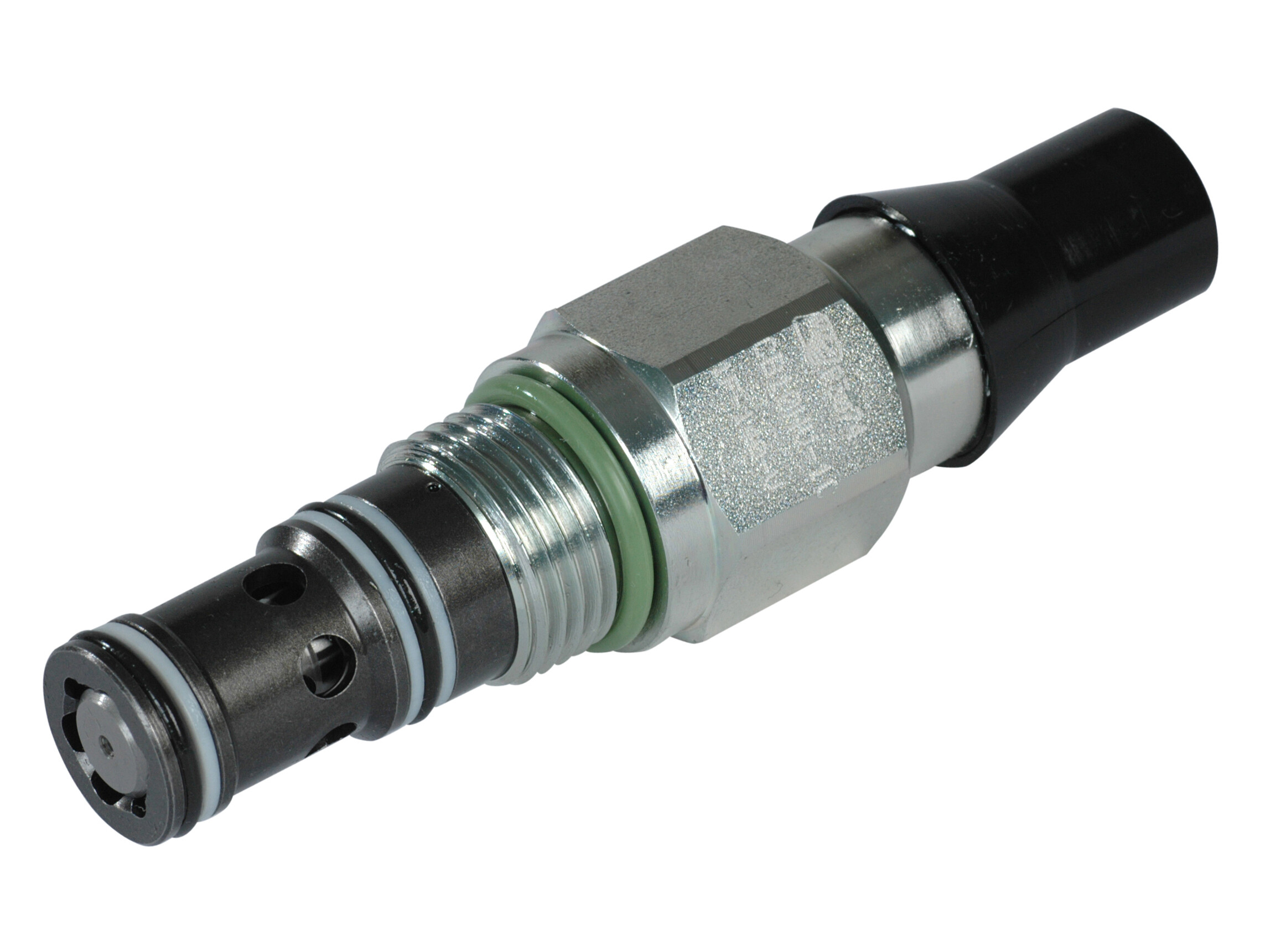

CB10-HV, Hydraulic Vent Valve.

Operation

CB10-HV: Counterbalance valve, 10-size, hydraulic vent. This valve is 3-ported, externally piloted and low leakage. The check section allows free flow from the directional valve (port 2) to the load (port 1), while normally blocking flow from port 1 to port 2. Reverse flow is blocked until pilot pressure is applied at port 3. When the load pressure at port 1 rises above the pressure setting, the integral relief valve is activated, and pressure is relieved from port 1 to port 2.



Applications

Single counterbalance valves are normally used when the load is unidirectional, such as aerial lifts, cranes, or winches. In load holding applications, they can be used as hose-break valves when installed near or within an actuator. Dual valves can be used for controlling loads bi-directionally in motor applications, or for cylinders going over center.

Artikelnummer:
11130498

Förpackningsstorlek:
1 st

Minsta beställningskvantitet:
1 st
Brand Name
Danfoss

Cavity
SDC10-3S

Contamination level max.
20/18/14 - ISO 4406

Flow rate nominal LMin
60 lpm

Model code
CB10-HV-1-C-1-F-140-V-0

Oil viscocity recommended
12 - 54 cSt

Pilot ratio
10:1

Pressure max.
350 bar

Pressure setting max.
140 bar

Sealing material
FKM/FPM (Viton®)

Torque tightening
45 - 50 Nm
Package size
1 st

Barcode
374666

Gross weight
Kg

Net weight
Kg

Country of origin
ITA

Intrastat code
84812010

CB10-HV, Hydraulic Vent Valve.

Operation

CB10-HV: Counterbalance valve, 10-size, hydraulic vent. This valve is 3-ported, externally piloted and low leakage. The check section allows free flow from the directional valve (port 2) to the load (port 1), while normally blocking flow from port 1 to port 2. Reverse flow is blocked until pilot pressure is applied at port 3. When the load pressure at port 1 rises above the pressure setting, the integral relief valve is activated, and pressure is relieved from port 1 to port 2.



Applications

Single counterbalance valves are normally used when the load is unidirectional, such as aerial lifts, cranes, or winches. In load holding applications, they can be used as hose-break valves when installed near or within an actuator. Dual valves can be used for controlling loads bi-directionally in motor applications, or for cylinders going over center.
