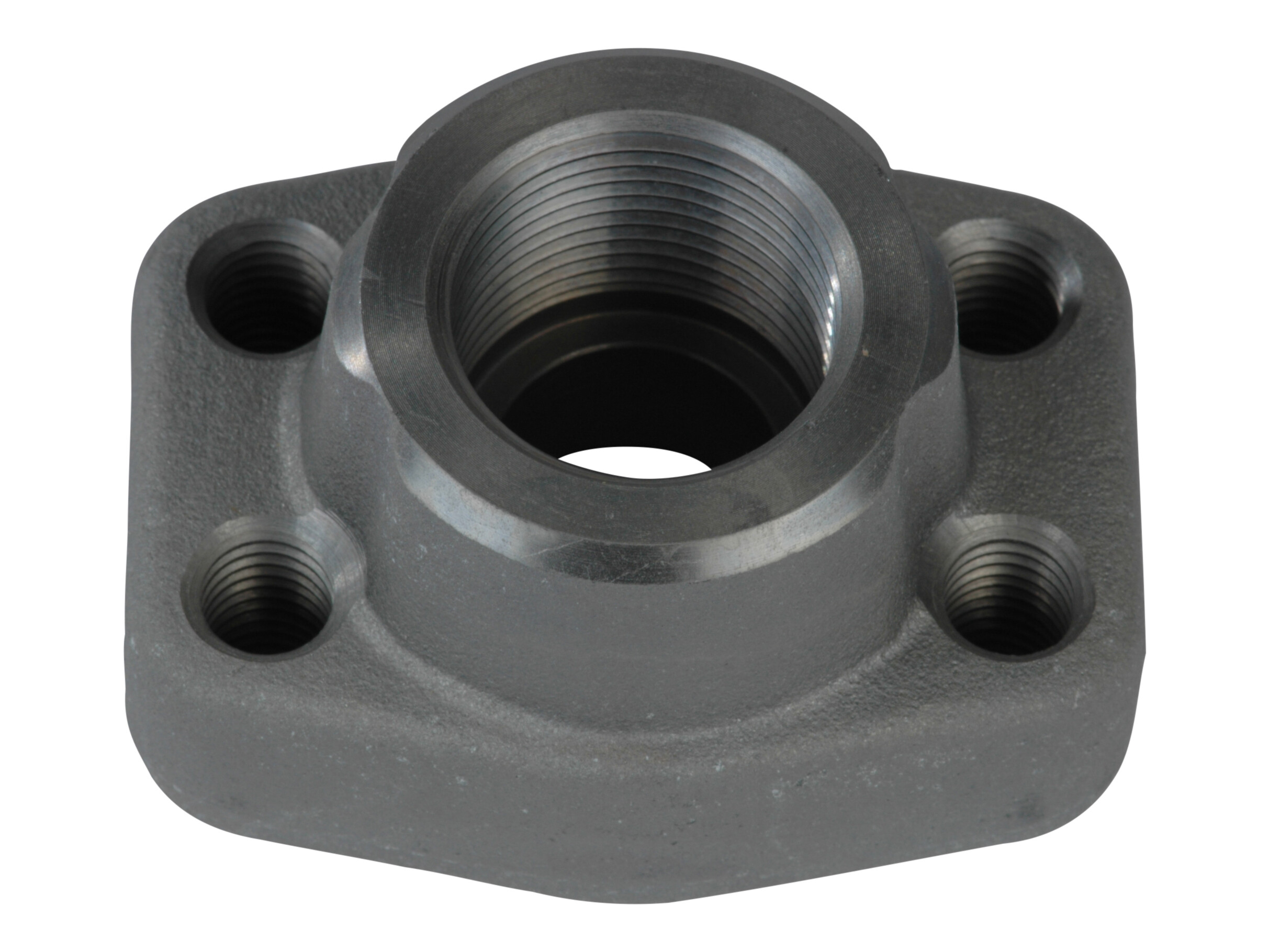

Threaded flange 3/4" SAE3000 x 3/4" BSP
Threaded flange 3/4" SAE3000 x 3/4" BSP
Varenummer:
GFS100G
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
0 °
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
38.1 mm
Dimension C
47.6 mm
Dimension E
22.3 mm
Flange
3/4 "
Flange SAE/DIN
3000 PSI
Material
Steel
O-ring
24.99X3.53 mm
Pressure max.
350 bar
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 3/4 BSP
Thread of bolt metric
M10
Package size
0 pcs
Barcode
5704295362816
Gross weight
0,39 Kg
Net weight
0,39 Kg
Country of origin
DEU
Intrastat code
73079100
Threaded flange 3/4" SAE3000 x 3/4" BSP
