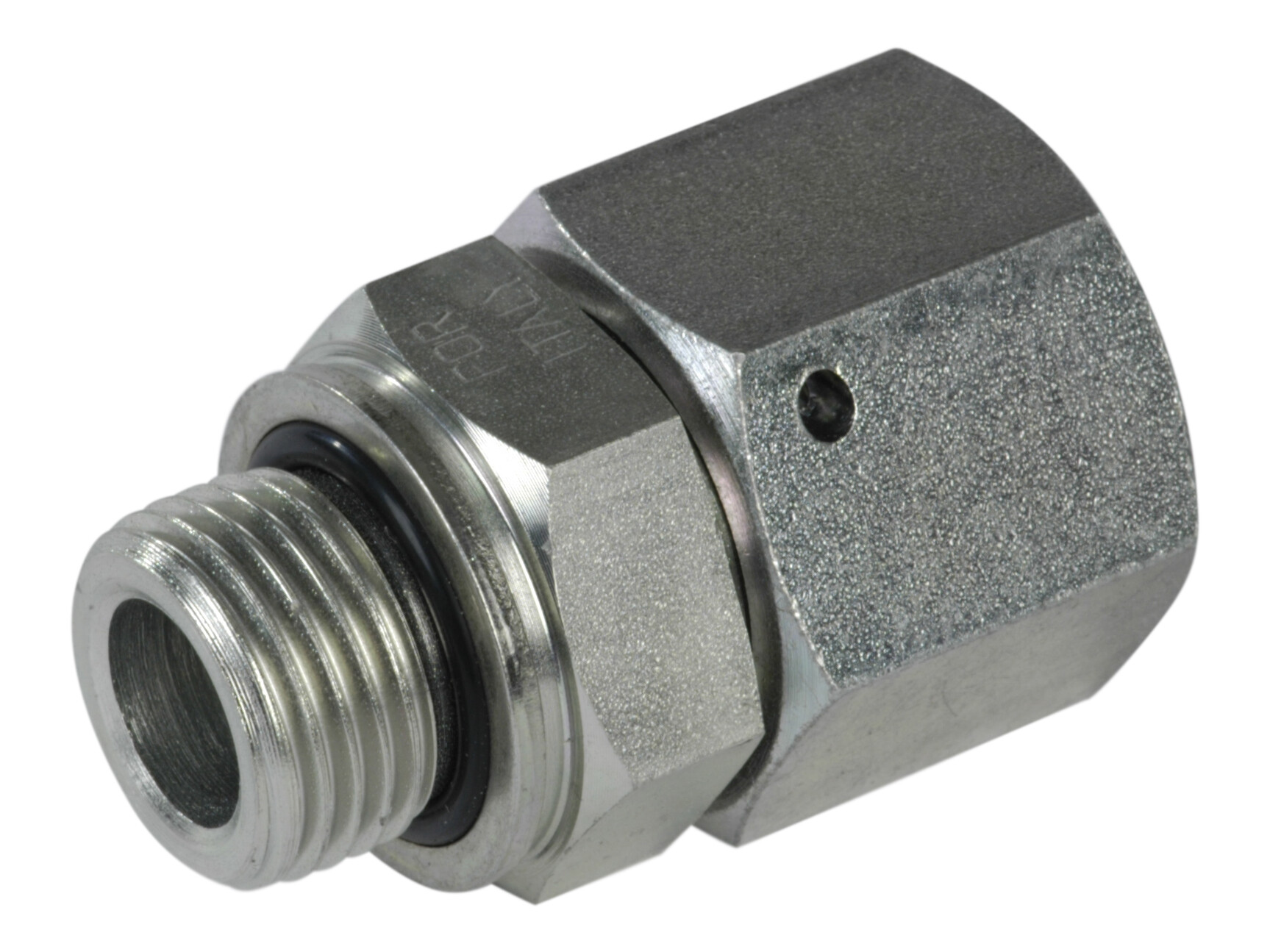

S180-20-21G adaptor with nut
\ufeff
-
JIC female connector, straight, 37° taper
- External thread (BSPP)
- O-ring NBR, Shore-A 85 +5/-0 and support ring
- Operating temperature range -20° to +120°
- ISO 1179 - for threaded ports
Partnumber:
FG-20-1/2
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
53,5 mm
Angle
0 °
B
27,5 mm
Brand Name
FOR
CH
30 mm
CH1
32 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
12 mm
Diameter pipe
20 mm
F
G 1/2 BSP
J
1.1/16-12 JIC
Material
Steel
Model code
A102177/2021
Pressure max.
300 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
T
20 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread inner
1.1/16-12 JIC
Thread outer
G 1/2 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704334274377
Bruttovikt
0,15 Kg
Nettovikt
0,15 Kg
Ursprungsland
ITA
Intrastat artikelkod
73071110
\ufeff
-
JIC female connector, straight, 37° taper
- External thread (BSPP)
- O-ring NBR, Shore-A 85 +5/-0 and support ring
- Operating temperature range -20° to +120°
- ISO 1179 - for threaded ports
