S230-20-21G adaptor BSP

\ufeff

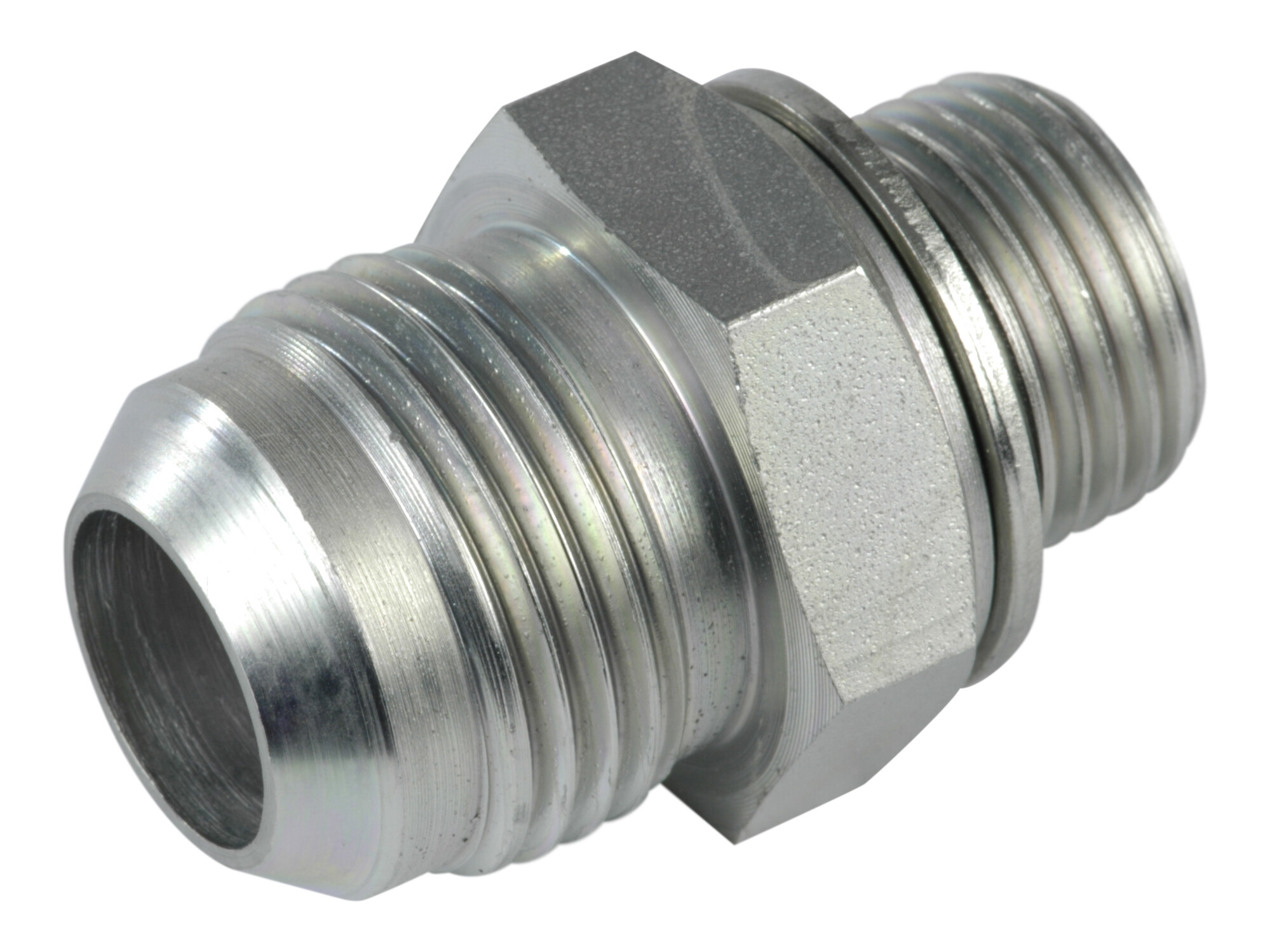

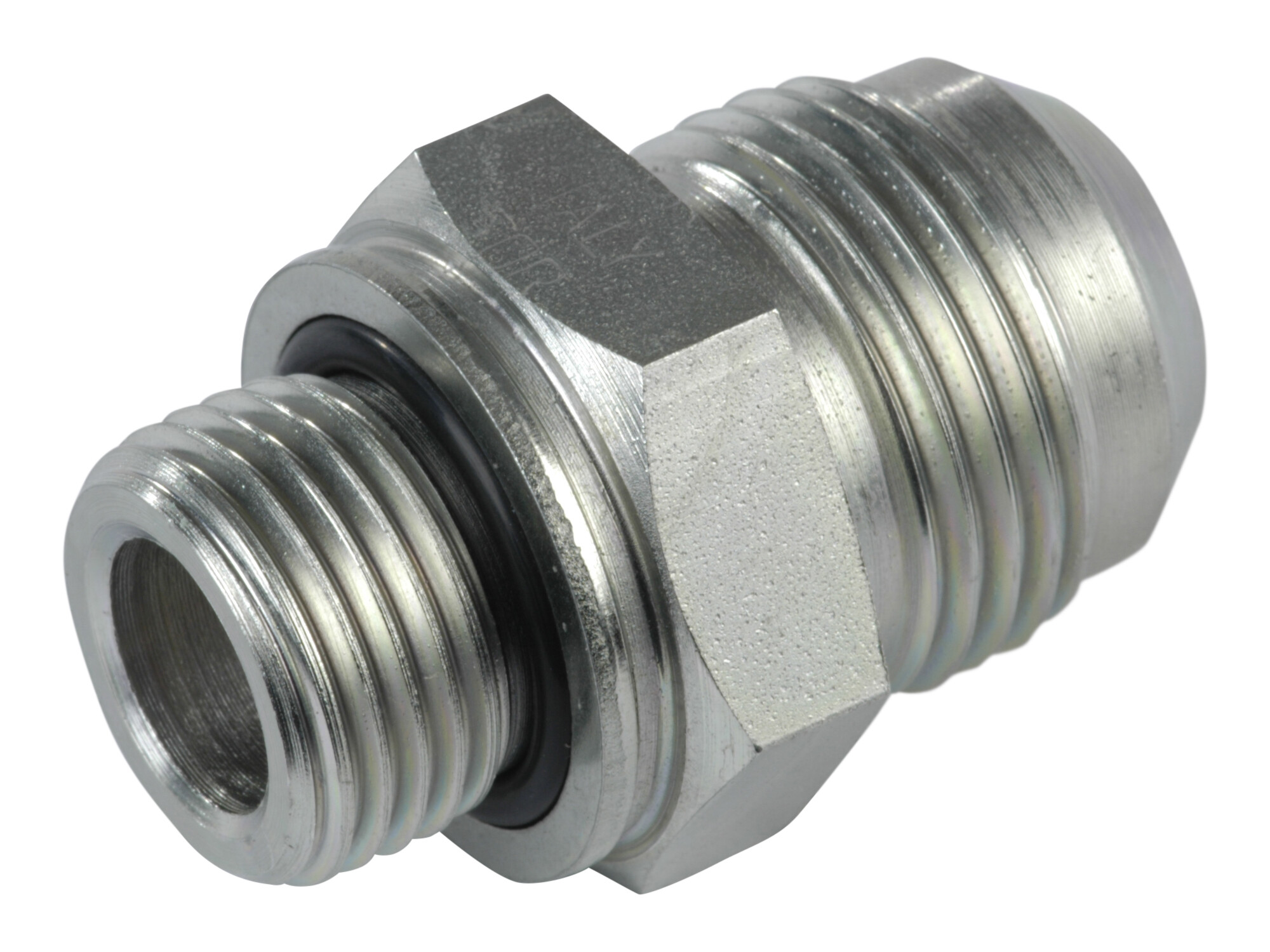

JIC 37° straight basic connector
- External thread (BSPP)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°

Varenummer:

M-20-1/2

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifications
Dimensions and shipping

47 mm

22 mm

30 mm

12 mm

Diameter rør

20 mm

G 1/2 BSP

Gevind

G 1/2 BSP

Gevind udvendig

1.1/16-12 JIC

Gevind udvendig

G 1/2 BSP

1.1/16-12 JIC

Korrosions resistens

1400 hours salt spray DIN EN ISO 9227

Materiale

Steel

Mærke navn

FOR

Overfladebehandling

Electro zinc plated

Pakningsmateriale

NBR

Standard ISO

ISO 1179

20 mm

Temperatur maks.

+120 °C

Temperatur min.

-20 °C

Tryk maks.

300 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704334273257

Gross weight

0,12 Kg

Net weight

0,12 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

\ufeff

JIC 37° straight basic connector
- External thread (BSPP)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°

Note: Opening 3D files requires a program that supports the file format
