Adapter Rak, Utv-JIC, Utv-G

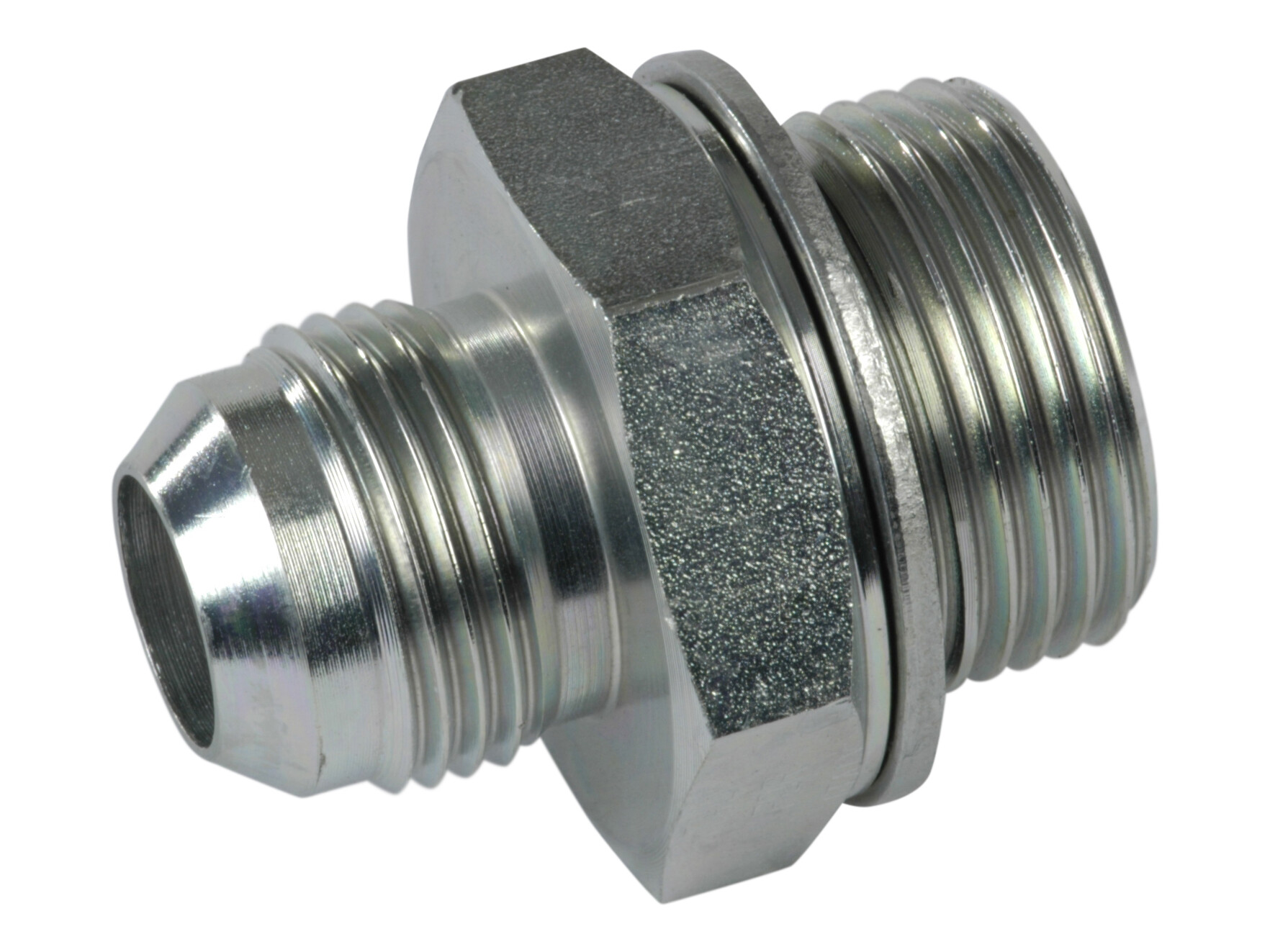

S230-20-33G adaptor BSP
Varenummer:
M-20-1
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
20 mm
Dimension A
52.5 mm
Dimension B
22 mm
Dimension CH
41 mm
Dimension D
15.5 mm
Dimension F
G 1 BSP
Dimension J
1.1/16-12 JIC
Dimension T
20 mm
Material
Steel
Pressure max.
300 bar
Surface treatment
Electro-galvanized / White chromatized
Thread
G 1 BSP
Thread outer
1.1/16-12 JIC
Thread outer
G 1 BSP
Package size
0 pcs
Barcode
5704334308966
Gross weight
0,221 Kg
Net weight
0,221 Kg
Country of origin
ita
Intrastat code
73071110
S230-20-33G adaptor BSP
Note: Opening 3D files requires a program that supports the file format
