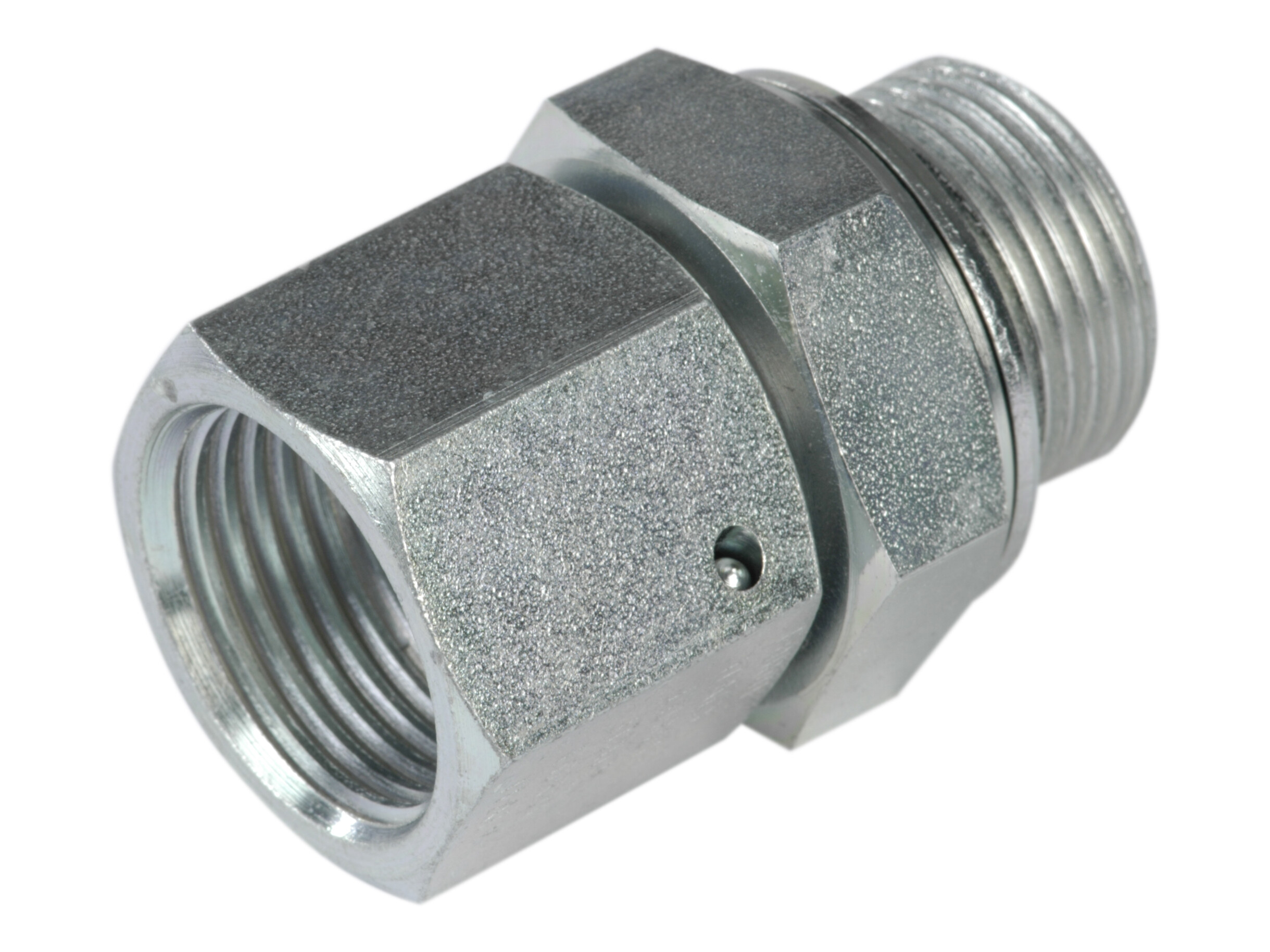

S180-20-26G adaptor with nut
\ufeff
-
JIC female connector, straight, 37° taper
- External thread (BSPP)
- O-ring NBR, Shore-A 85 +5/-0 and support ring
- Operating temperature range -20° to +120°
- ISO 1179 - for threaded ports
Artikelnummer:
FG-20-3/4
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
A
56,5 mm
B
27,5 mm
CH
36 mm
CH1
32 mm
D
14 mm
Diameter rör
20 mm
F
G 3/4 BSP
Gänga inv.
1.1/16-12 JIC
Gänga utv.
G 3/4 BSP
J
1.1/16-12 JIC
Modell kod
A102177/2026
Märke namn
FOR
Packningsmaterial
NBR
Rostbeständighet
1400 hours salt spray DIN EN ISO 9227
Standard ISO
ISO 1179
T
20 mm
Temperatur max.
+120 °C
Temperatur min.
-20 °C
Tillverkningsmaterial
Steel
Tryck max.
280 bar
Vinkel
0 °
Ytskiktbehandling
Electro zinc plated
Package size
0 pcs
Barcode
5704334274391
Gross weight
0,19 Kg
Net weight
0,19 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC female connector, straight, 37° taper
- External thread (BSPP)
- O-ring NBR, Shore-A 85 +5/-0 and support ring
- Operating temperature range -20° to +120°
- ISO 1179 - for threaded ports
