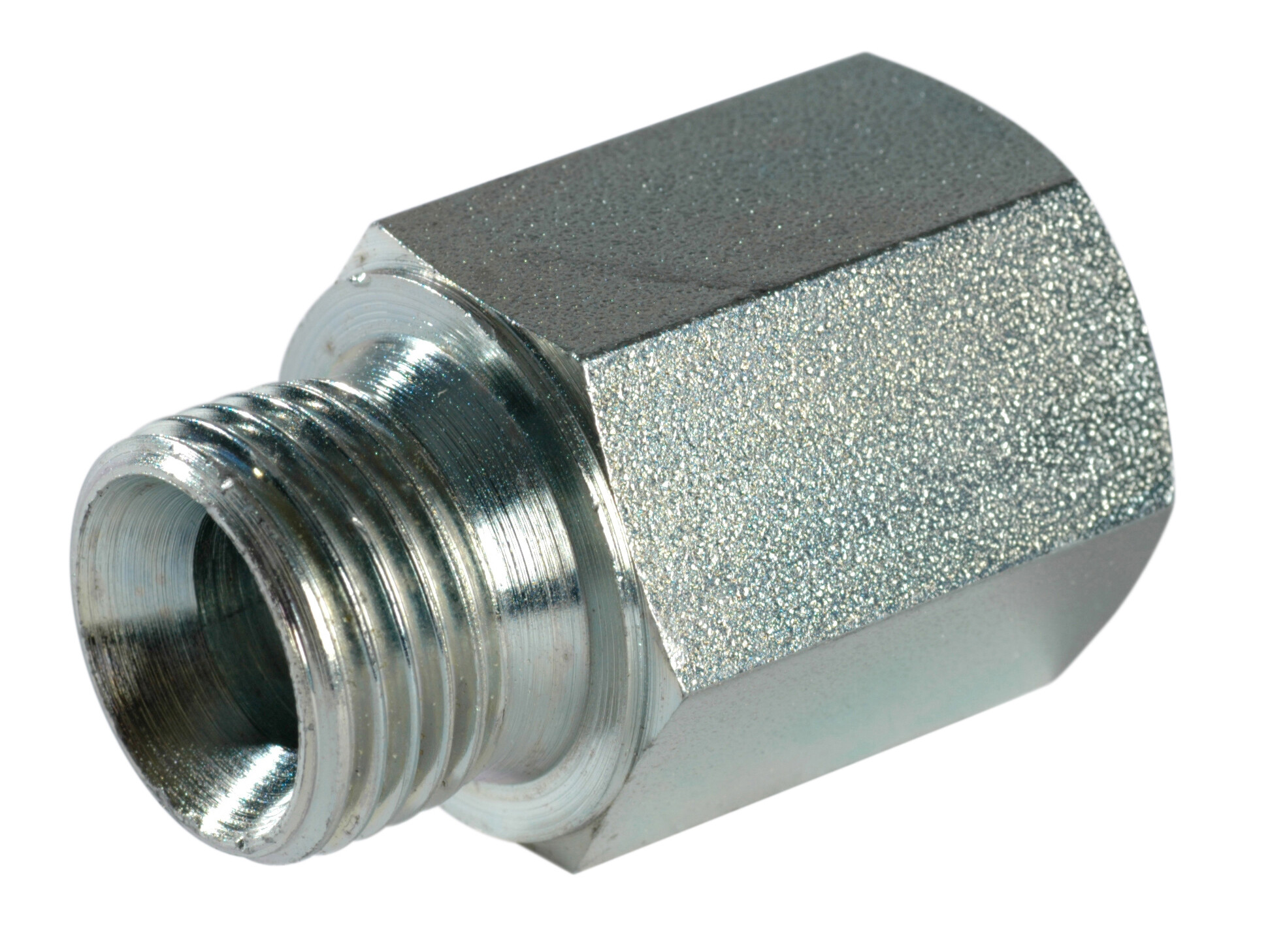

Bushing 1/2 BSPx1/2 BSP 60 gr.
Bushing 1/2 BSPx1/2 BSP 60 gr.
Partnumber:
09BP0808
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
I.M.M Hydraulics
Dimension CH1
27 mm
Dimension L
45 mm
Dimension L2
14 mm
Material
Steel
Model code
2000-08-45
Pressure max.
315 bar
Surface treatment
Electro zinc plated
Temperature max.
+120 °C
Temperature min.
-40 °C
Thread F (See drawing)
G1/2 - BSP
Thread F1 (See drawing)
G1/2 - BSP
Thread inner
G 1/2 BSP
Thread outer
G 1/2 BSP
Package size
0 pcs
Barcode
5704334210689
Gross weight
0,08 Kg
Net weight
0,08 Kg
Country of origin
ITA
Intrastat code
73071110
Bushing 1/2 BSPx1/2 BSP 60 gr.
