Solenoid Valve 152/m NO HSVP16-NOR-H00-00-PN-B-00

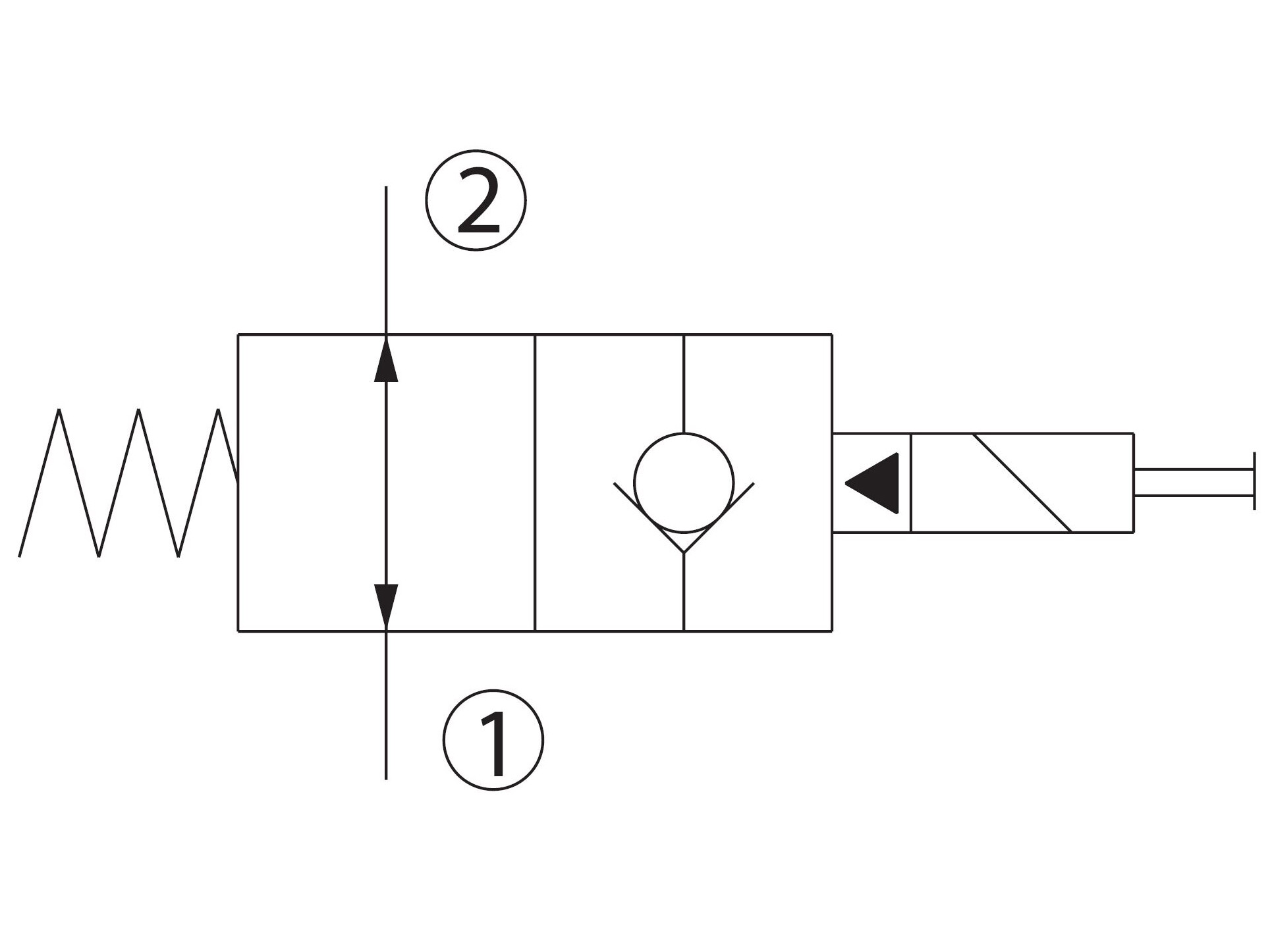

This is a normally open, pilot-operated, poppet-type 16-size solenoid valve with free reverse flow. When de-energized the valve allows flow from port 1 to 2 and from port 2 to 1. When energized, the pilot poppet closes allowing the valve to act as a check valve flowing from port 1 to port 2, while blocking flow from port 2 to 1. This valve comes standard with a push pin type manual override.
Applications:
This is a low leakage valve designed for use in load holding applications or as a general-purpose diverter or dump valve.
Artikelnummer:
83033331
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Activation
Solenoid
Brand Name
Danfoss
Cavity
SDC16-2
Contamination level max.
20/18/14 - ISO 4406
Filter built-in
No
Flow rate nominal LMin
152 lpm
Manual operated
No
Model code
HSVP16-NOR-H00-00-PN-B-00
Number of ways/positions
2/2
Oil viscocity recommended
12 - 54 cSt
Pressure max.
350 bar
Sealing material
NBR
Solenoidtype
H16
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
205 - 225 Nm
Valve type
NO - Normally open
Förpackningsstorlek
0 pcs
Streckkod
5704334465676
Bruttovikt
0,37 Kg
Nettovikt
0,37 Kg
Ursprungsland
ITA
Intrastat artikelkod
85051990
This is a normally open, pilot-operated, poppet-type 16-size solenoid valve with free reverse flow. When de-energized the valve allows flow from port 1 to 2 and from port 2 to 1. When energized, the pilot poppet closes allowing the valve to act as a check valve flowing from port 1 to port 2, while blocking flow from port 2 to 1. This valve comes standard with a push pin type manual override.
Applications:
This is a low leakage valve designed for use in load holding applications or as a general-purpose diverter or dump valve.
