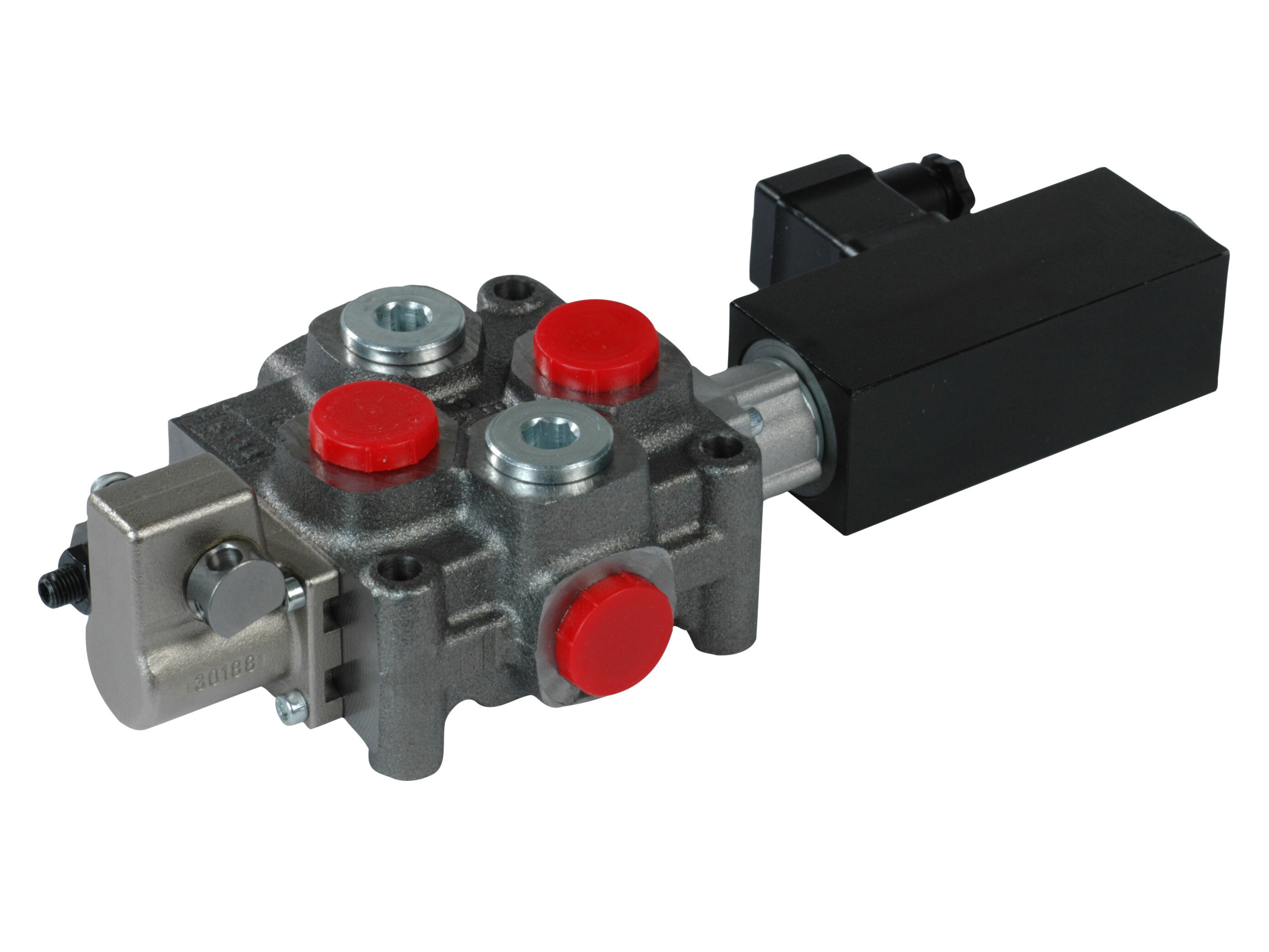

Q45-F1S(N)-111/A1/D41/12V-F3D

1-section Q45 monoblock directional valve with built-in pressure relief valve. Manually and solenoid activated.

Spool function: Double acting with port A and B open to T in neutral position. Spring centered.

Open center port P to T in neutral position.

Artikelnummer:
045-1103

Förpackningsstorlek:
0 pcs

Minsta beställningskvantitet:
1 pcs
Lever Q30
Partnumber: 030-A
Activation
Manual, Solenoid

Brand Name
Walvoil

Contamination level max.
16/14/12 - ISO 4406

Current type
DC

Dimension E
76 mm

Dimension F
107 mm

Flow rate nominal LMin
50 lpm

Lever
Exclusive

Material
Cast iron

Model code
Q45-F1S(N)-111/A1/D41/12V-F3D

Number of sections
1

Oil viscocity recommended
10 - 400 cSt

Port P
G 1/2 BSP

Port P1
G 1/2 BSP

Port T
G 1/2 BSP

Port T1
G 1/2 BSP

Pressure T max.
25 bar

Pressure carry-over
No

Pressure max.
300 bar

Pressure relief valve
Yes

Pressure setting max.
200 bar

Pressure setting min.
100 bar

Temperature max.
+80 °C

Temperature min.
-30 °C

Voltage
12 V

Working ports
G 1/2 BSP
Package size
0 pcs

Barcode
5704295865737

Gross weight
4,25 Kg

Net weight
4,25 Kg

Country of origin
ITA

Intrastat code
84812010

1-section Q45 monoblock directional valve with built-in pressure relief valve. Manually and solenoid activated.

Spool function: Double acting with port A and B open to T in neutral position. Spring centered.

Open center port P to T in neutral position.
