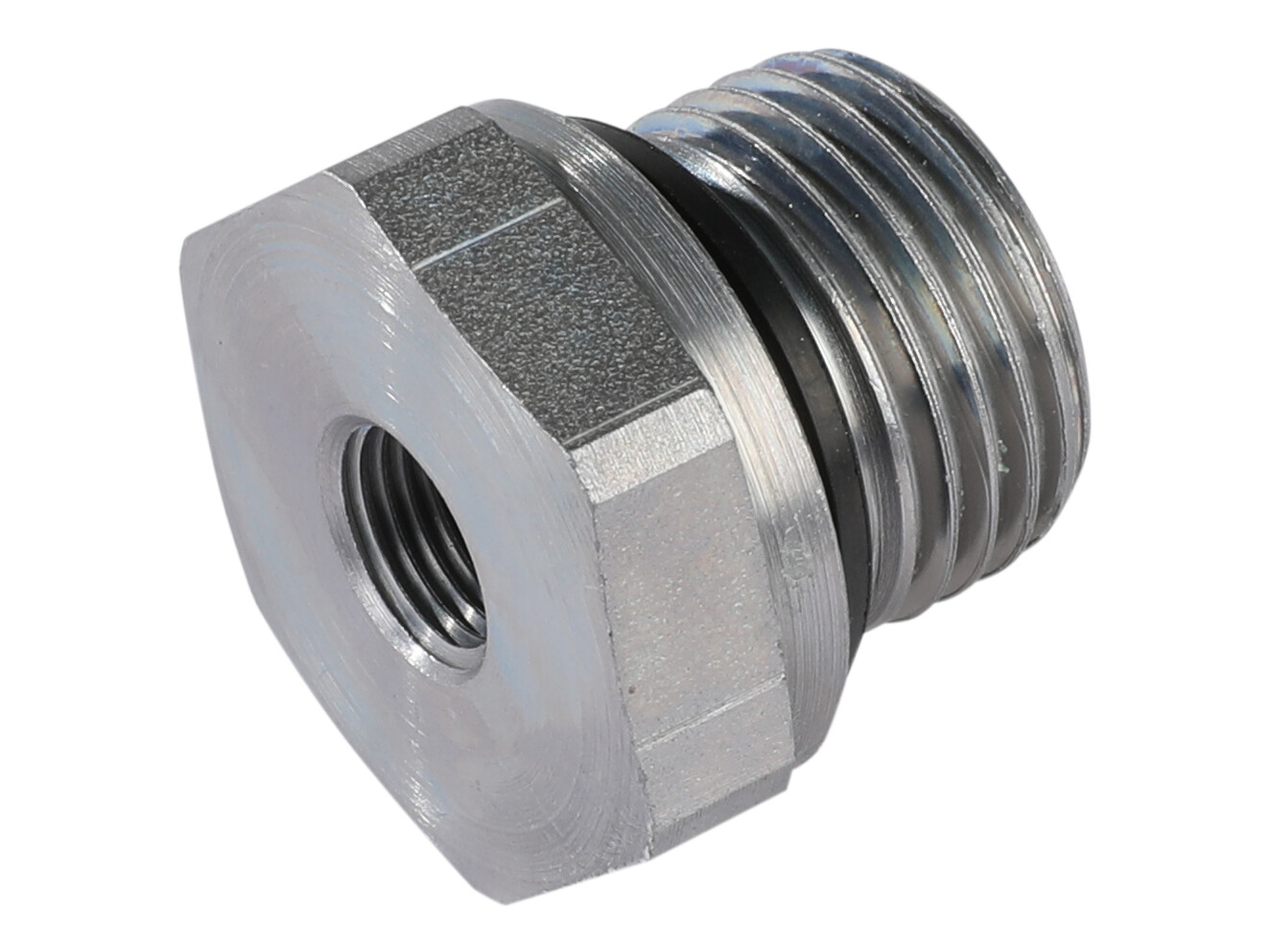

Reduktion - 1/2" BSP x 1/8" BSP indv - WD pakning

Reduktion - 1/2" BSP x 1/8" BSP indv - WD pakning

Partnumber:

RI1/2WD1/8

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Dimension L1

24 mm

Dimension L2

8 mm

Dimension S1

27 mm

Dimension i

14 mm

Gevind indvendig

G 1/8 BSP

Gevind udvendig

G 1/2 BSP

Korrosions resistens

1200 hours salt spray DIN EN ISO 9227

Længde

24 mm

Materiale

Stål

Model kode

FI-RED-R1/2-WD-R1/8-B-W3

Mærke navn

Stauff

Overfladebehandling

Zink-Nikkel belagt

Pakningsmateriale

NBR

REACH compliant

RoHs compliant

Sekskant

27 mm

Sikkerhedsfaktor

Temperatur maks.

+100 °C

Temperatur min.

-35 °C

Thread T1

G 1/2 BSP

Thread T2

G 1/8 BSP

Totallængde

24 mm

Tryk maks.

630 bar

Type

Kort

Vinkel

0 °

Package size

0 pcs

Barcode

5704295276892

Gross weight

0,07 Kg

Net weight

0,07 Kg

Country of origin

DEU

Intrastat code

73071110

Product information
Measure sketch

Reduktion - 1/2" BSP x 1/8" BSP indv - WD pakning

Note: Opening 3D files requires a program that supports the file format
