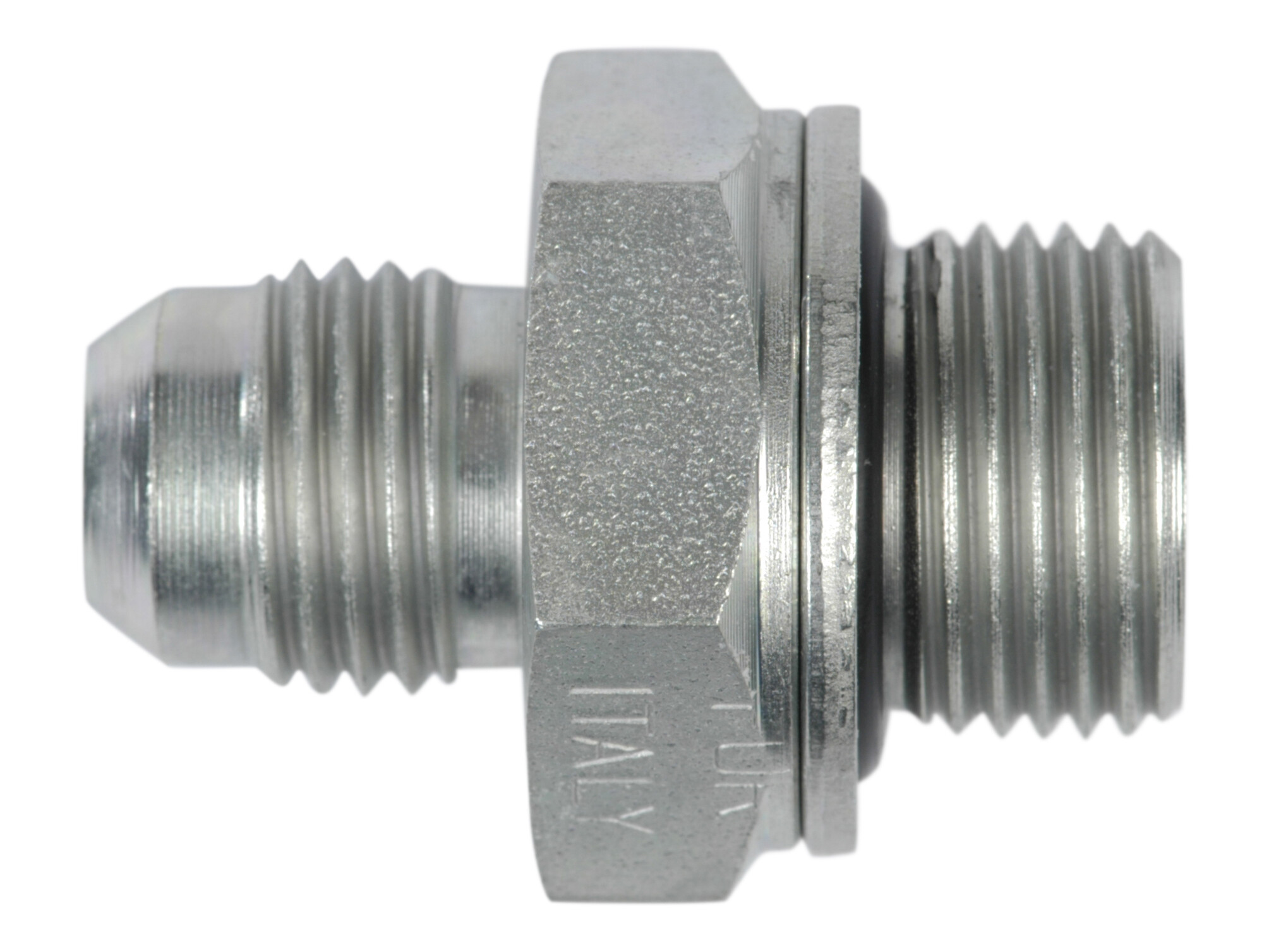

Indskruning 9/16-18 JIC udv x 3/8 BSP udv NW24
Indskruning 9/16-18 JIC udv x 3/8 BSP udv NW24
Partnumber:
M-10-3/8
Package size:
0 pcs
Min. order quantity is:
1 pcs
Diameter rör
10 mm
Dimension A
34.5 mm
Dimension B
14 mm
Dimension CH
22 mm
Dimension D
10 mm
Dimension F
G 3/8 BSP
Dimension J
9/16-18 JIC
Dimension T
10 mm
Gänga
G 3/8 BSP
Gänga utv.
9/16-18 JIC
Gänga utv.
G 3/8 BSP
Märke namn
FOR
Rostbeständighet
1400 hours salt spray DIN EN ISO 9227
Tillverkningsmaterial
Stål
Tryck max.
350 bar
Vinkel
0 °
Ytskiktbehandling
El-forzinket / hvidkromatiseret
Package size
0 pcs
Barcode
5704334233565
Gross weight
0,05 Kg
Net weight
0,05 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 9/16-18 JIC udv x 3/8 BSP udv NW24
