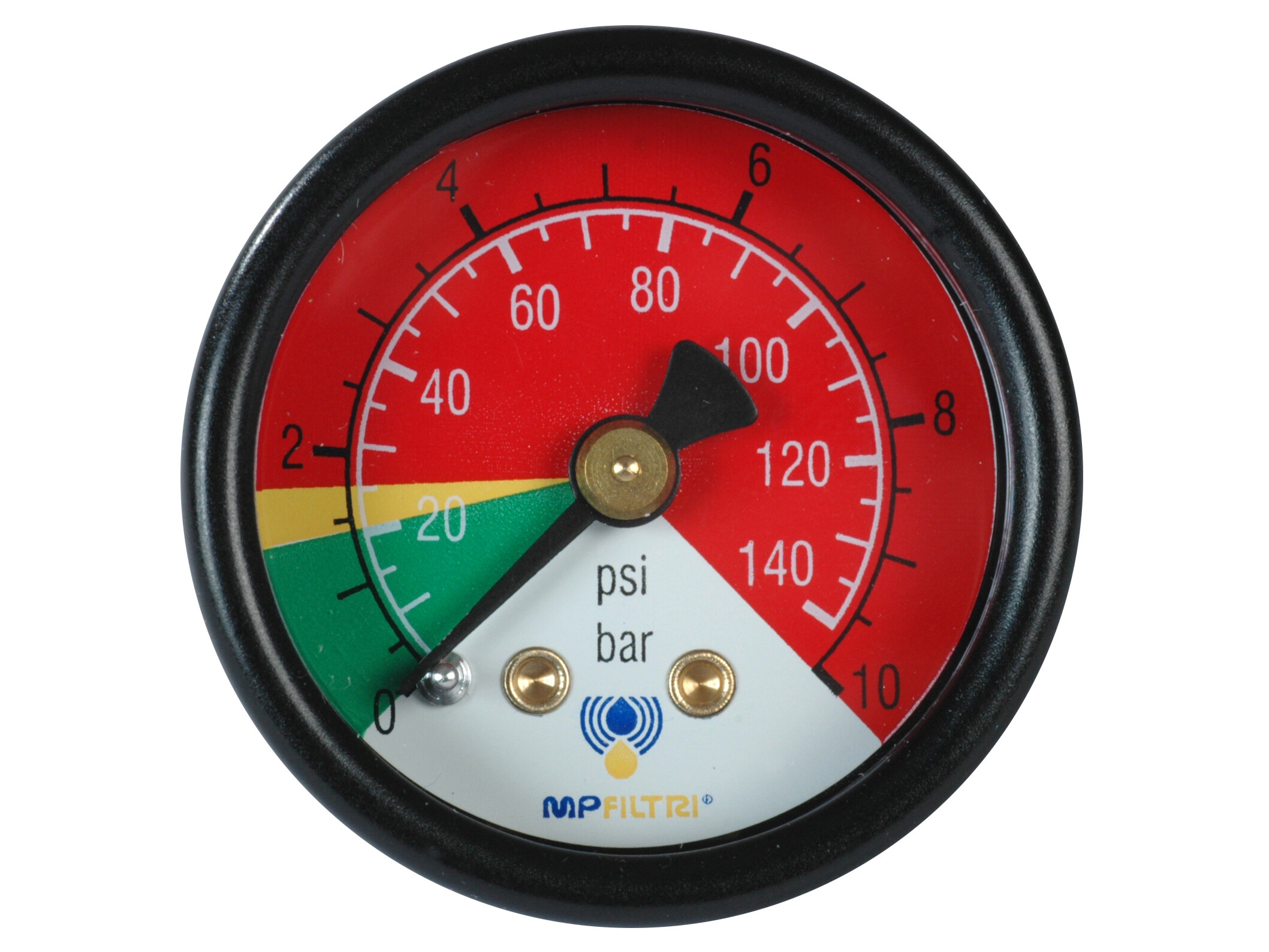

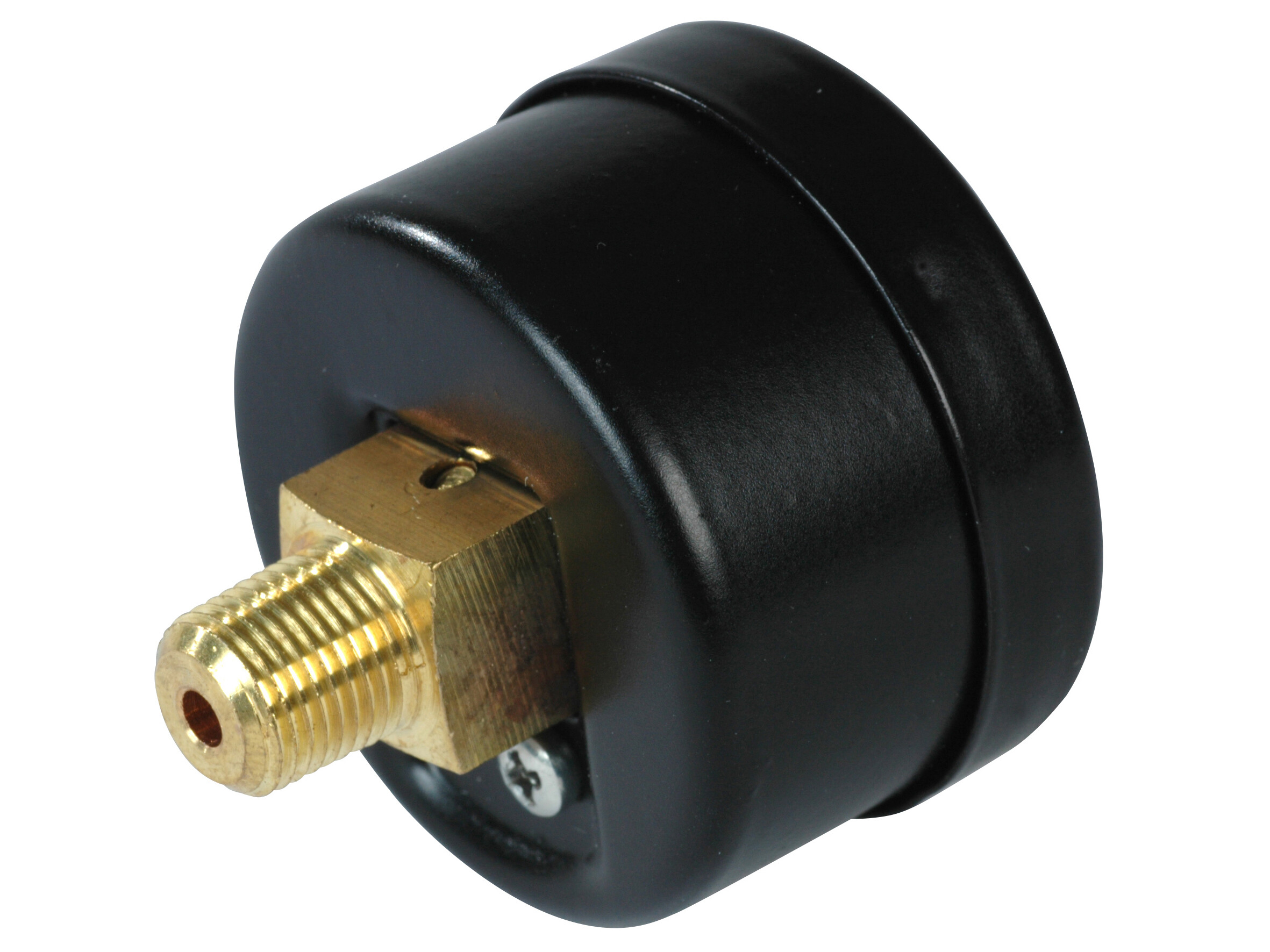

Trykindikator - 0-6 bar - 1/8" BSPT - tilslut: bagud
Til filtre med 1,75 bypass fjeder.
Partnumber:
BVA14P01
Package size:
0 stk
Min. order quantity is:
1 stk
Area of use
Mineralolie, Syntetiske hydraulikvæsker
Brand Name
MP Filtri
Diameter
43 mm
Fits to
MPF, MPT, MST
Material
Kobberlegering, Messing, Plast, Stål
Model code
BVA14P01
Port position
Bagud
Pressure Measurement Bar
0 - 6 Bar
Pressure max.
10 bar
Pressure static max.
7 bar
Temperature ambient max.
+60 °C
Temperature ambient min.
-40 °C
Temperature storage max.
+60
Temperature storage min.
-40
Temperature working fluid max.
+60 °C
Thread
R 1/8 BSPT
Type
Manometer
Package size
0 stk
Barcode
5704334454670
Gross weight
1,00 Kg
Net weight
1,00 Kg
Country of origin
ITA
Intrastat code
84213985
Til filtre med 1,75 bypass fjeder.
Note: Opening 3D files requires a program that supports the file format
