Indskruning - ø15L x 1/2" NPT - AISI 316Ti
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Varenummer:
A15LNPTX/71
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs

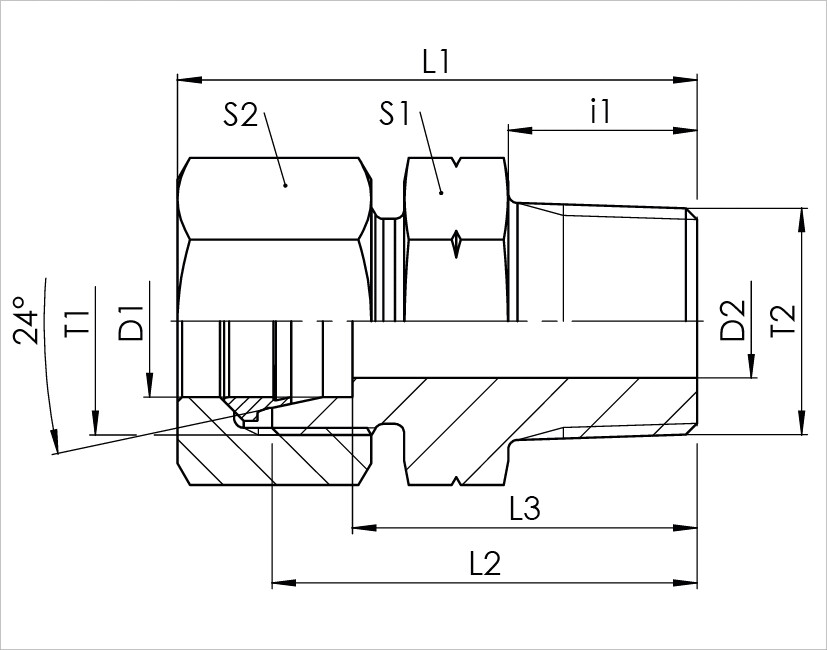

Diameter rør
15 mm
Dimension D1
15 mm
Dimension D2
11 mm
Dimension L1
46.5 mm
Dimension L2
38 mm
Dimension L3
31 mm
Dimension S1
24 mm
Dimension S2
27 mm
Dimension i
20 mm
Gevind T1
M22x1,5
Gevind T2
1/2 NPT
Gevind udvendig
1/2 NPT
Gevind udvendig metrisk
M22x1,5
Materiale
Syrefast Stål
Materialekvalitet
1.4571 / AISI316Ti
Model kode
XGEV 15 L 1/2 NPT
Mærke navn
Volz
REACH compliant
Ja
RoHs compliant
Ja
Serie
L
Sikkerhedsfaktor
4
Temperatur maks.
+400 °C
Temperatur min.
-60 °C
Tryk maks.
315 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704295910192
Gross weight
0,11 Kg
Net weight
0,11 Kg
Country of origin
DEU
Intrastat code
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Note: Opening 3D files requires a program that supports the file format
