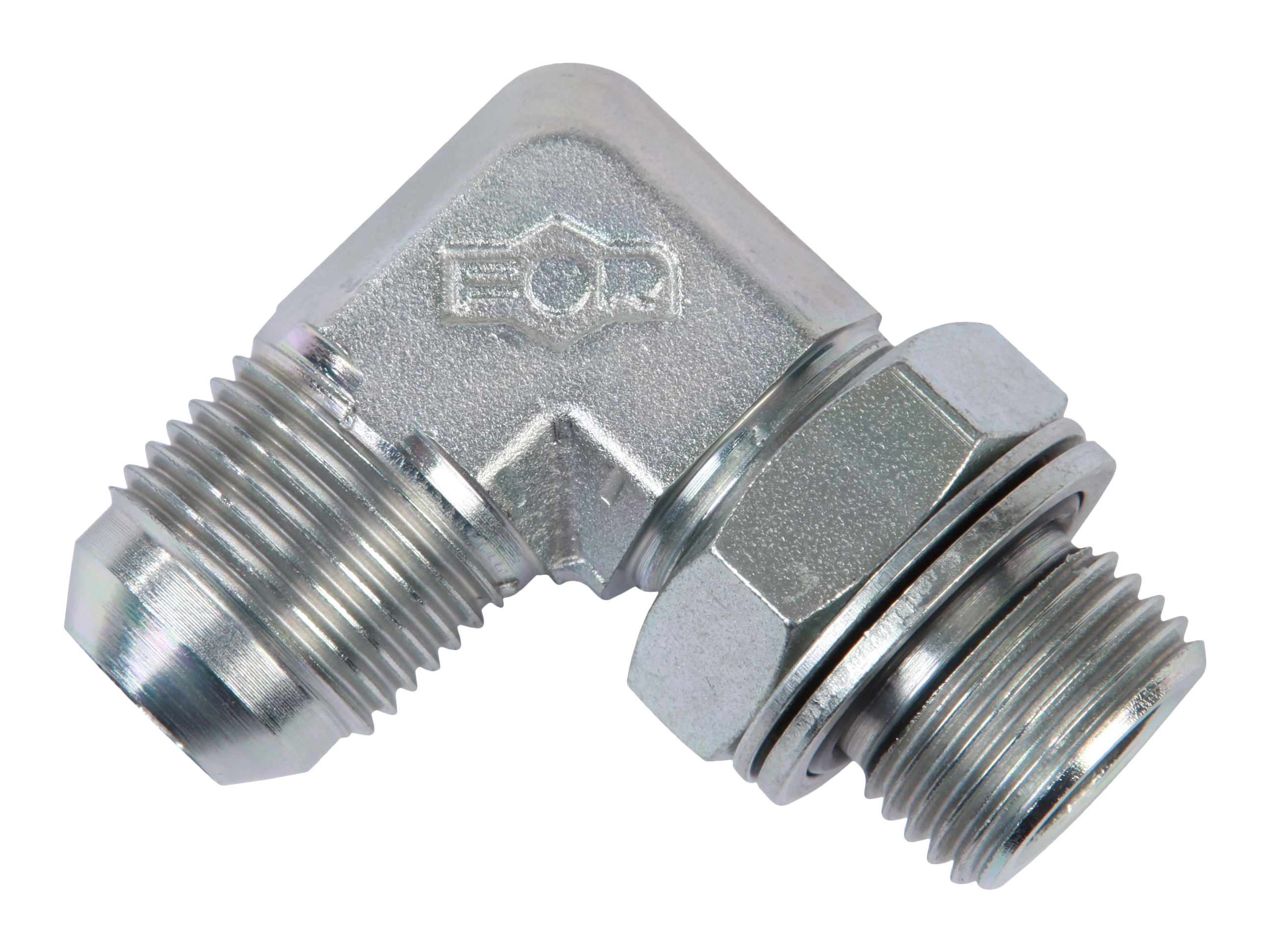

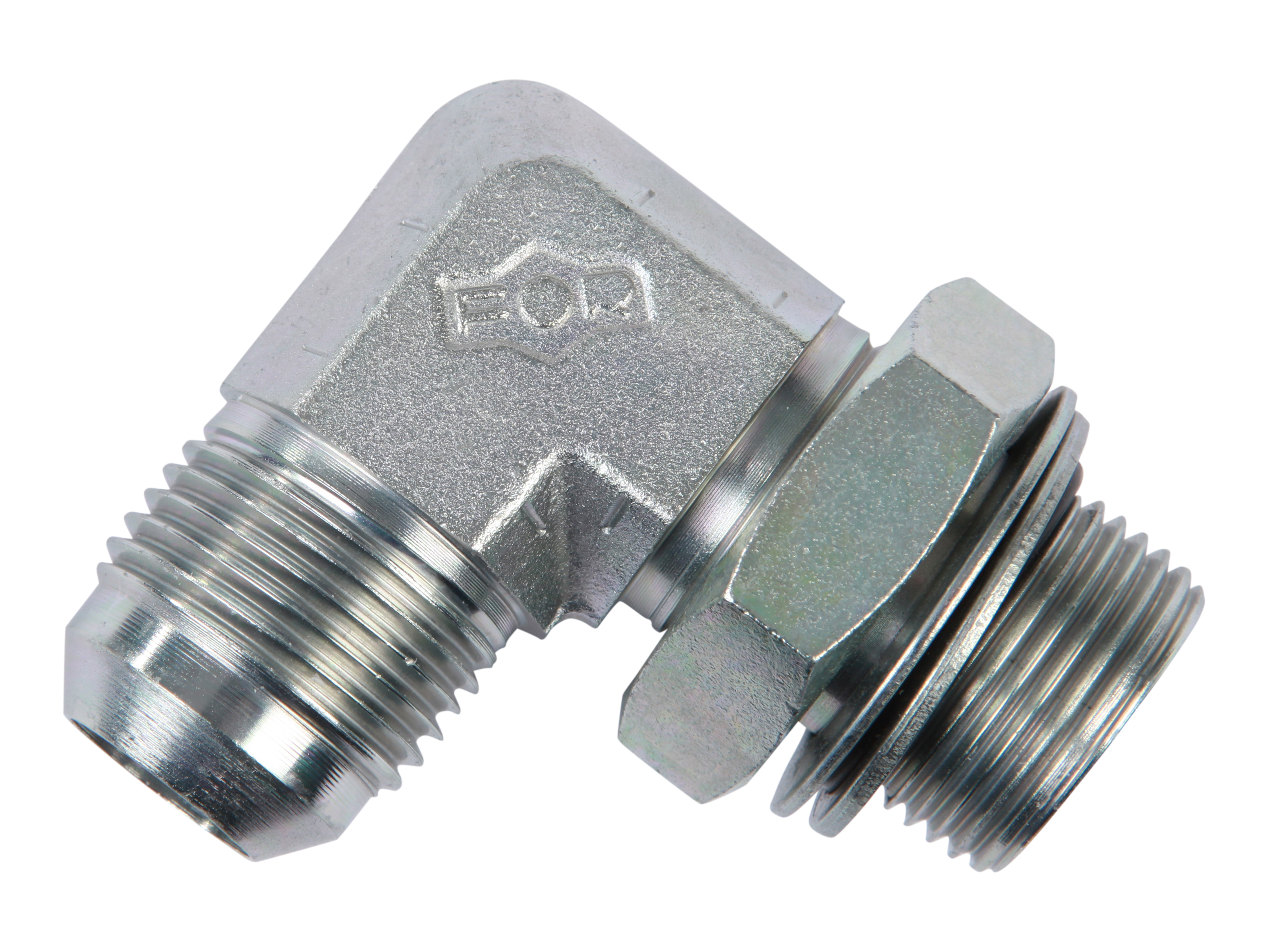

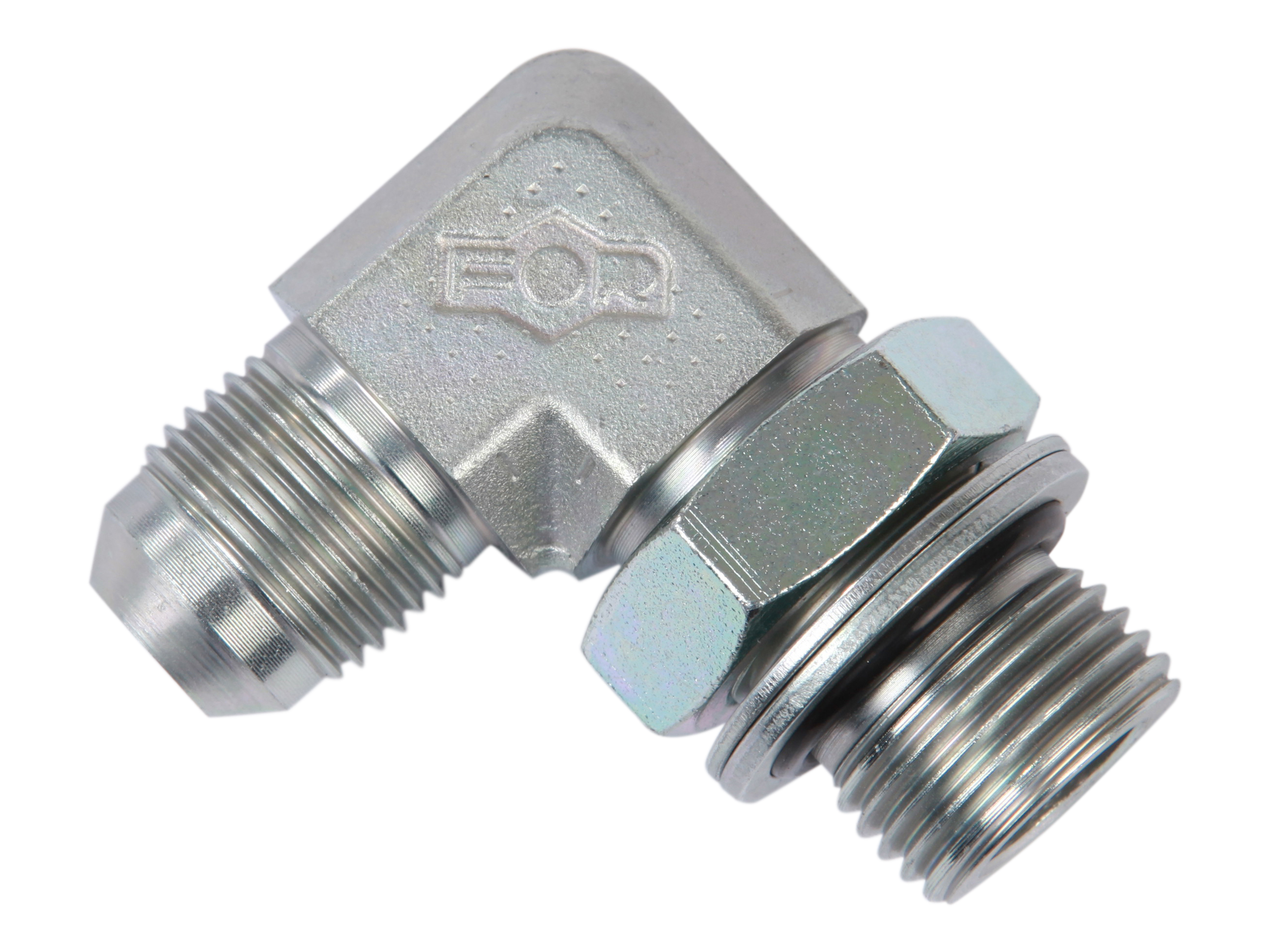

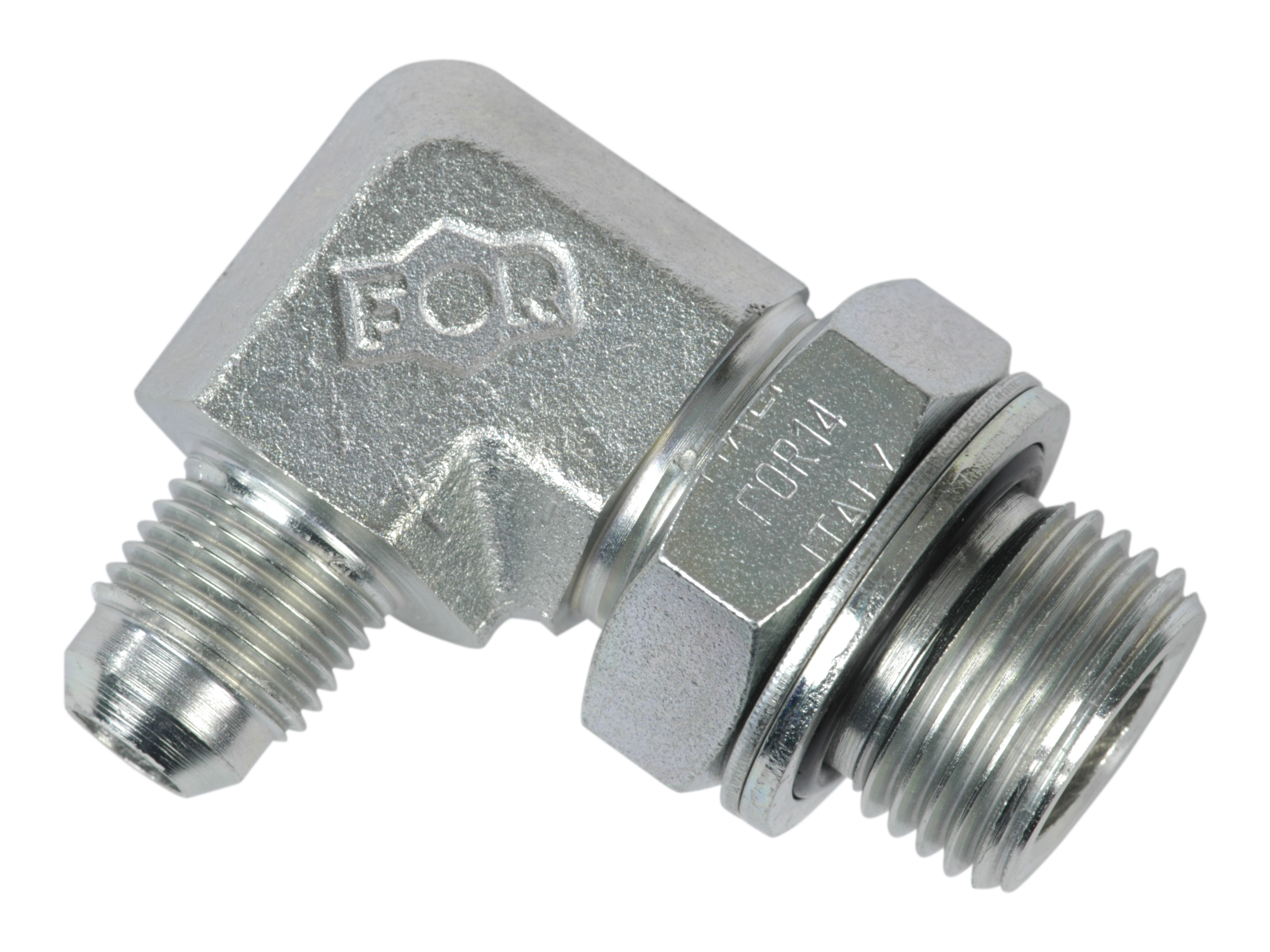

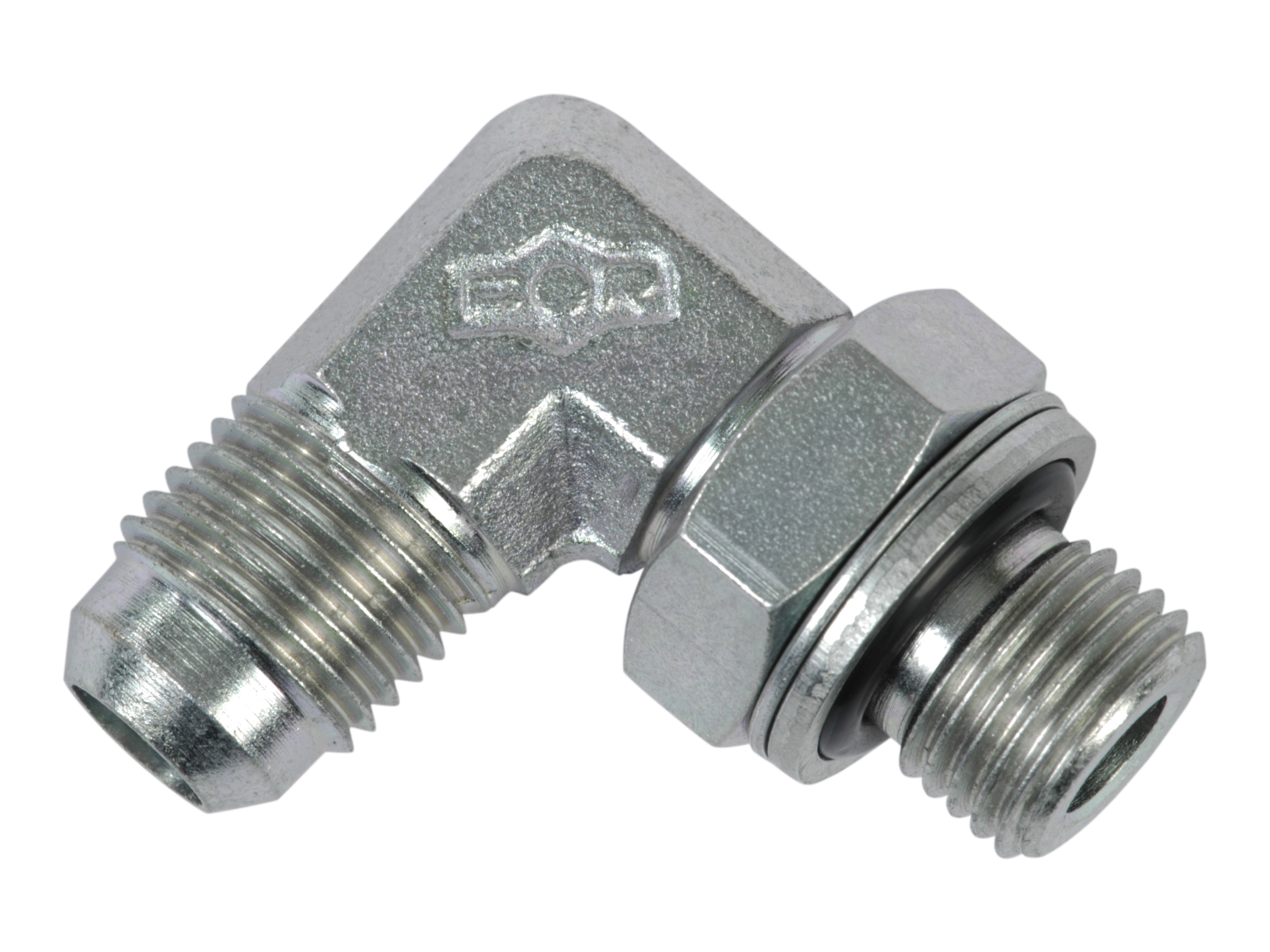

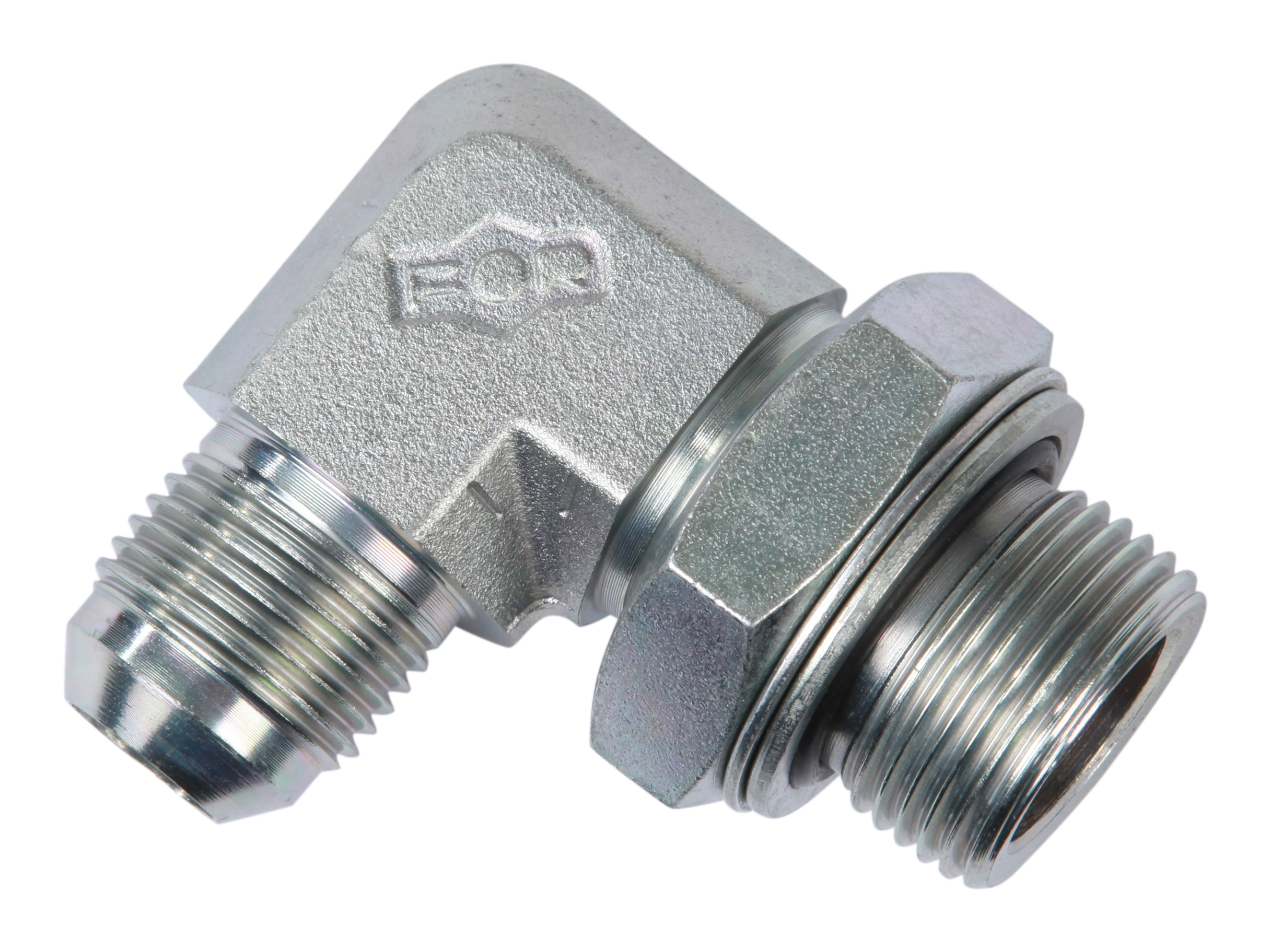

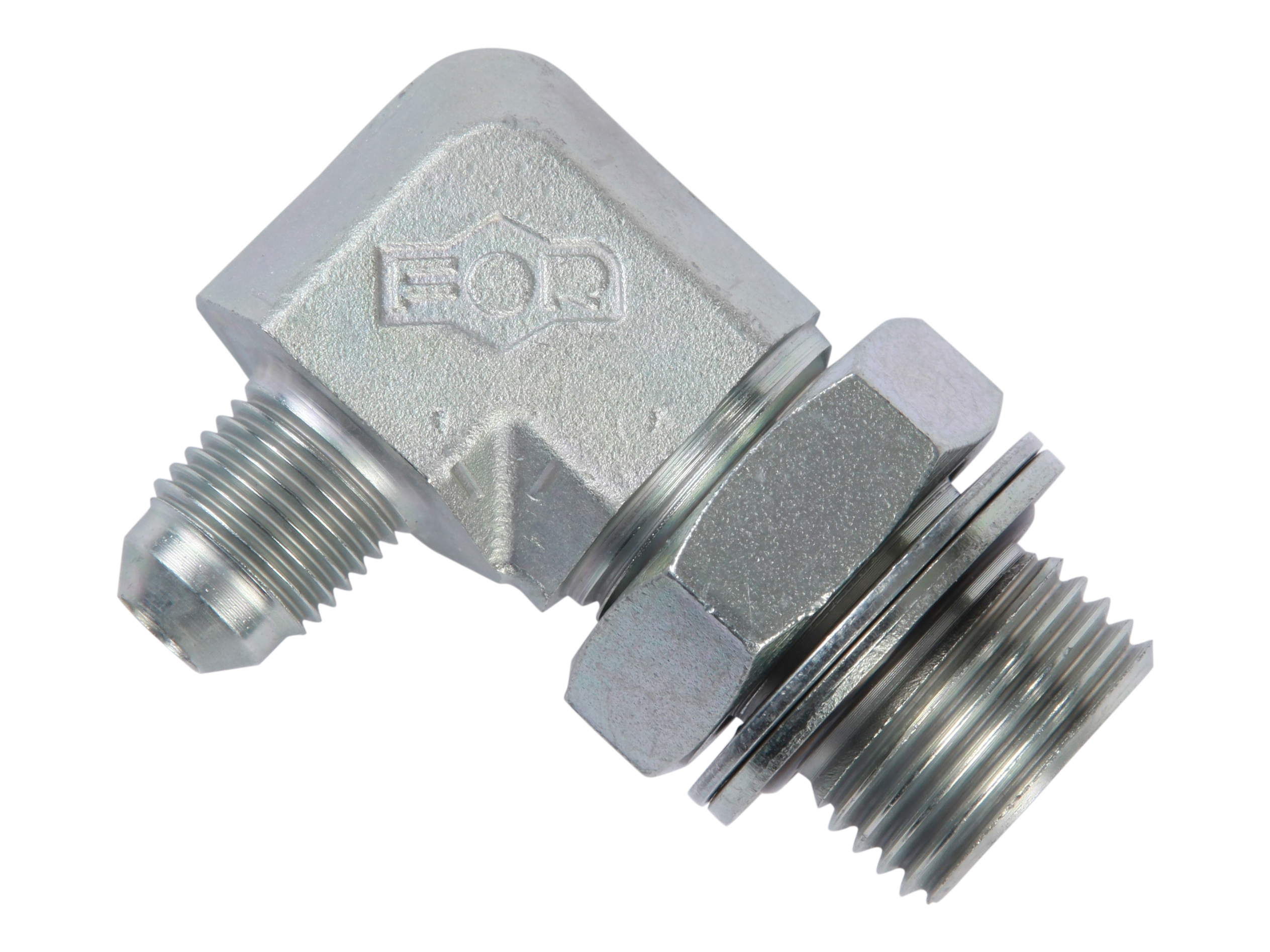

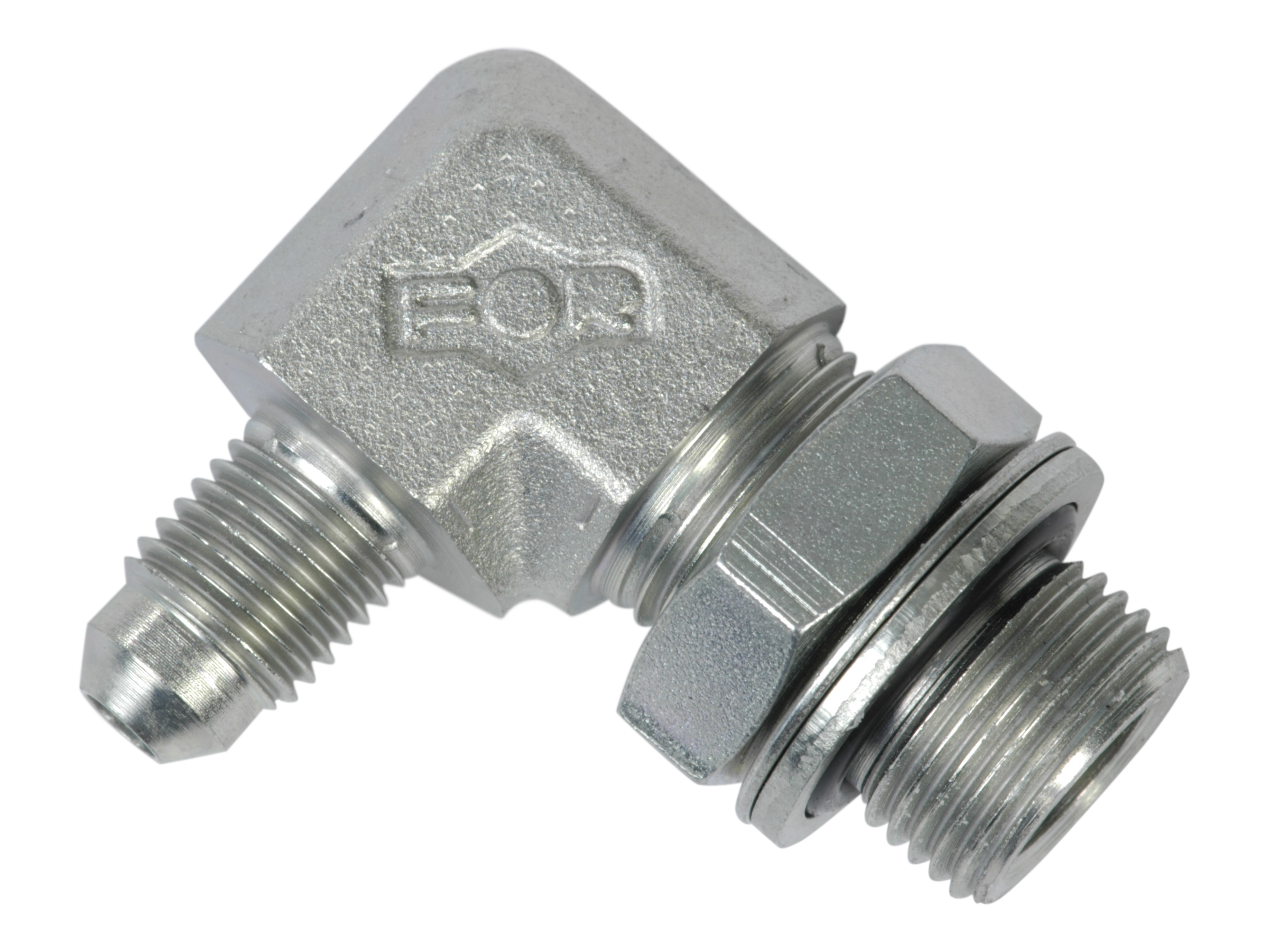

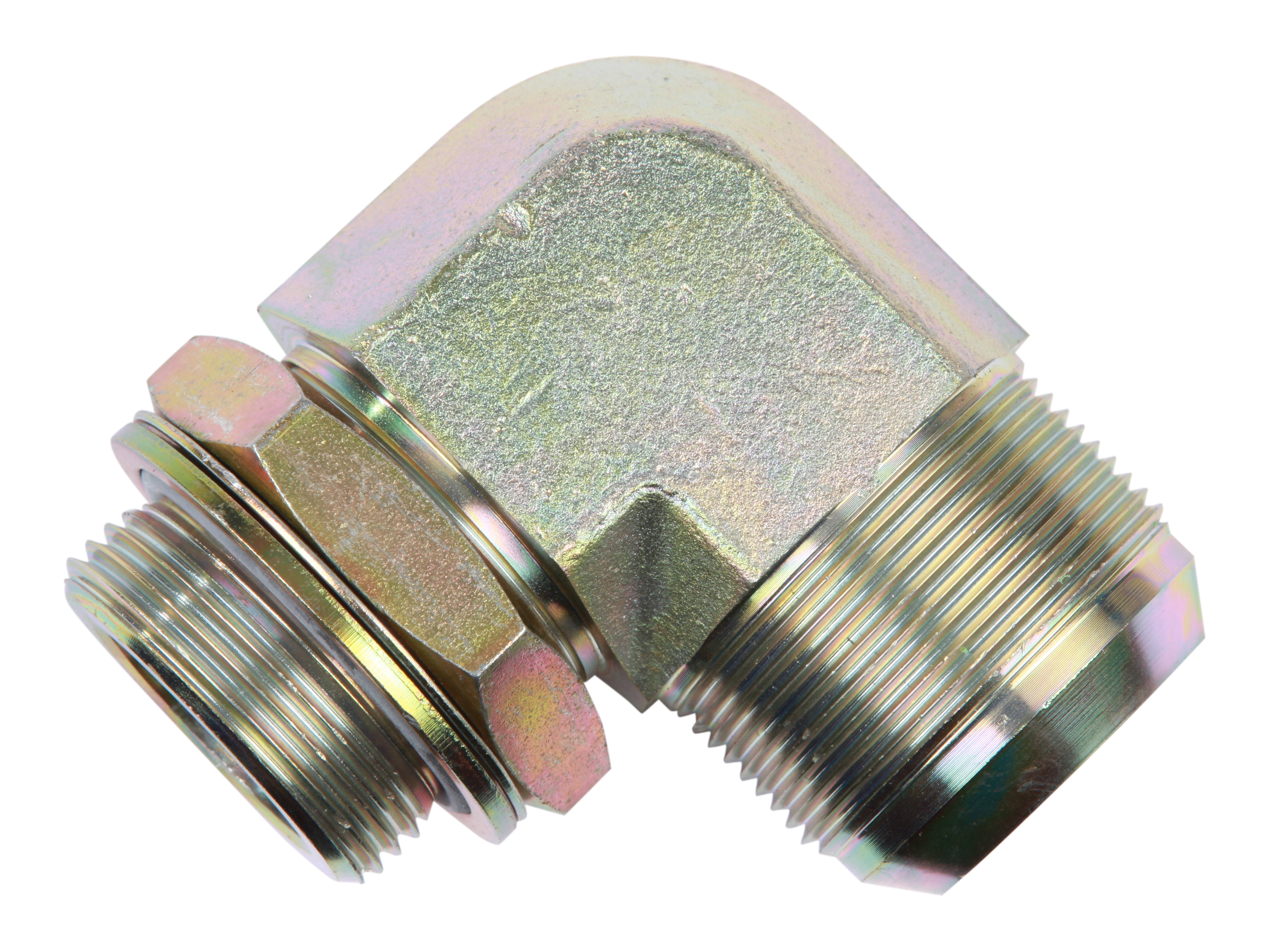

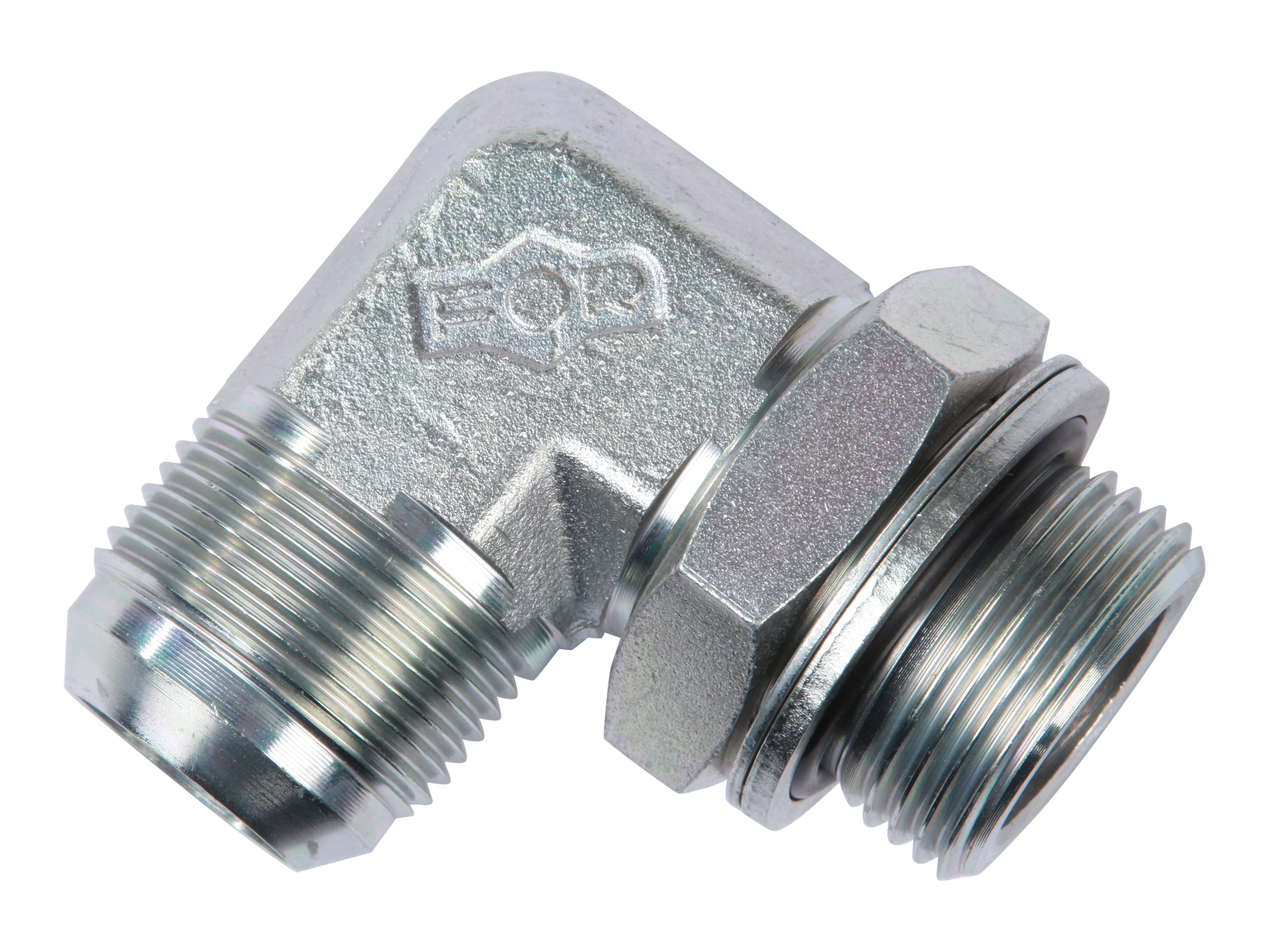

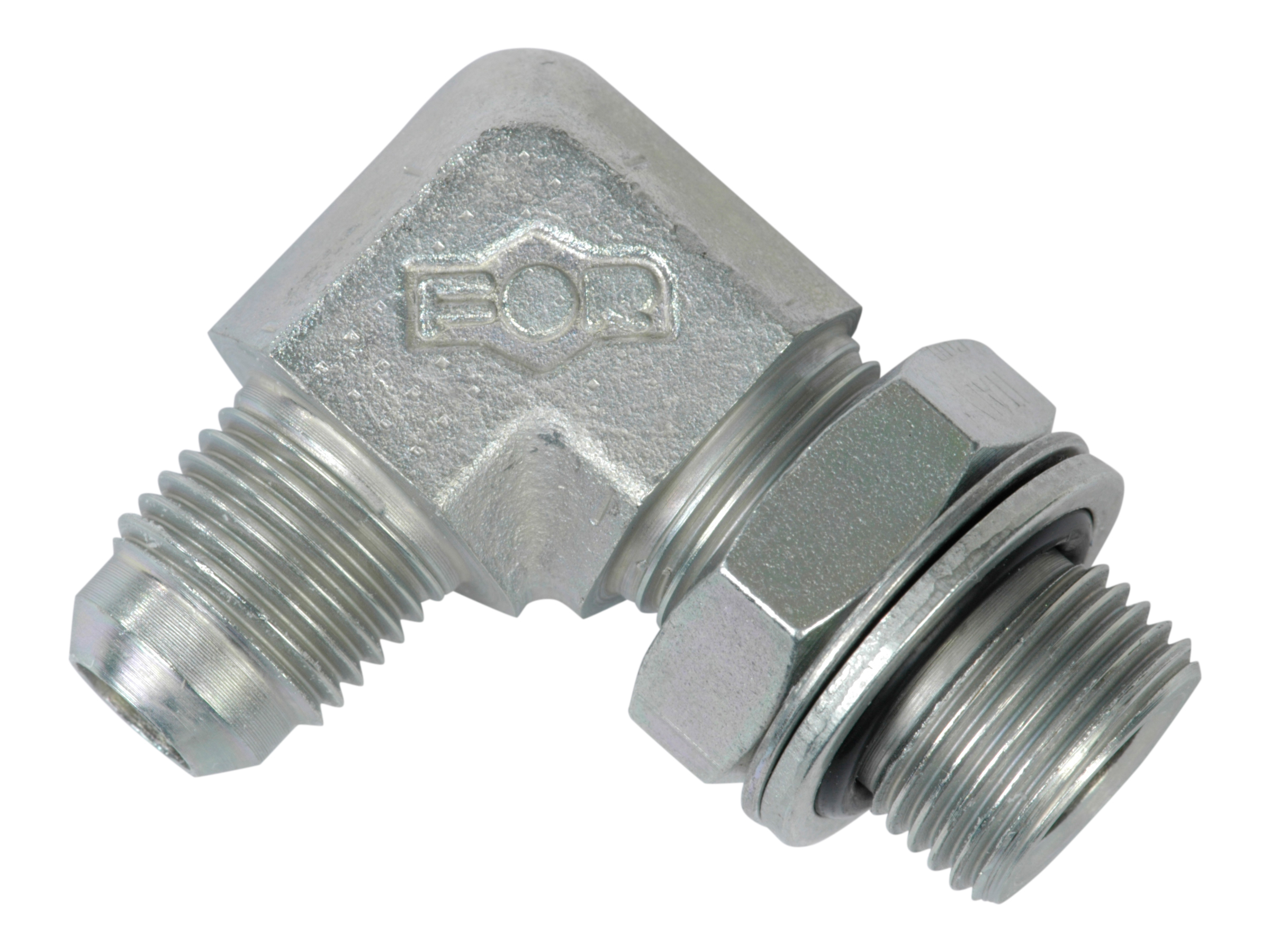

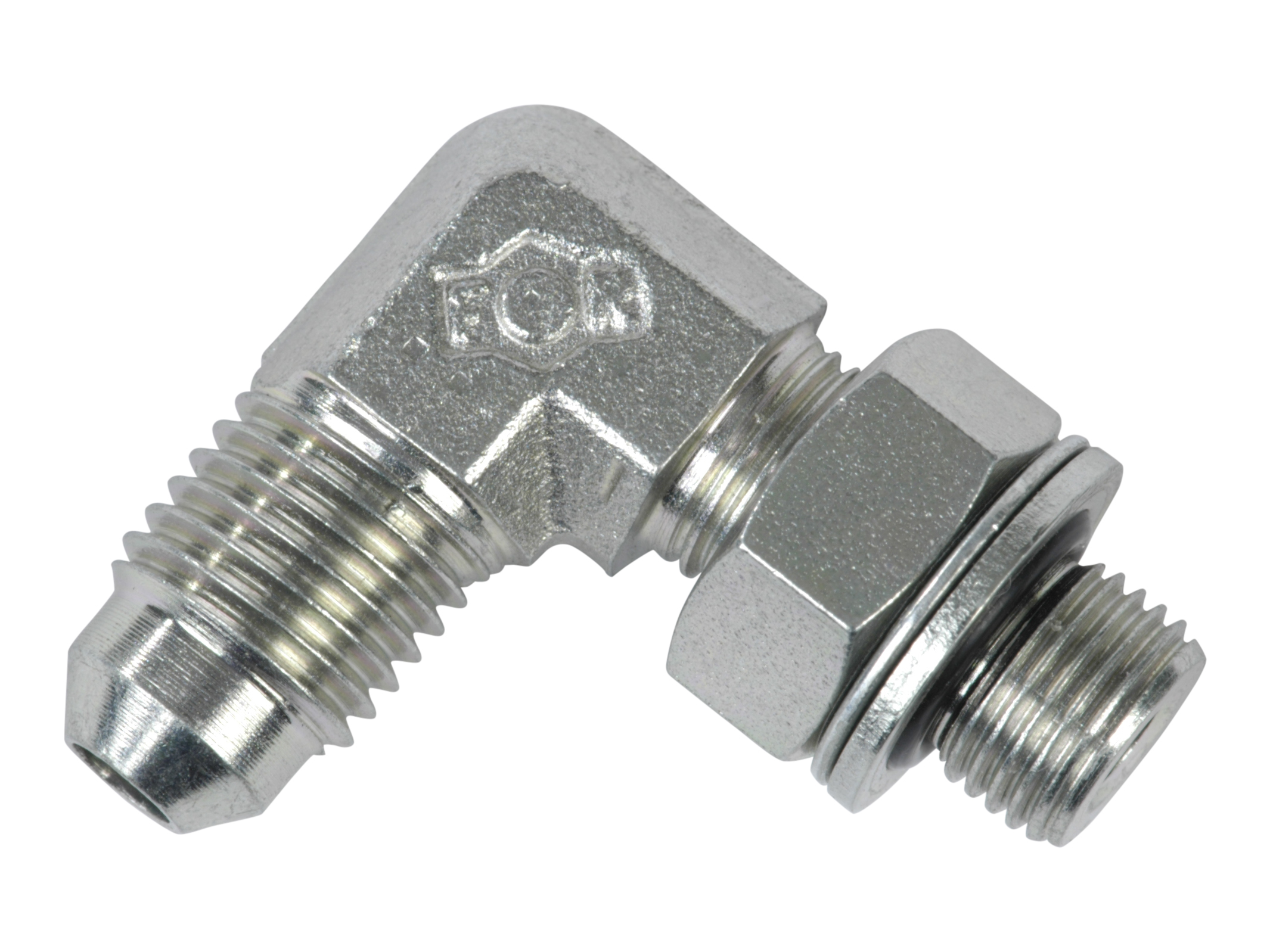

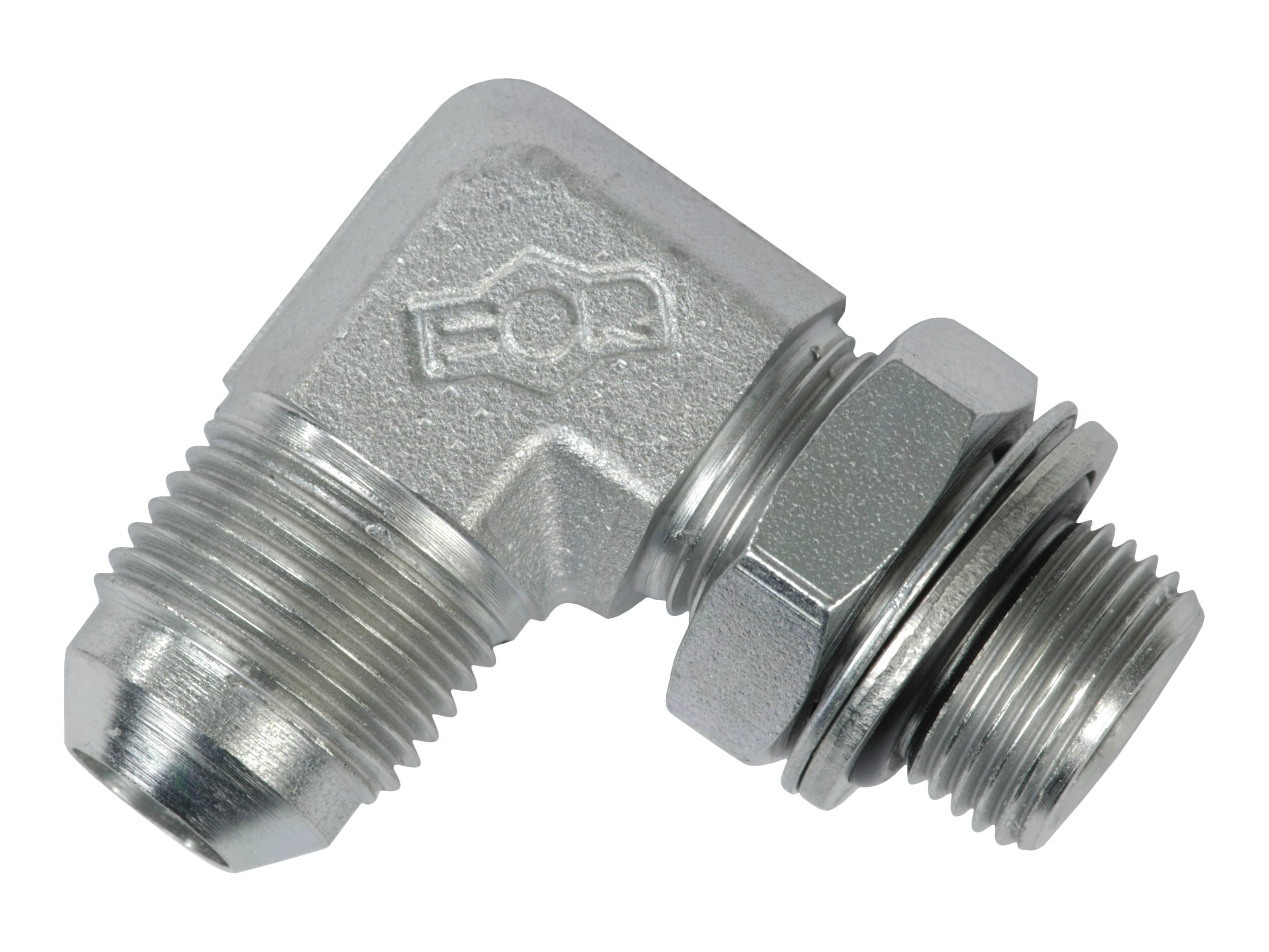

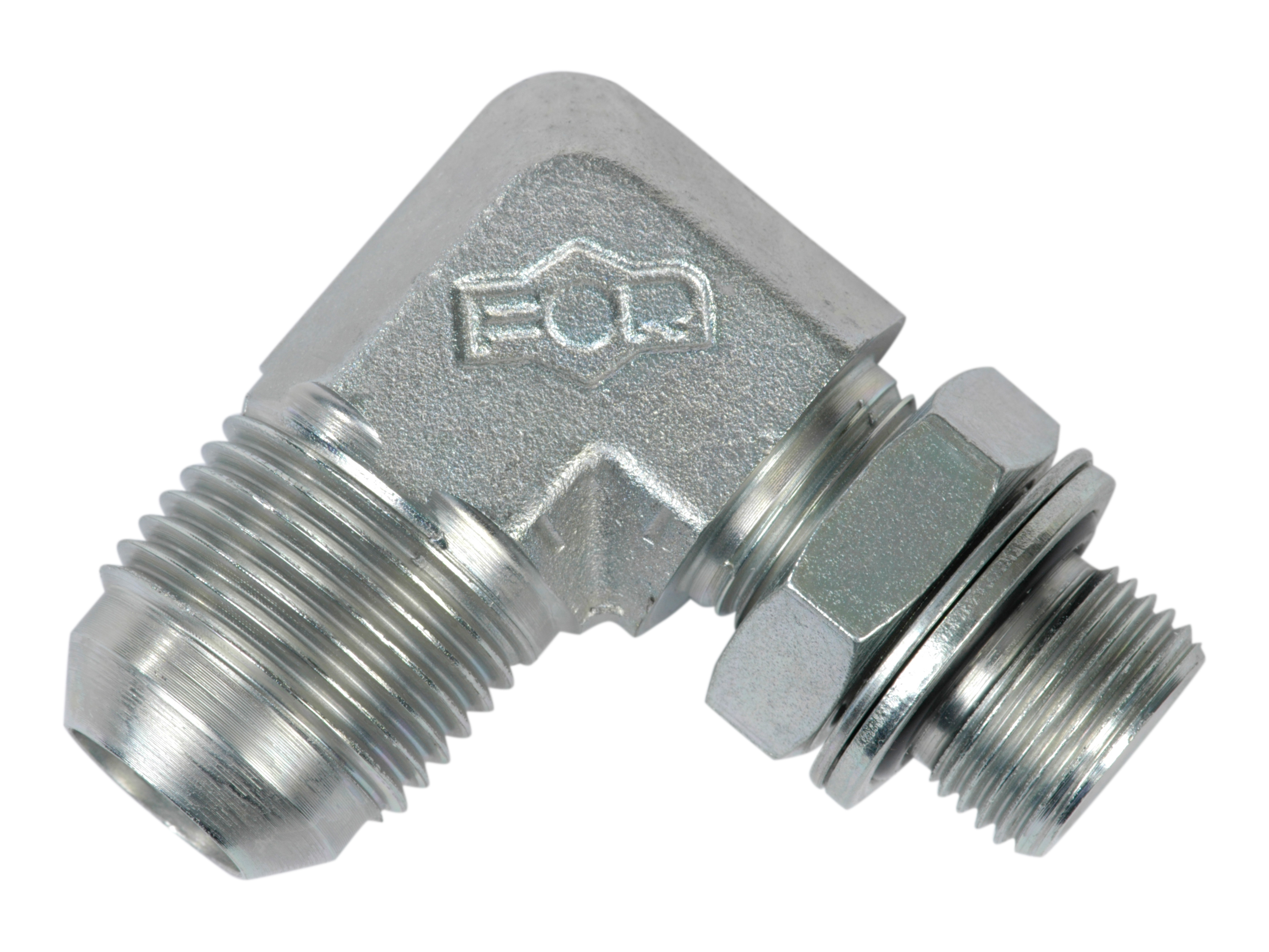

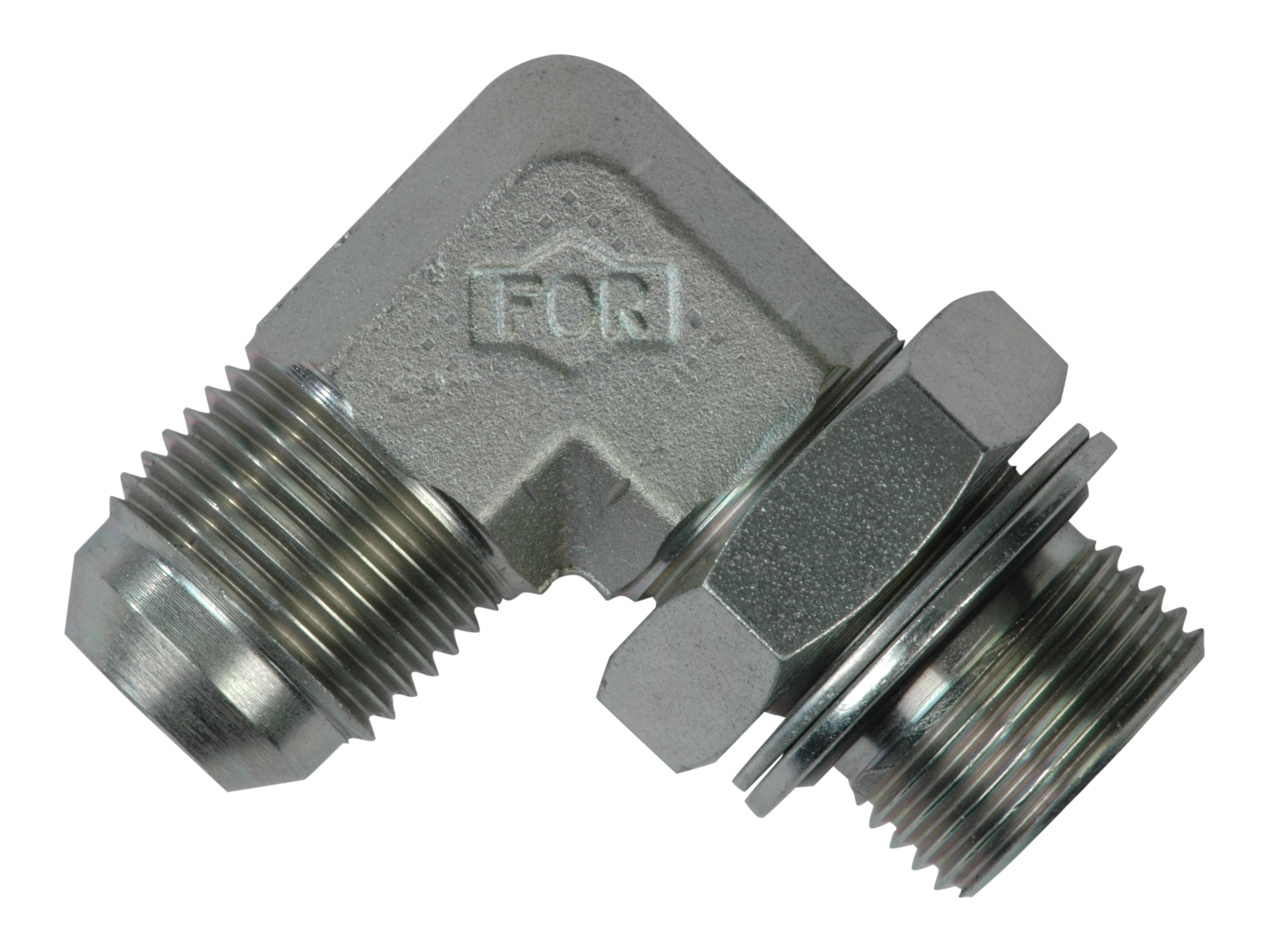

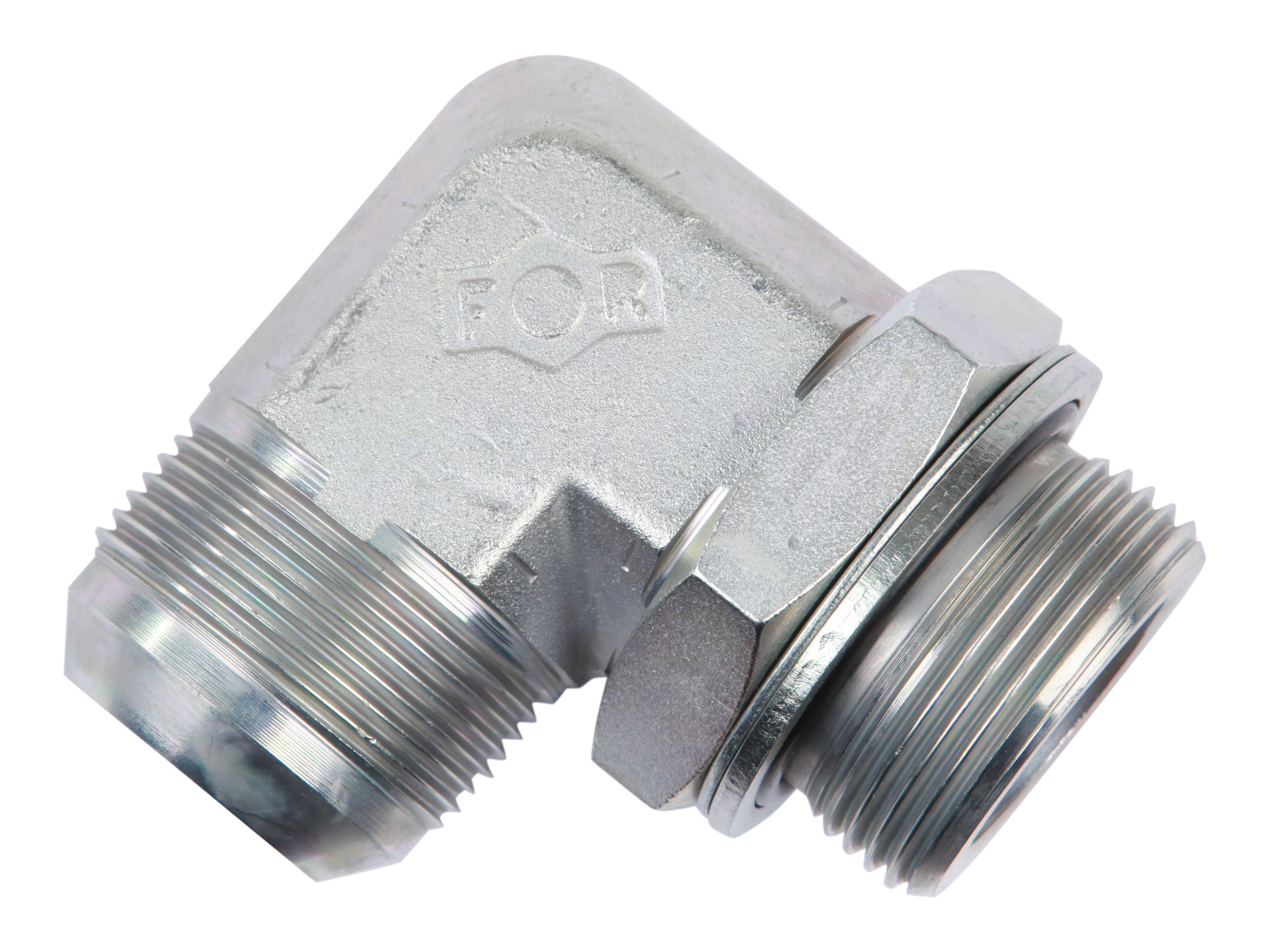

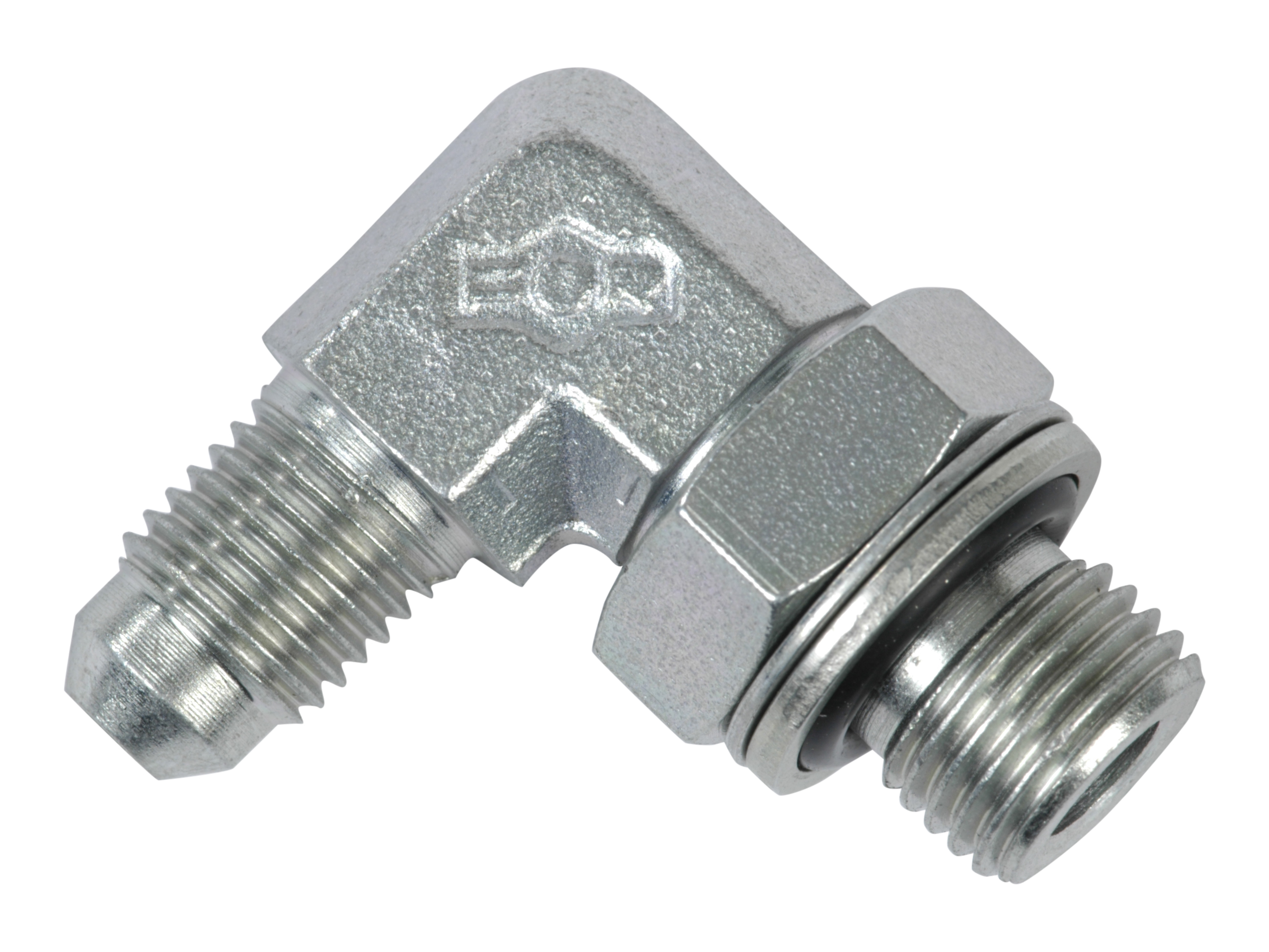

Elbow adapter 90° JIC male x BSP male adjustable - CO / JWEE

Elbow adapter 90° JIC male x BSP male adjustable - CO / JWEE

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Thread outer Brand Name
CO-06-1/4 S600-06-13G elbow 6 mm G 1/4 BSP 7/16-20 JIC FOR
CO-06-1/8 S600-06-10G elbow 6 mm G 1/8 BSP 7/16-20 JIC FOR
CO-06-3/8 S600-06-17G elbow 6 mm G 3/8 BSP 7/16-20 JIC FOR
CO-08-1/2 S575-08-12U elbow 8 mm G 1/2 BSP 1/2-20 JIC FOR
CO-08-1/4 S600-08-13G elbow 8 mm G 1/4 BSP 1/2-20 JIC FOR
CO-10-1/2 S600-10-21G elbow 10 mm G 1/2 BSP 9/16-18 JIC FOR
CO-10-1/4 S600-10-13G elbow 10 mm G 1/4 BSP 9/16-18 JIC FOR
CO-10-3/8 S600-10-17G elbow 10 mm G 3/8 BSP 9/16-18 JIC FOR
CO-12-1/2 S600-12-21G elbow 12 mm G 1/2 BSP 3/4-16 JIC FOR
CO-12-1/4 S600-12-13G elbow 12 mm G 1/4 BSP 3/4-16 JIC FOR
CO-12-3/4BSP S600-12-26G elbow 12 mm G 3/4 BSP 3/4-16 JIC FOR
CO-12-3/8 S600-12-17G elbow NW22 12 mm G 3/8 BSP 3/4-16 JIC FOR
CO-16-1/2 S600-16-21G elbow 16 mm G 1/2 BSP 7/8-14 JIC FOR
CO-16-3/4BSP S600-16-26G elbow 16 mm G 3/4 BSP 7/8-14 JIC FOR
CO-16-3/8 S600-16-17G elbow 16 mm G 3/8 BSP 7/8-14 JIC FOR
CO-16-5/8 S600-16-22G elbow¤ 16 mm G 5/8 BSP 7/8-14 JIC FOR
CO-20-1 S600-20-33G elbow 20 mm G 1 BSP 1.1/16-12 JIC FOR
CO-20-1/2 S600-20-21G elbow 20 mm G 1/2 BSP 1.1/16-12 JIC FOR
CO-20-3/4 S600-20-26G elbow 20 mm G 3/4 BSP 1.1/16-12 JIC FOR
CO-25-1 S600-25-33G elbow 25 mm G 1 BSP 1.5/16-12 JIC FOR
CO-25-3/4 S600-25-26G elbow 25 mm G 3/4 BSP 1.5/16-12 JIC FOR
CO-32-1 S600-30-33G elbow 32 mm G 1 BSP 1.5/8-12 JIC FOR
CO-32-1.1/4 S600-30-42G elbow 32 mm G 1.1/4 BSP 1.5/8-12 JIC FOR
CO-38-1.1/2 S600-38-48G elbow 38 mm G 1.1/2 BSP 1.7/8-12 JIC FOR
CO-38-1.1/4 S600-38-42G elbow 38 mm G 1.1/4 BSP 1.7/8-12 JIC FOR
Angle
90
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Material
Steel
Surface treatment
Electro-galvanized / White chromatized
