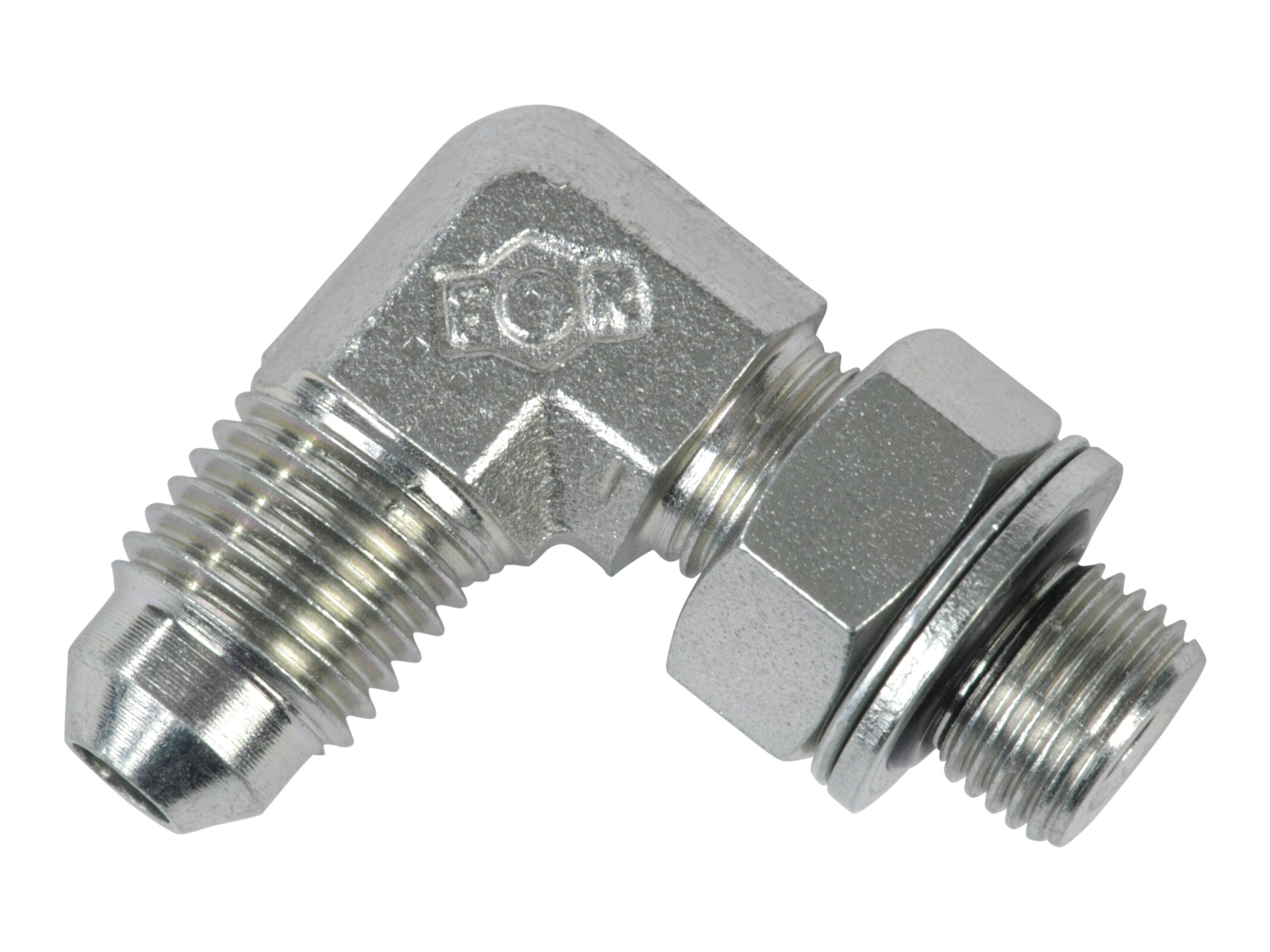

S600-06-10G elbow
-
JIC 37° 90° directional basic connector
- External thread (BSPP)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Artikelnummer:
CO-06-1/8
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Angle
90 °
B
22,5 mm
Brand Name
FOR
C
26,5 mm
CH
14 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
6 mm
F
G 1/8 BSP
J
7/16-20 JIC
Material
Steel
Pressure max.
250 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
T
6 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
7/16-20 JIC
Thread outer
G 1/8 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704334273820
Bruttovikt
0,03 Kg
Nettovikt
0,03 Kg
Ursprungsland
ITA
Intrastat artikelkod
73071110
-
JIC 37° 90° directional basic connector
- External thread (BSPP)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
