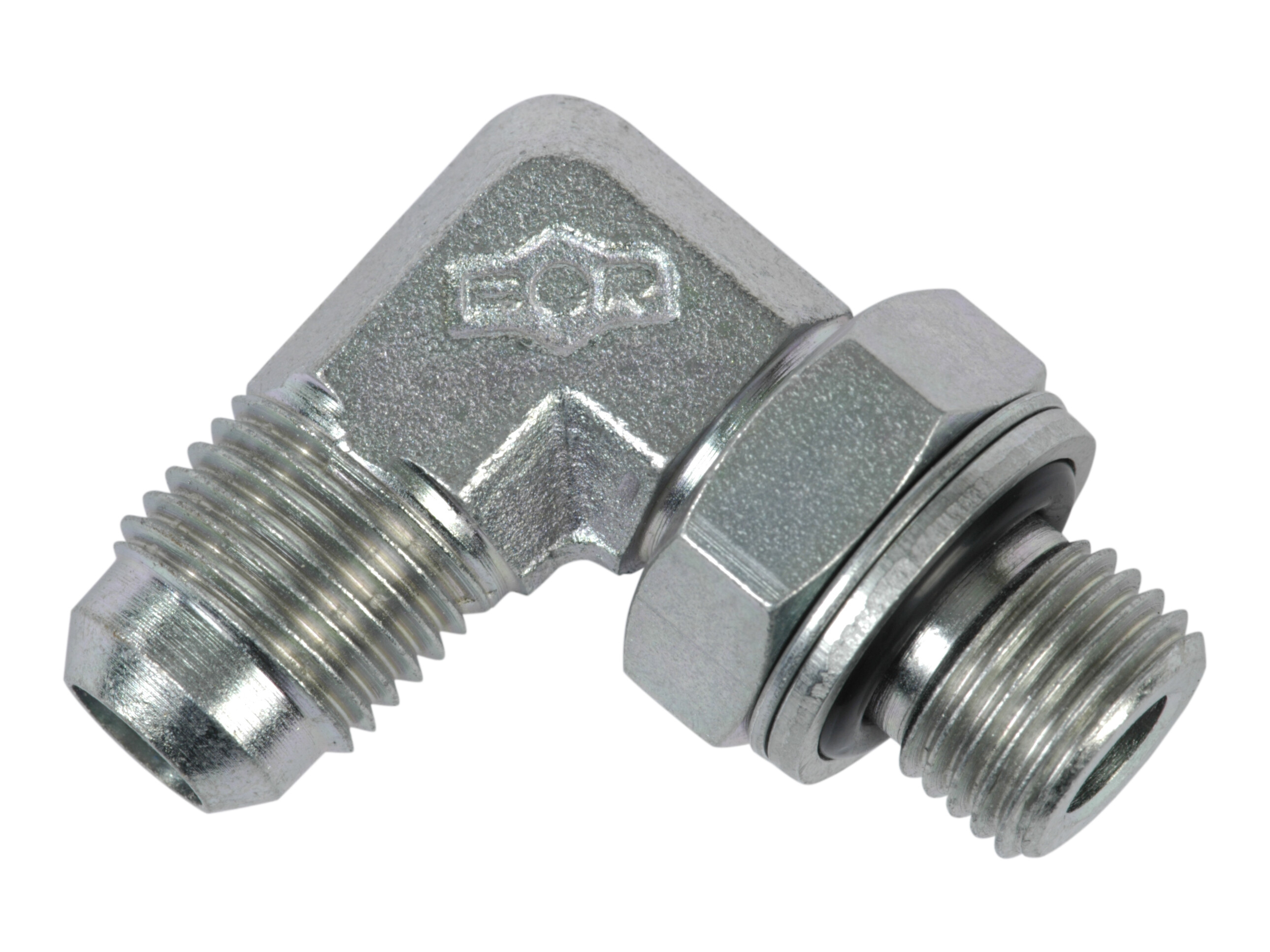

Adjustable Elbow 90° - 9/16-JIC x 1/4" BSP
\ufeff
-
JIC 37° 90° directional basic connector
- External thread (BSPP)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Artikelnummer:
CO-10-1/4
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Angle
90 °
B
27 mm
Brand Name
FOR
C
31,5 mm
CH
19 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
10 mm
F
G 1/4 BSP
J
9/16-18 JIC
Material
Steel
Pressure max.
250 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro-galvanized / White chromatized
T
10 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
9/16-18 JIC
Thread outer
G 1/4 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704295980621
Bruttovikt
0,06 Kg
Nettovikt
0,06 Kg
Ursprungsland
ITA
Intrastat artikelkod
73071110
\ufeff
-
JIC 37° 90° directional basic connector
- External thread (BSPP)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
