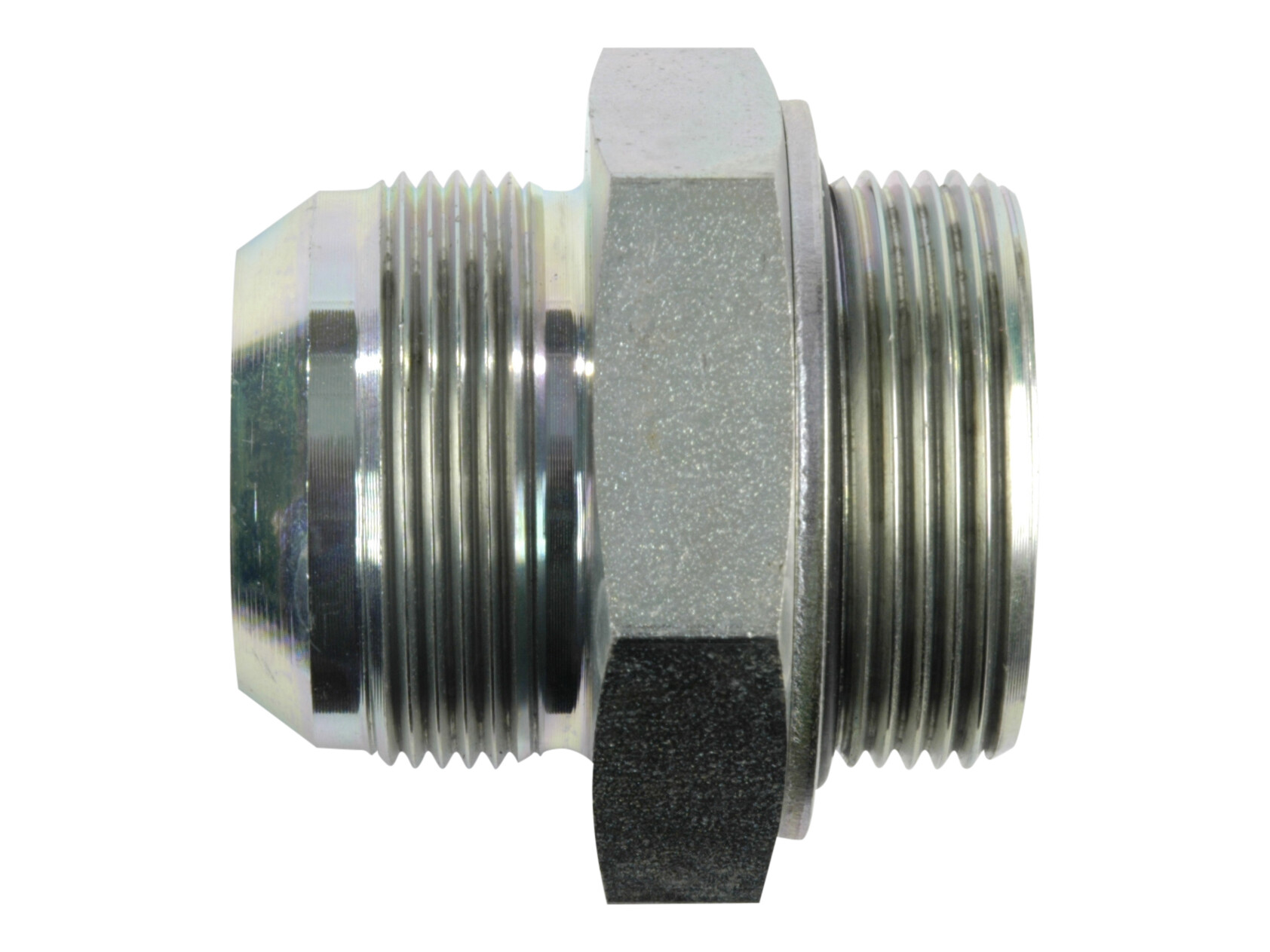

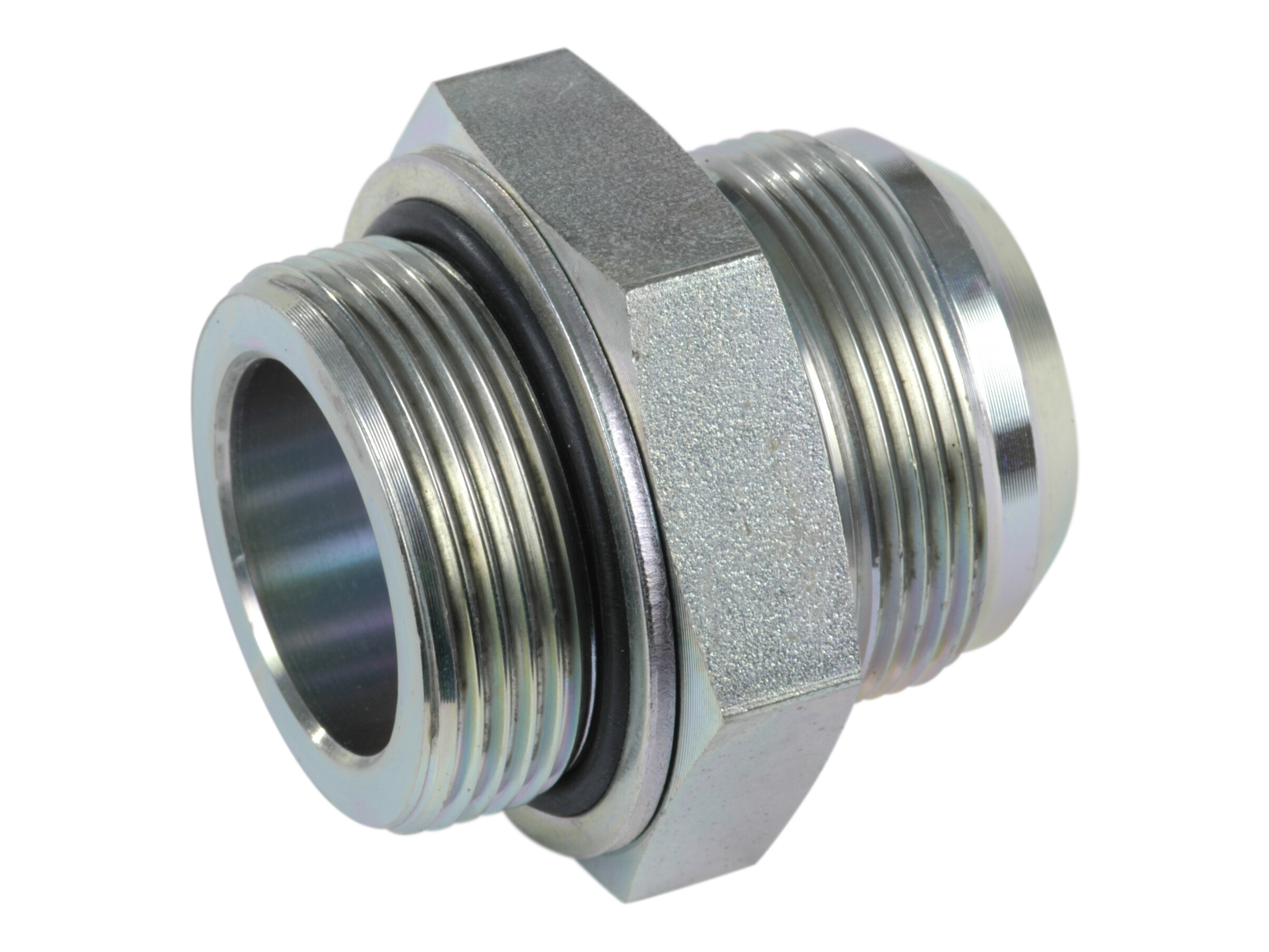

Indskruning 1.7/8-12 JIC udv x 1.1/2 BSP udv
Indskruning 1.7/8-12 JIC udv x 1.1/2 BSP udv
Partnumber:
M-38-1.1/2
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
38 mm
Dimension A
65.5 mm
Dimension B
27.5 mm
Dimension CH
60 mm
Dimension D
19.5 mm
Dimension F
G 1.1/2 BSP
Dimension J
1.7/8-12 JIC
Dimension T
38 mm
Material
Stål
Pressure max.
250 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread
G 1.1/2 BSP
Thread outer
1.7/8-12 JIC
Thread outer
G 1.1/2 BSP
Package size
0 pcs
Barcode
5704334395041
Gross weight
0,55 Kg
Net weight
0,55 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 1.7/8-12 JIC udv x 1.1/2 BSP udv
Note: Opening 3D files requires a program that supports the file format
