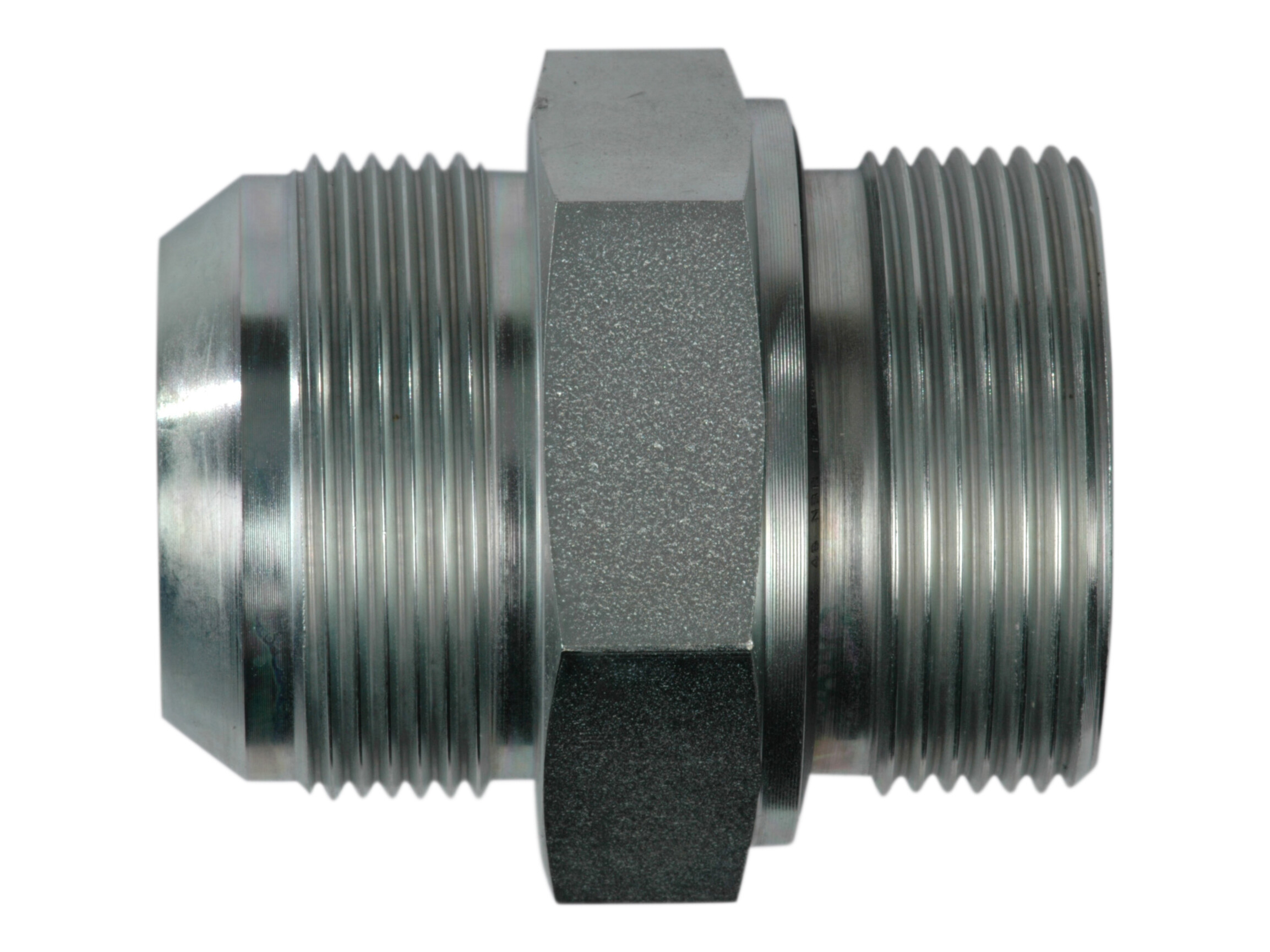

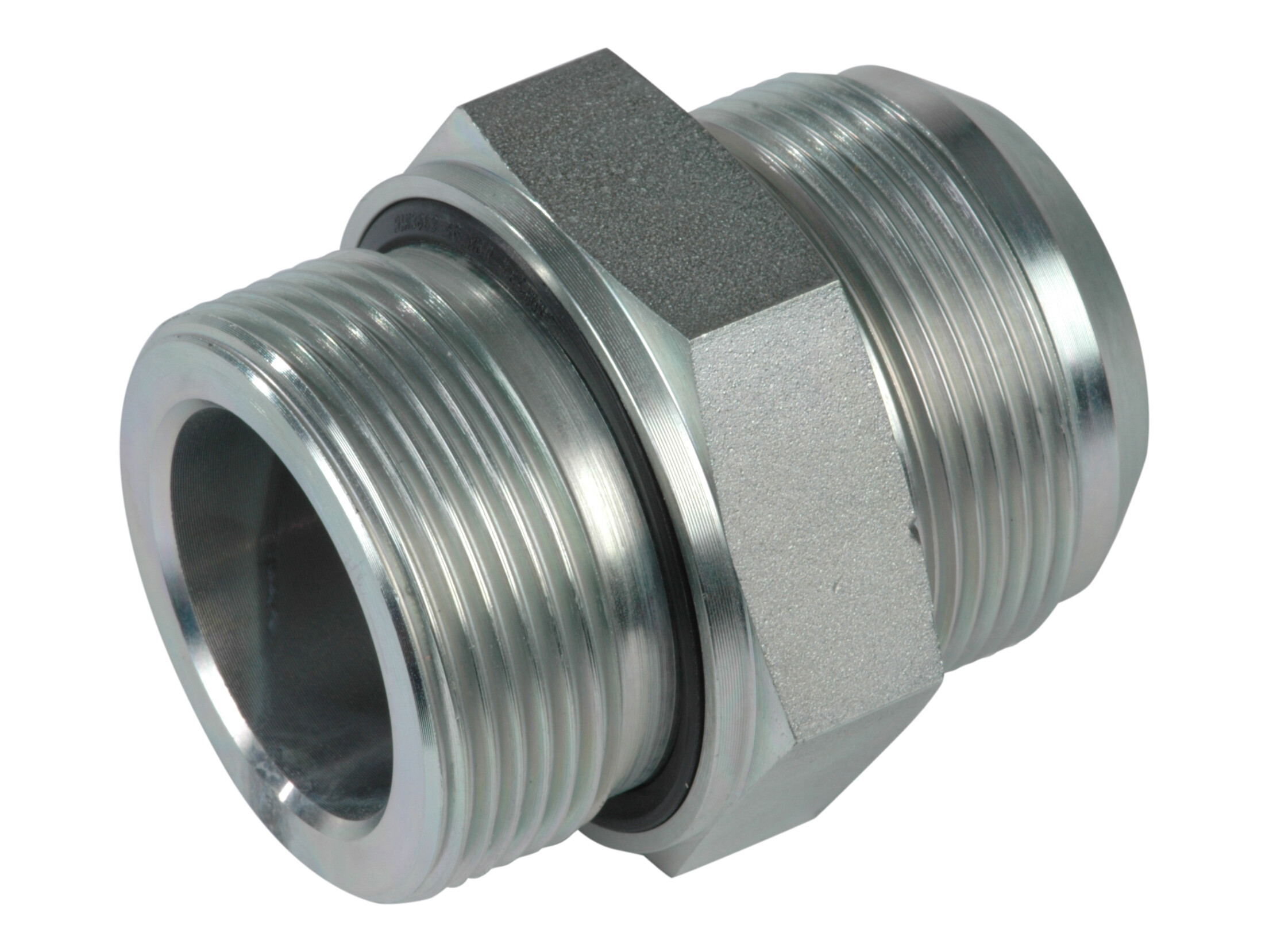

Indskruning 1.7/8-12 JIC udv x 1.1/2 BSP udv med WD pakning
Indskruning 1.7/8-12 JIC udv x 1.1/2 BSP udv med WD pakning
Partnumber:
M-38-1.1/2WD
Package size:
0 stk
Min. order quantity is:
1 stk
A
68 mm
Angle
0 °
B
27,5 mm
Brand Name
FOR
CH
55 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
22 mm
Diameter pipe
38 mm
F
G 1.1/2 BSP
J
1.7/8-12 JIC
Material
Stål
Pressure max.
250 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
El-forzinket / hvidkromatiseret
T
38 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread
G 1.1/2 BSP
Thread outer
1.7/8-12 JIC
Thread outer
G 1.1/2 BSP
Package size
0 stk
Barcode
5704295496597
Gross weight
0,53 Kg
Net weight
0,53 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 1.7/8-12 JIC udv x 1.1/2 BSP udv med WD pakning
Note: Opening 3D files requires a program that supports the file format
