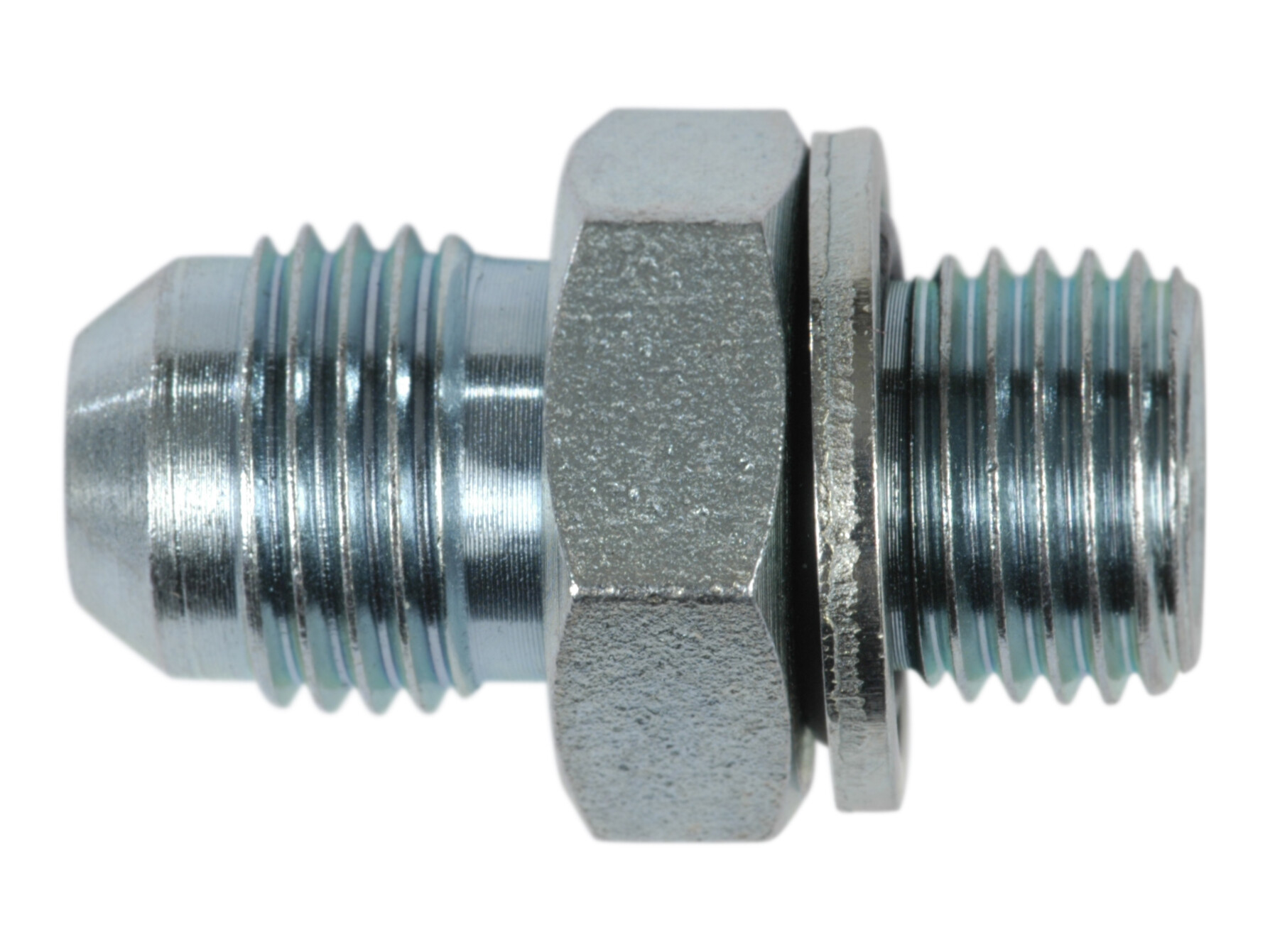

Indskruning 9/16-18 JIC udv x 1/4 BSP udv NW19

Indskruning 9/16-18 JIC udv x 1/4 BSP udv NW19

Partnumber:

M-10-1/4

Package size:

0 pcs

Min. order quantity is:

1 pcs

Tilbehør (1)

Støttering Ø10

Partnumber: B-10

Specifications
Dimensions and shipping

Diameter rør

10 mm

Dimension A

34.5 mm

Dimension B

14 mm

Dimension CH

19 mm

Dimension D

10 mm

Dimension F

G 1/4 BSP

Dimension J

9/16-18 JIC

Dimension T

10 mm

Gevind

G 1/4 BSP

Gevind udvendig

9/16-18 JIC

Gevind udvendig

G 1/4 BSP

Korrosions resistens

1400 hours salt spray DIN EN ISO 9227

Materiale

Stål

Model kode

A102023/1013

Mærke navn

FOR

Overfladebehandling

El-forzinket / hvidkromatiseret

Tryk maks.

350 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704334235347

Gross weight

0,03 Kg

Net weight

0,03 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Indskruning 9/16-18 JIC udv x 1/4 BSP udv NW19

Note: Opening 3D files requires a program that supports the file format
