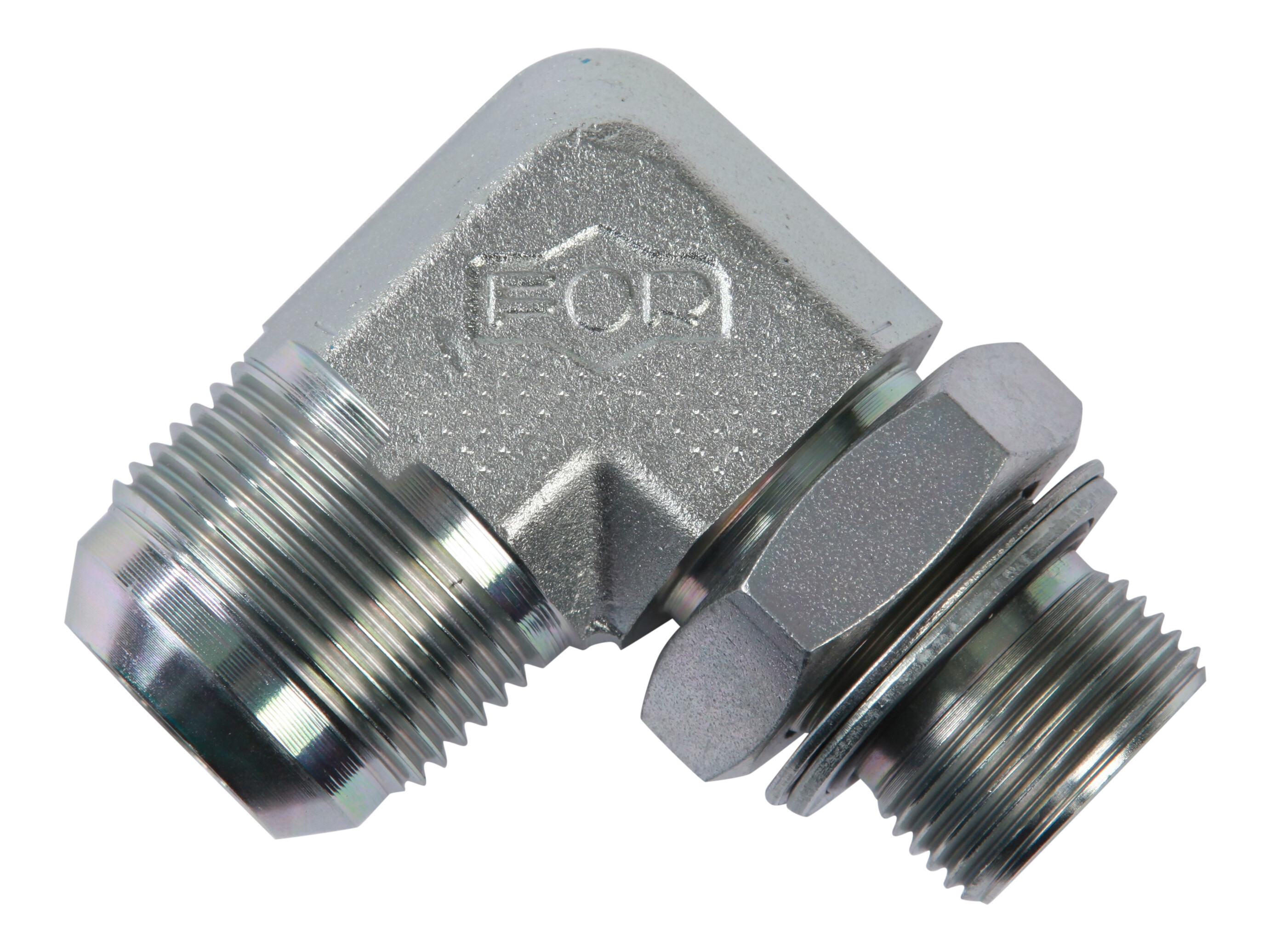

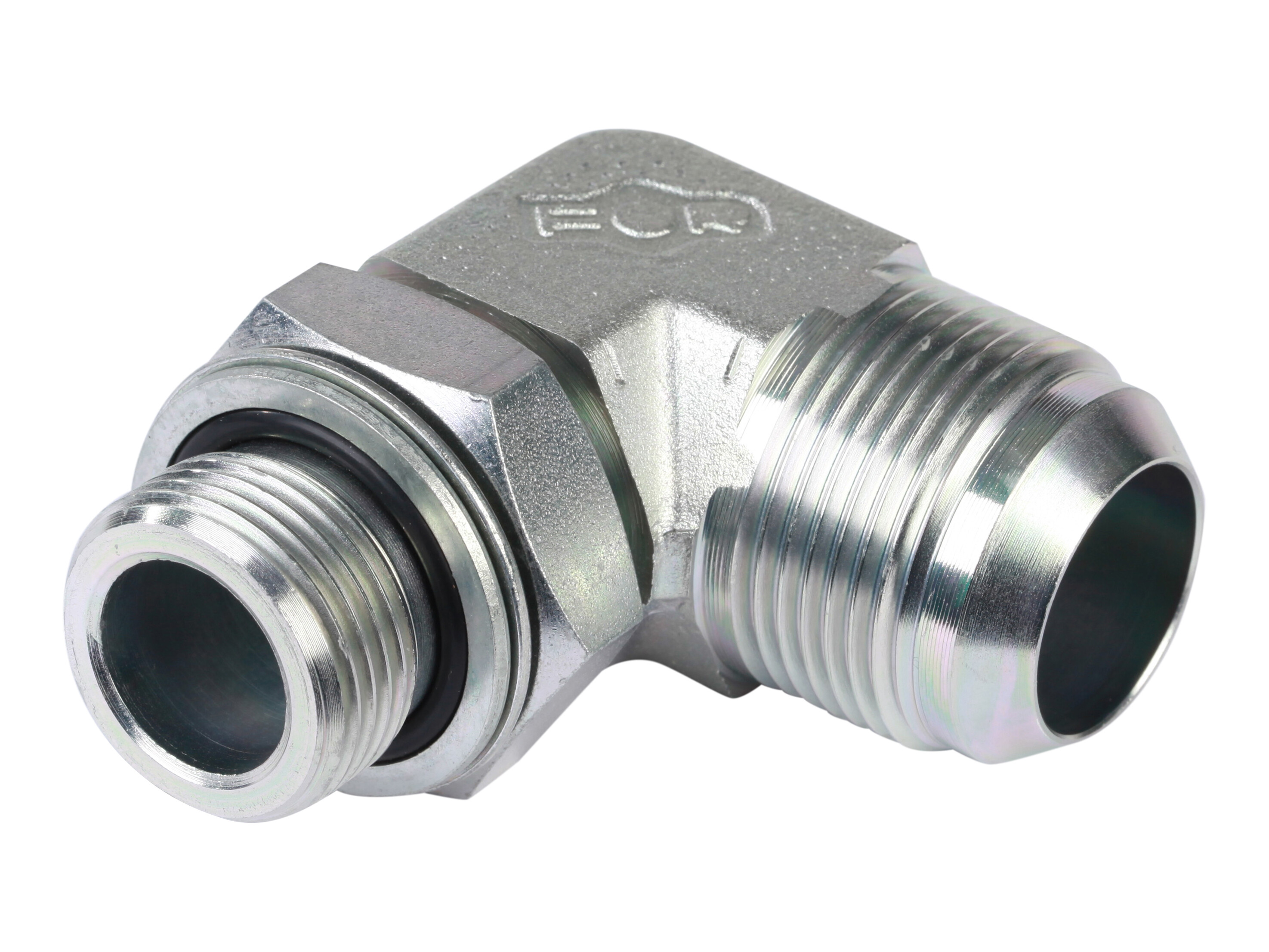

Vinkelindskruning 90 gr 1.5/16-12 JIC udv x 3/4 BSP udv
Vinkelindskruning 90 gr 1.5/16-12 JIC udv x 3/4 BSP udv
Partnumber:
CO-25-3/4
Package size:
0 stk
Min. order quantity is:
1 stk
Angle
90 °
B
46 mm
Brand Name
FOR
C
52,5 mm
CH
36 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
25 mm
F
G 3/4 BSP
J
1.5/16-12 JIC
Material
Stål
Pressure max.
250 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
El-forzinket / hvidkromatiseret
T
25 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
1.5/16-12 JIC
Thread outer
G 3/4 BSP
Package size
0 stk
Barcode
5704334358091
Gross weight
0,41 Kg
Net weight
0,41 Kg
Country of origin
ITA
Intrastat code
73071110
Vinkelindskruning 90 gr 1.5/16-12 JIC udv x 3/4 BSP udv
Note: Opening 3D files requires a program that supports the file format
