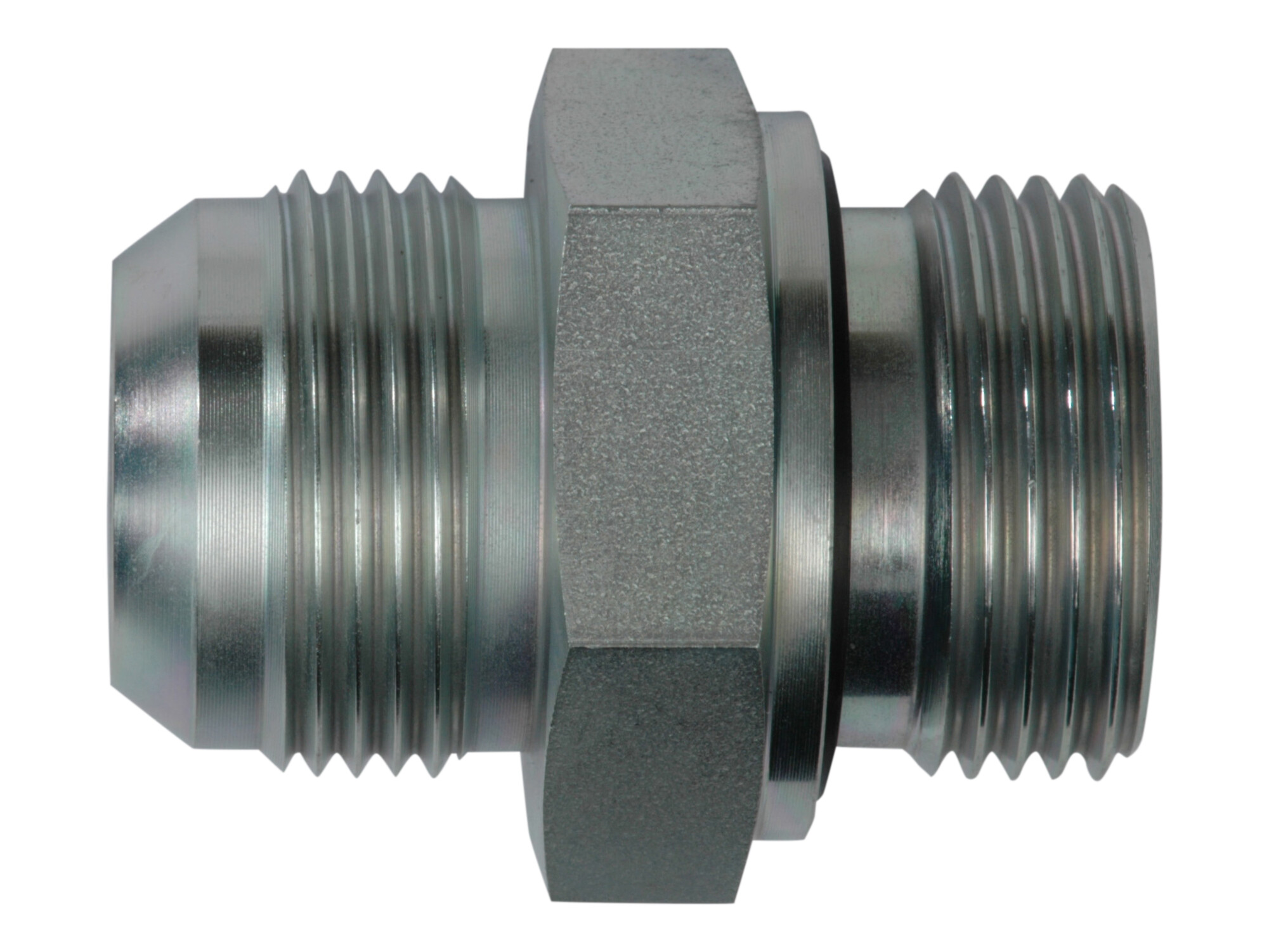

Indskruning 1.5/16-12 JIC udv x 1 BSP udv med WD pakning

Indskruning 1.5/16-12 JIC udv x 1 BSP udv med WD pakning

Artikelnummer:

M-25-1WD

Förpackningsstorlek:

0 pcs

Minsta beställningskvantitet:

1 pcs

Tilbehør (2)

Bushing

Partnumber: B-25

Nut 1.5/16-12 JIC

Partnumber: J-25

Specifications
Dimensions and shipping

56 mm

Angle

0 °

23 mm

Brand Name

FOR

41 mm

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

18 mm

Diameter pipe

25 mm

G 1 BSP

1.5/16-12 JIC

Material

Stål

Pressure max.

290 bar

Sealing material

NBR

Standard ISO

ISO 1179

Surface treatment

El-forzinket

25 mm

Temperature max.

+120 °C

Temperature min.

-20 °C

Thread

G 1 BSP

Thread outer

1.5/16-12 JIC

Thread outer

G 1 BSP

Package size

0 pcs

Barcode

5704295496566

Gross weight

0,23 Kg

Net weight

0,23 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Indskruning 1.5/16-12 JIC udv x 1 BSP udv med WD pakning
