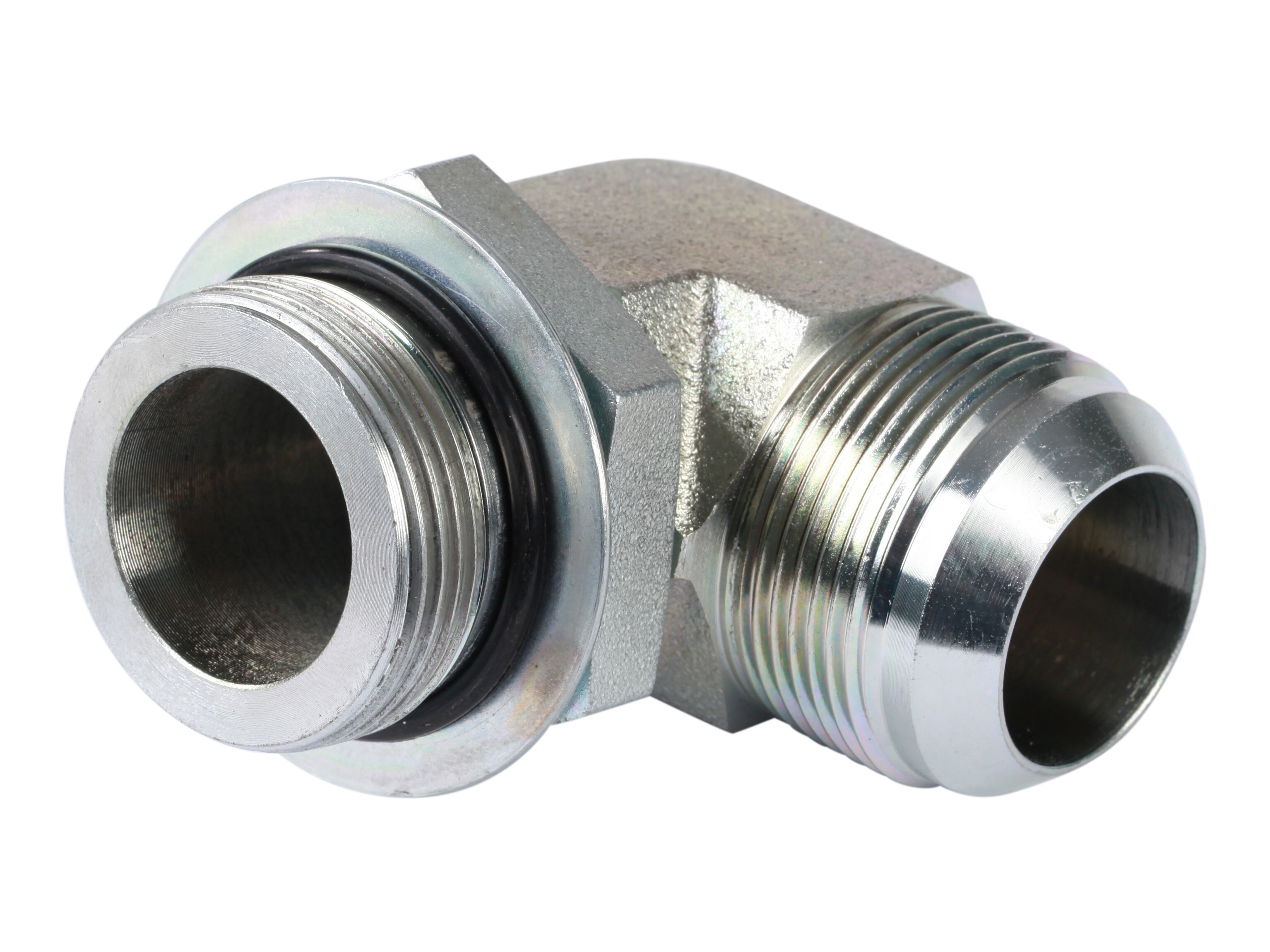

Vinkelindskruning 90 gr 1.5/8-12 JIC udv x 1.5/8-12 JIC udv
Vinkelindskruning 90 gr 1.5/8-12 JIC udv x 1.5/8-12 JIC udv NW50
Partnumber:
CO-32-1.5/8
Package size:
0 stk
Min. order quantity is:
1 stk
Angle
90 °
B
52 mm
Brand Name
FOR
C
57 mm
CH
50 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
30-32 mm
F
1.5/8-12 UNF
J
1.5/8-12 JIC
Material
Stål
Model code
A107028/3241
Pressure max.
280 bar
Sealing material
NBR
Standard ISO
ISO 11926
Surface treatment
El-forzinket / hvidkromatiseret
T
30-32 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
1.5/8-12 JIC
Thread outer
1.5/8-12 UNF
Package size
0 stk
Barcode
5704334358138
Gross weight
0,69 Kg
Net weight
0,69 Kg
Country of origin
ITA
Intrastat code
73071110
Vinkelindskruning 90 gr 1.5/8-12 JIC udv x 1.5/8-12 JIC udv NW50
Note: Opening 3D files requires a program that supports the file format
