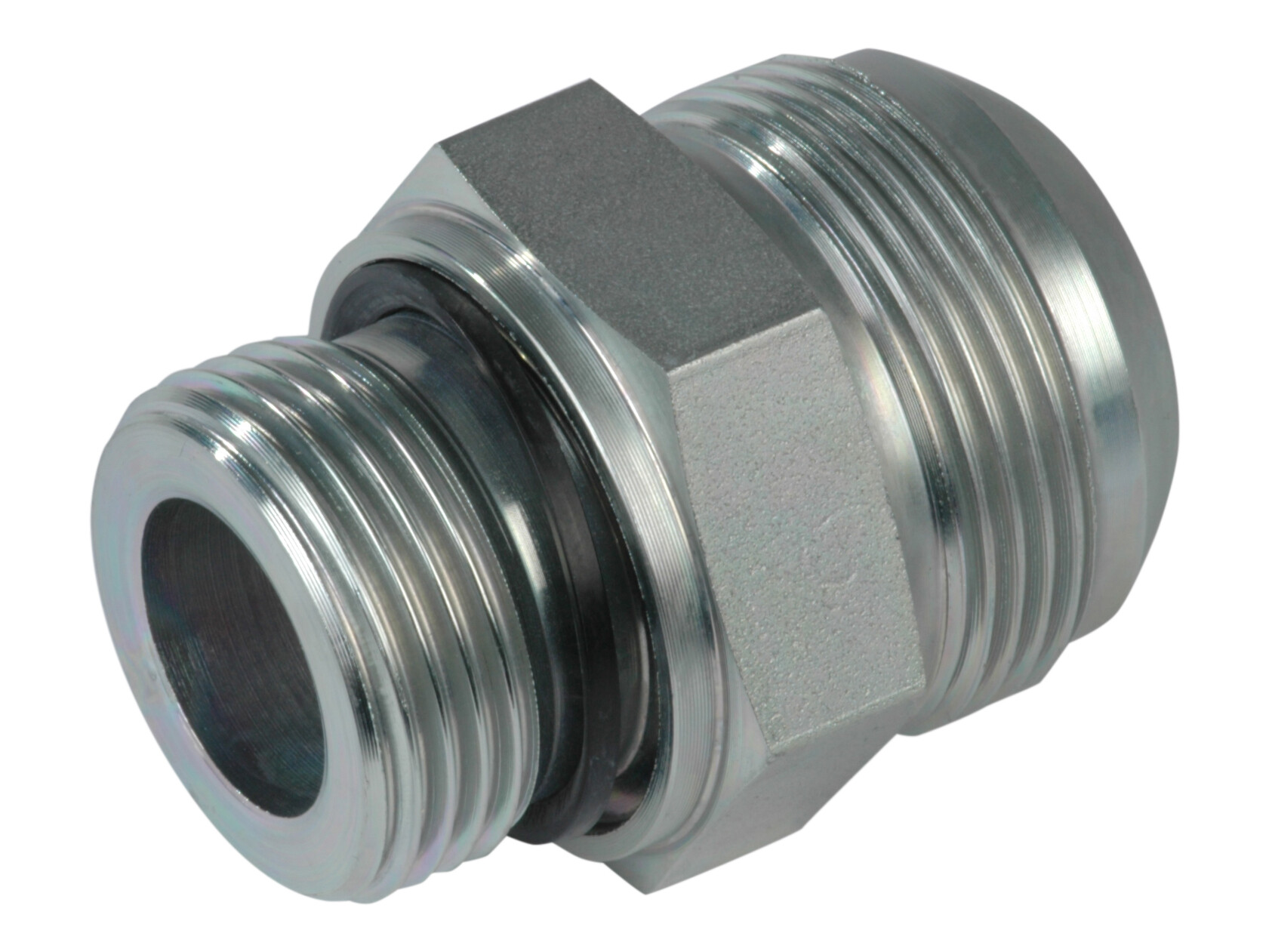

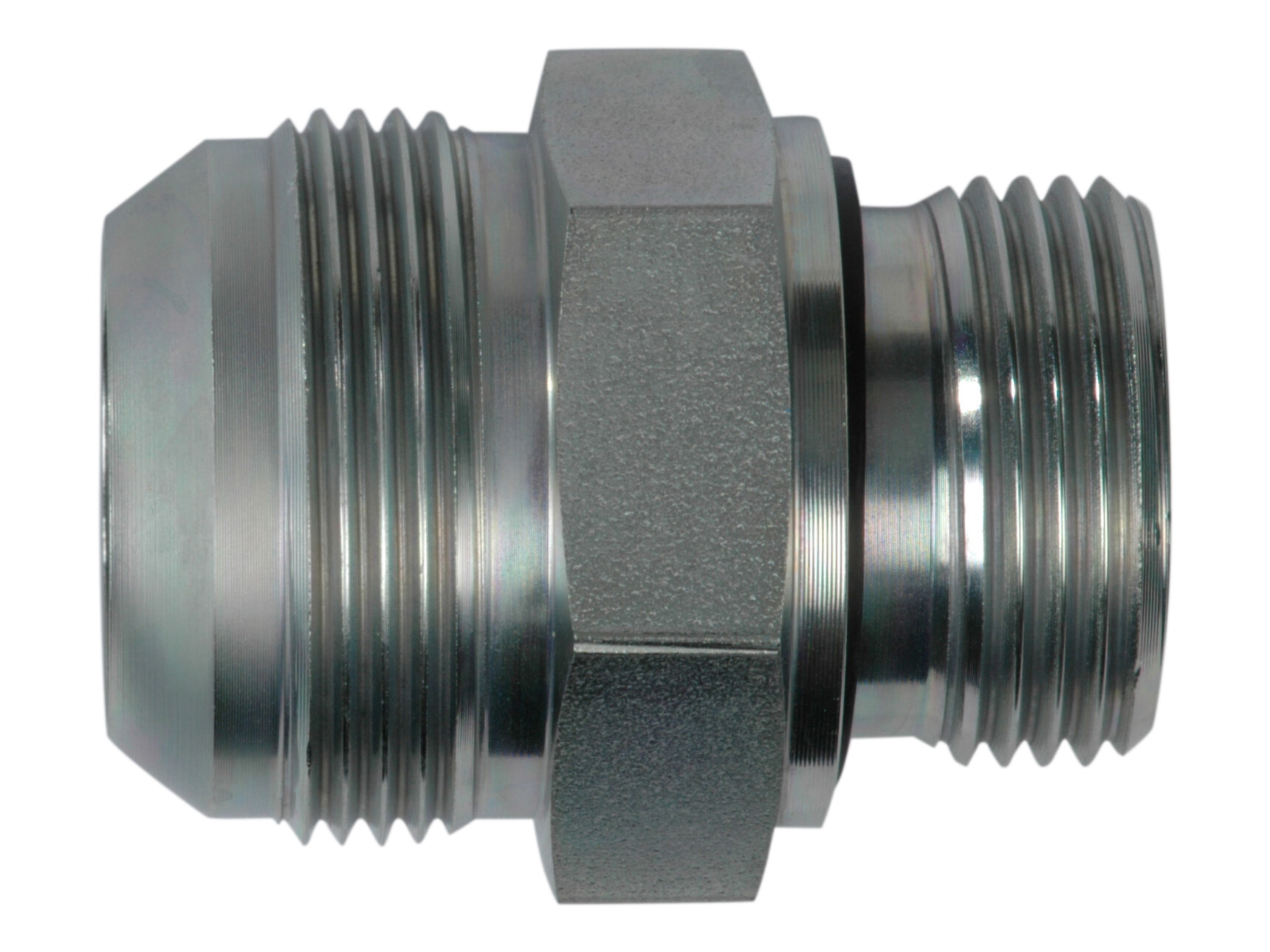

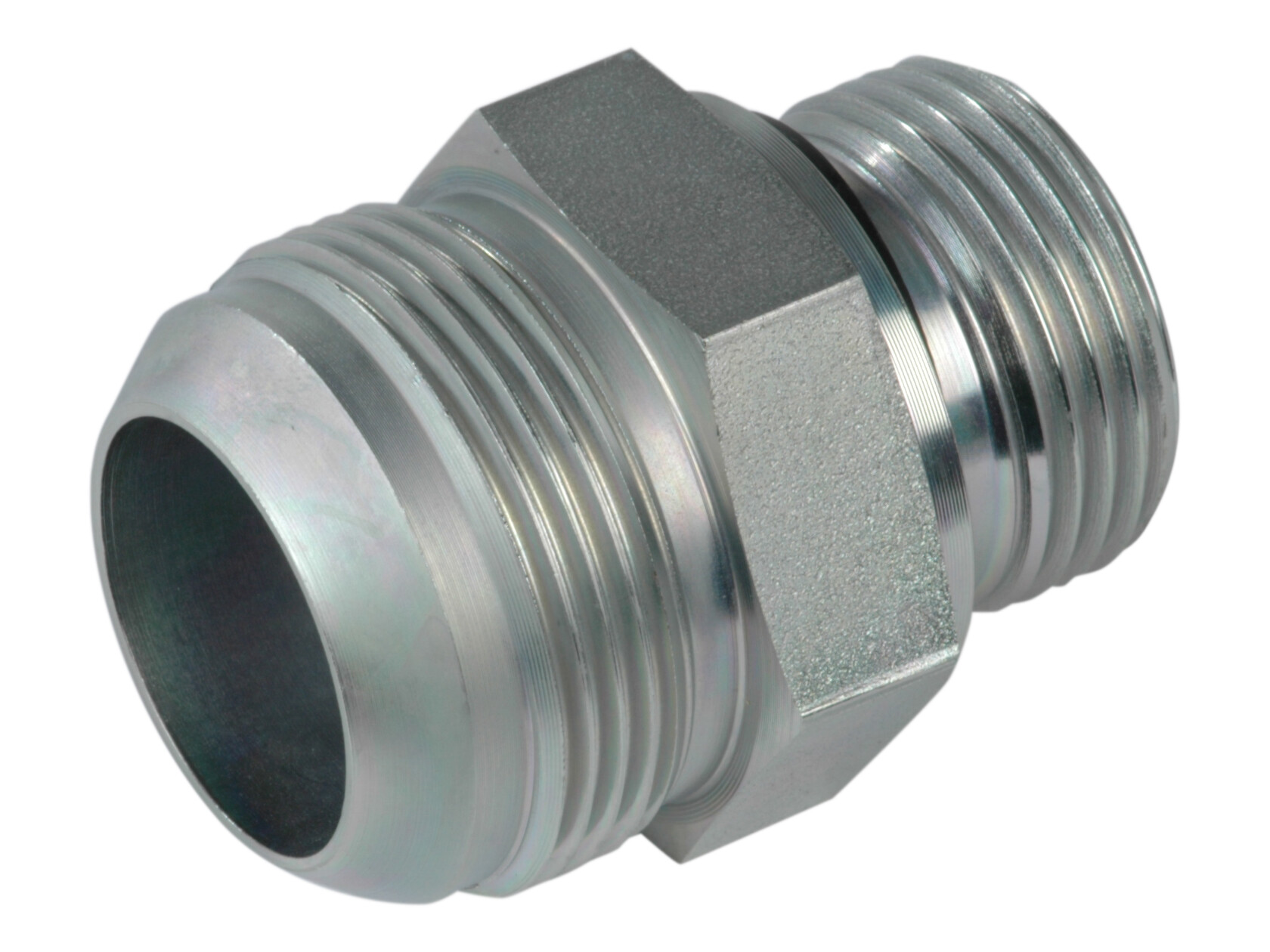

Indskruning 1.5/8-12 JIC udv x 1 BSP udv med WD pakning

Indskruning 1.5/8-12 JIC udv x 1 BSP udv med WD pakning

Partnumber:

M-32-1WD

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

58 mm

24,5 mm

46 mm

18 mm

Diameter rör

32 mm

G 1 BSP

Gänga

G 1 BSP

Gänga utv.

1.5/8-12 JIC

Gänga utv.

G 1 BSP

1.5/8-12 JIC

Märke namn

FOR

Packningsmaterial

NBR

Rostbeständighet

1400 hours salt spray DIN EN ISO 9227

Standard ISO

ISO 1179

30-32 mm

Temperatur max.

+120 °C

Temperatur min.

-20 °C

Tillverkningsmaterial

Stål

Tryck max.

240 bar

Vinkel

0 °

Ytskiktbehandling

El-forzinket

Package size

0 pcs

Barcode

5704295496580

Gross weight

0,32 Kg

Net weight

0,32 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Indskruning 1.5/8-12 JIC udv x 1 BSP udv med WD pakning

Note: Opening 3D files requires a program that supports the file format
