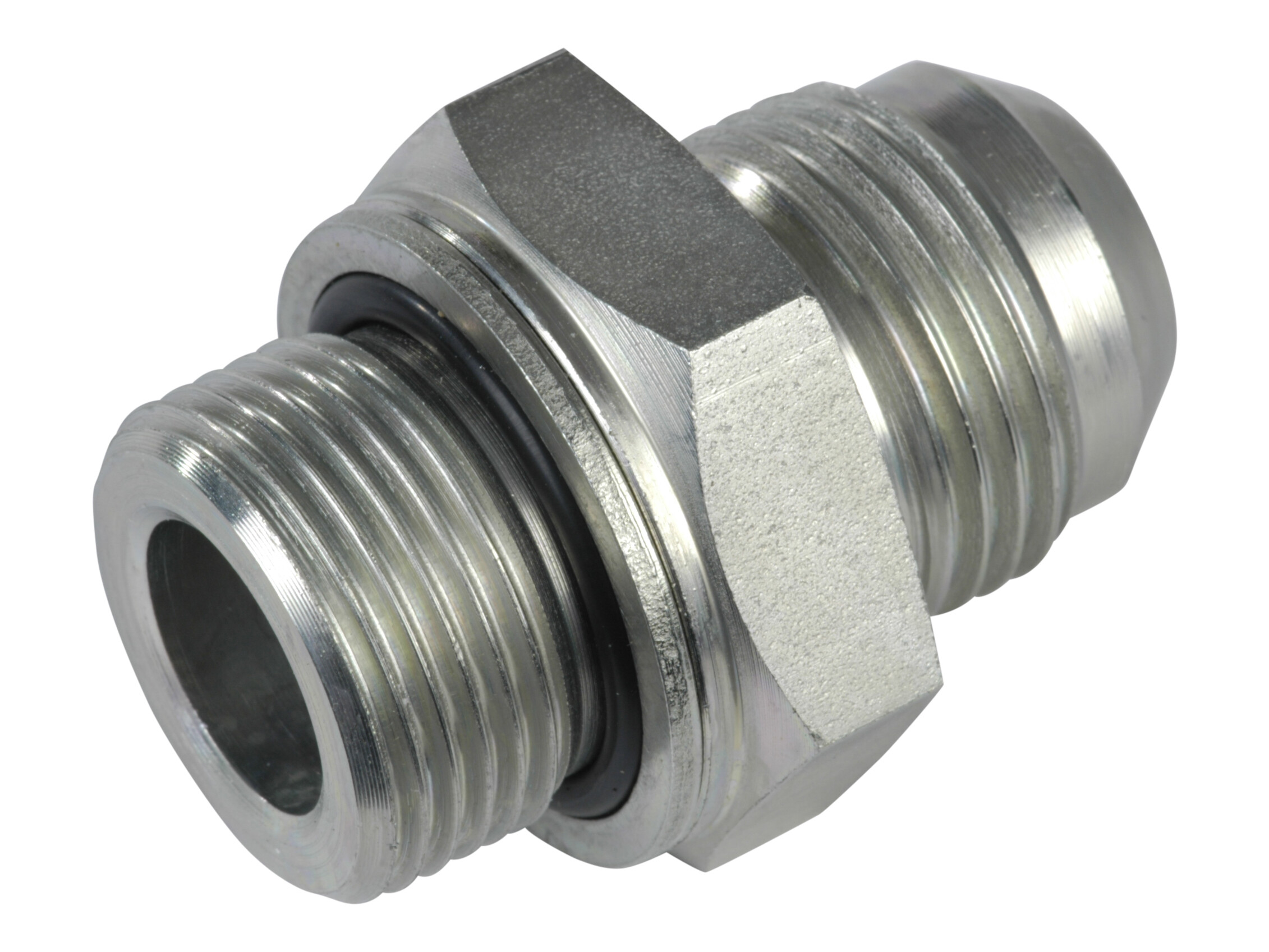

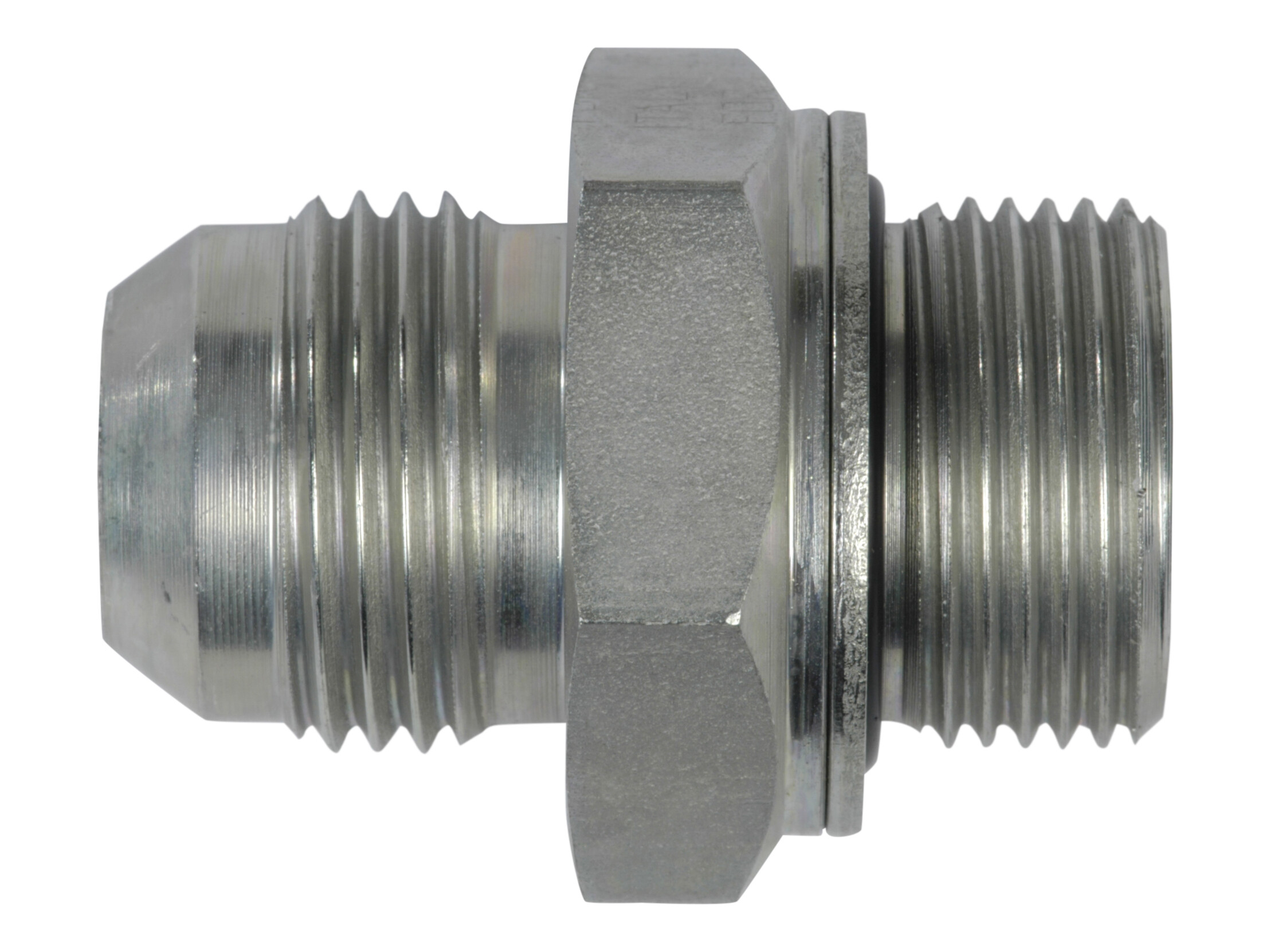

S230-20-26G adaptor BSP
\ufeff
-
JIC 37° straight basic connector
- External thread (BSPP)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Varenummer:
M-20-3/4
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
A
50 mm
Angle
0 °
B
22 mm
Brand Name
FOR
CH
36 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
14 mm
Diameter pipe
18-20 mm
F
G 3/4 BSP
J
1.1/16-12 JIC
Material
Steel
Pressure max.
300 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
T
20 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread
G 3/4 BSP
Thread outer
1.1/16-12 JIC
Thread outer
G 3/4 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704334308850
Bruttovikt
0,17 Kg
Nettovikt
0,17 Kg
Ursprungsland
ITA
Intrastat artikelkod
73071110
\ufeff
-
JIC 37° straight basic connector
- External thread (BSPP)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Obs: För att öppna 3D-filer krävs ett program som stöder filformatet
