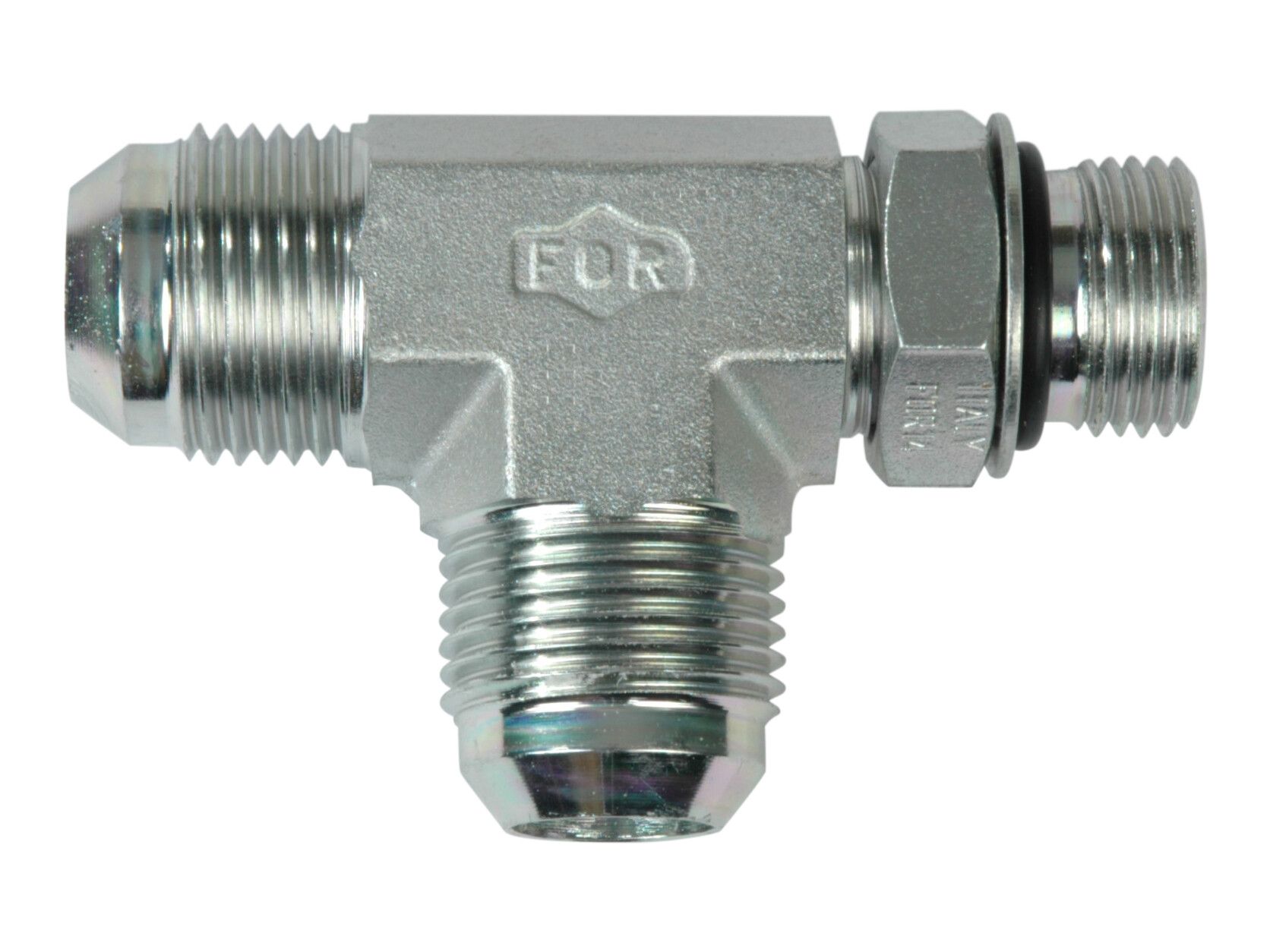

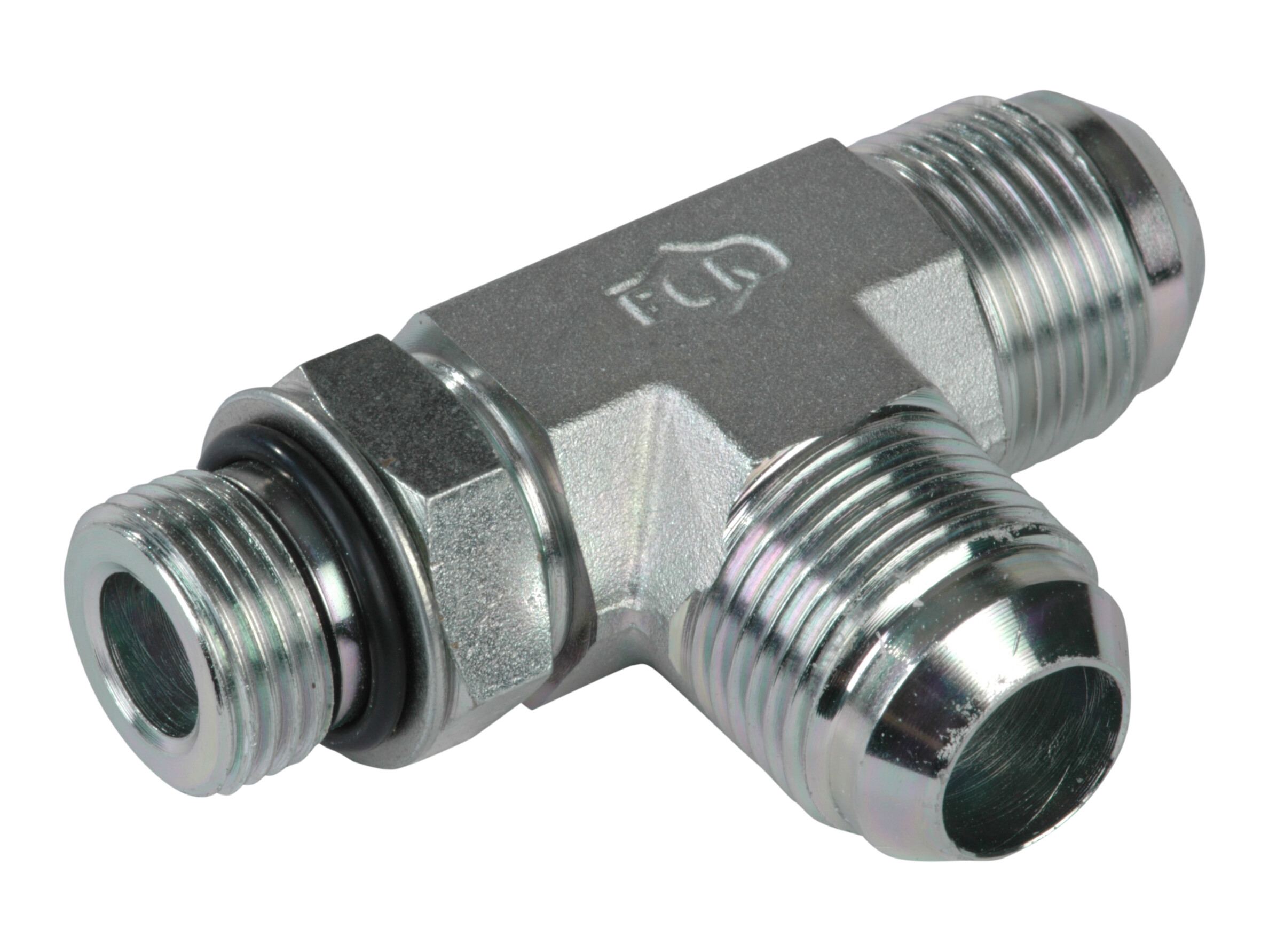

S580-20-22U barrel Tee UNF
S580-20-22U barrel Tee UNF
Partnumber:
TOD-20-7/8
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
20 mm
Dimension B
42 mm
Dimension B1
42 mm
Dimension C
45.5 mm
Dimension CH
27 mm
Dimension F
1.7/8-12 UNF
Dimension J
1.1/16-12 JIC
Dimension J1
1.1/16-12 JIC
Dimension T
20 mm
Dimension T1
20 mm
Material
Steel
Pressure max.
300 bar
Surface treatment
Electro-galvanized / White chromatized
Thread outer
1.1/16-12 JIC
Thread outer
1.7/8-12 UNF
Förpackningsstorlek
0 pcs
Streckkod
5704334033141
Bruttovikt
0,32 Kg
Nettovikt
0,32 Kg
Ursprungsland
ITA
Intrastat artikelkod
73071110
S580-20-22U barrel Tee UNF
Obs: För att öppna 3D-filer krävs ett program som stöder filformatet
